Page 35

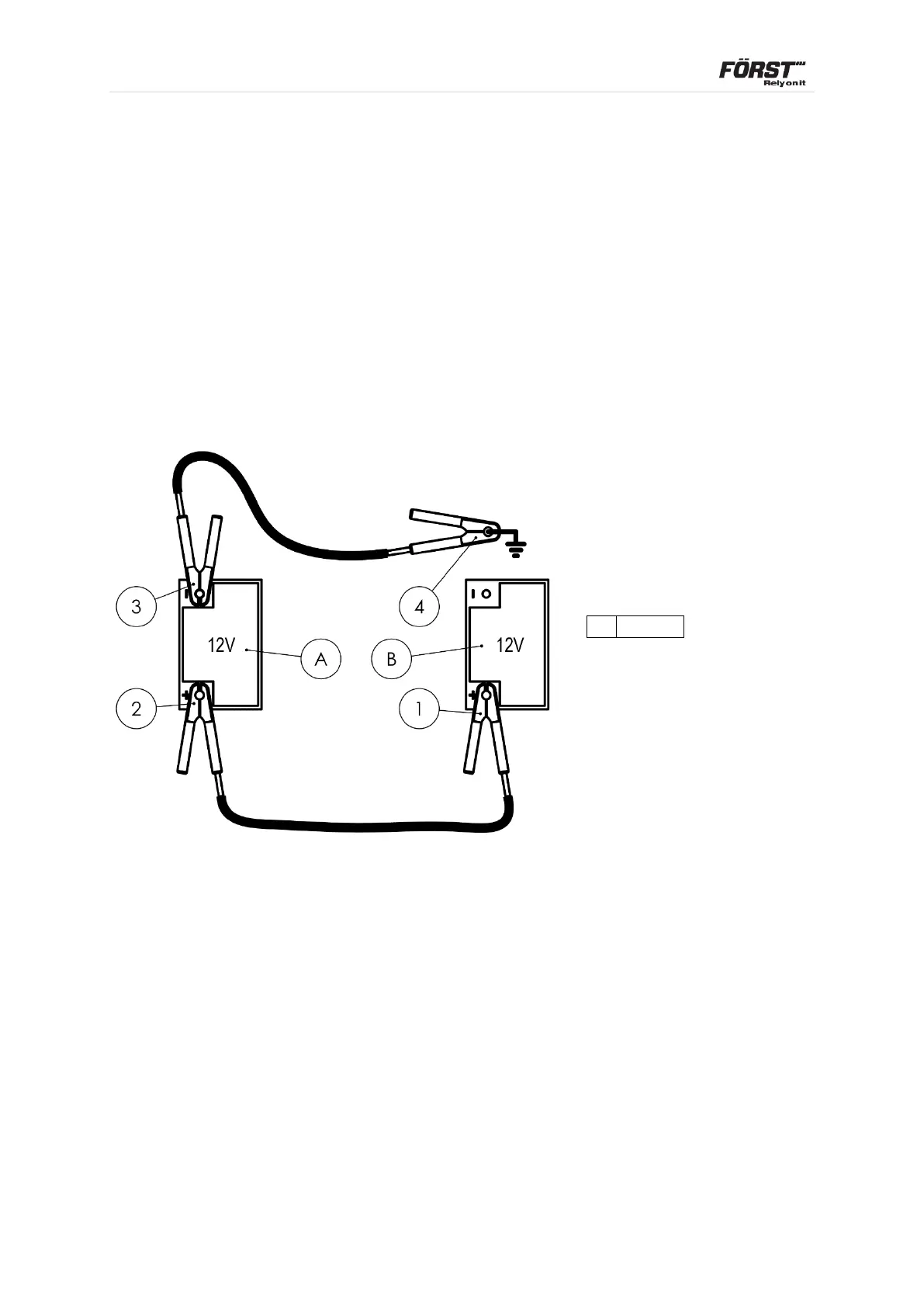

Connect in the sequence of 1 – 2 – 3 – 4 as shown and as follows: Connect
one end of the red jump lead to the machine battery positive (+) terminal.
4. Connect the other end of the red jump lead to the support vehicle battery
positive (+) terminal.
5. Connect one end of the black jump lead to the support vehicle battery
negative (-) terminal.
6. Connect other end of the black jump lead to a machine metal part away from
the battery e.g. onto the engine from under the chassis.
7. Make sure that the jump leads will not come into contact with moving parts.
8. Start the support vehicle engine and run at a medium idle speed for 15
seconds.
9. Start machine and run for 15 seconds.
10. Disconnect jump leads in the reverse order 4 – 3 – 2 – 1.
5.11.7 Taking battery out of service
1. Charge the battery and store in a cool but frost-free place or on the vehicle
with the negative terminal disconnected.
2. Check the battery charge at regular intervals. Recharge if necessary.
