Page 48
6.13 Running gear – hitch & axle
Please refer to maintenance instruction manual supplied with the machine.
Checking the internal diameter of the wheel drum for ware.

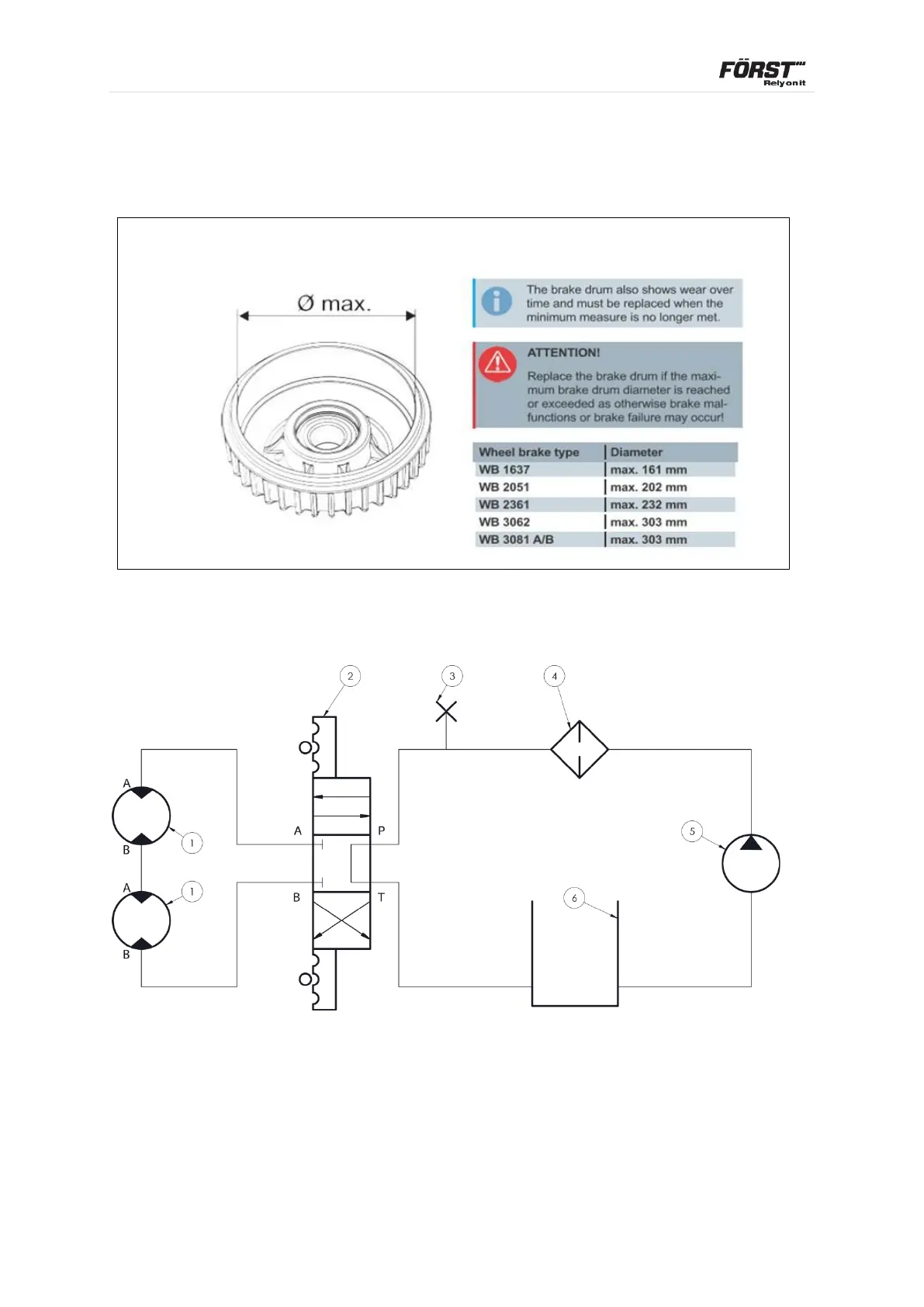

6.14 Hydraulics circuit diagram
1. Motor
2. Control Valve
3. Test point
4. Filter
5. Pump
6. Oil tank
