FORST ST8D - Parts Lists & Diagrams

Page 36
6.0 Parts Lists & Diagrams

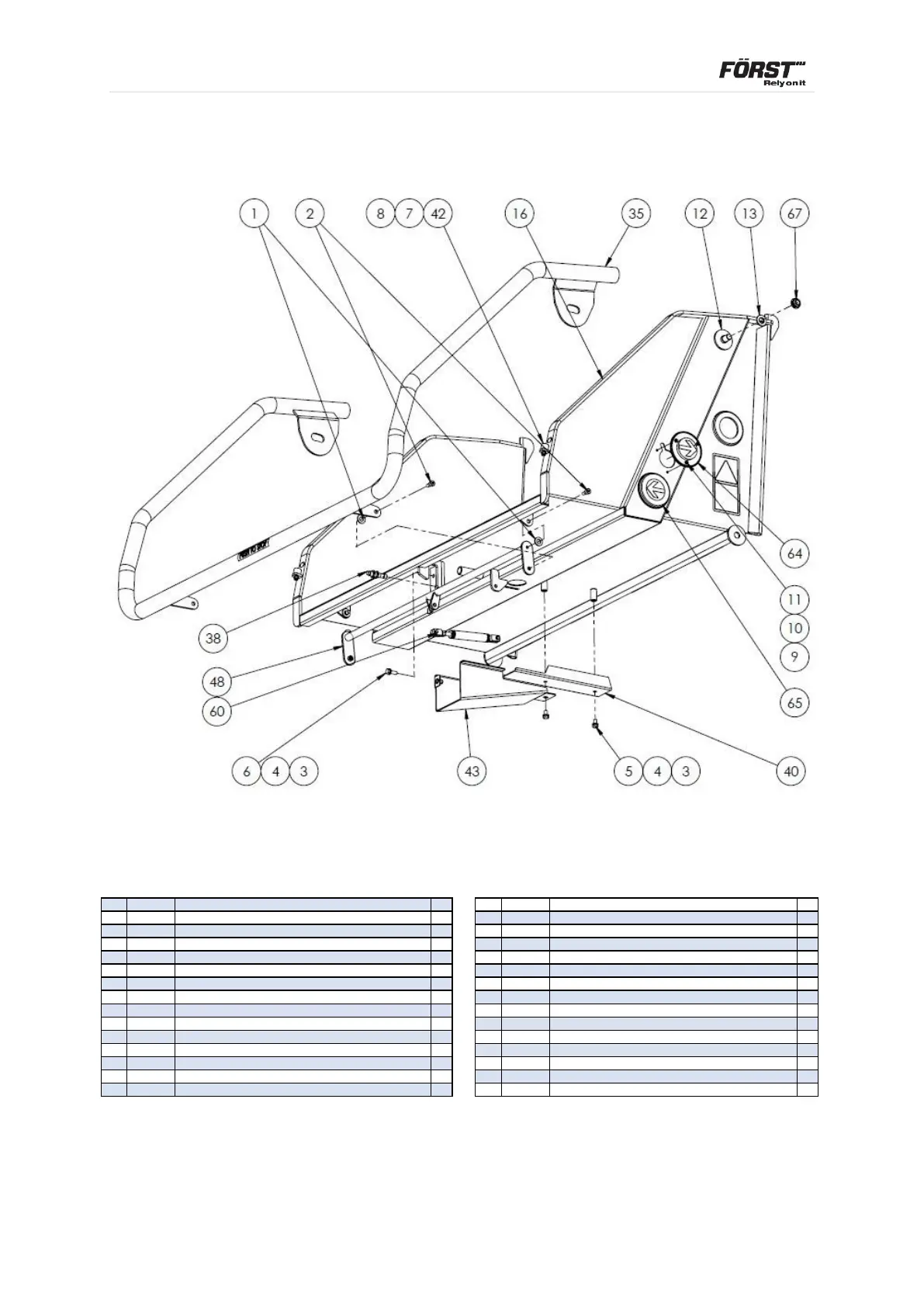

6.1 Tray & Stop Bar
Item Part No Description Qty Item Part No Description Qty
1 12-03-083 Cable cover 1 15 12-14-013 M8 washer ISO 7089 3
2 12-03-104 Trip mech guard fab assy 1 16 12-14-014 M8 Spring washer DIN 128 3
3 12-05-050 Security Nut 2 17 12-14-017 M6 washer ISO 7089 2
4 12-10-071 Inductive proximity sensor kit 1 18 12-14-020 M4 Washer 12
5 12-10-090 Buffer 15 x 20 M6 2 19 12-14-021 M4 Spring Washer 12
6 12-10-380 Captron Touch Sensor assy - (Orange Reverse < Button) 2 20 12-22-001 Loctite 222 1
7 12-10-383 Captron Touch Sensor assy - (Green Forward > Button) 2 21 12-26-002 Rotating machine parts 2
8 12-10-399 M8 x 8 Shoulder Bolt 4 22 12-26-048 Push to stop 1
9 12-12-101 M4 x 20 Pozi 12 23 12-A-061 Stop Bar Spring 1
10 12-12-401 M8 x 25 Lg 8.8 Hex Head screw 1 24 14-19-029 Sensor hopper tray fab assy 1
11 12-12-404 M8 x 16 Lg 8.8 Hex Head screw 2 25 14-19-090 8" Stop Bar - Hinged 1
12 12-13-015 M6 nyloc nut ISO 7040 2 26 14-19-091 8" Drive Bar 1
13 12-14-002 M16 Nylon Washer extra large OD 56 x 5 THK ISO 7094 2 27 24-05-011 Stop Bar Collar 2
14 12-14-005 M16 Washer ISO 7089 2 28 31-14-001 M12 Normal Nylon Washer 4
