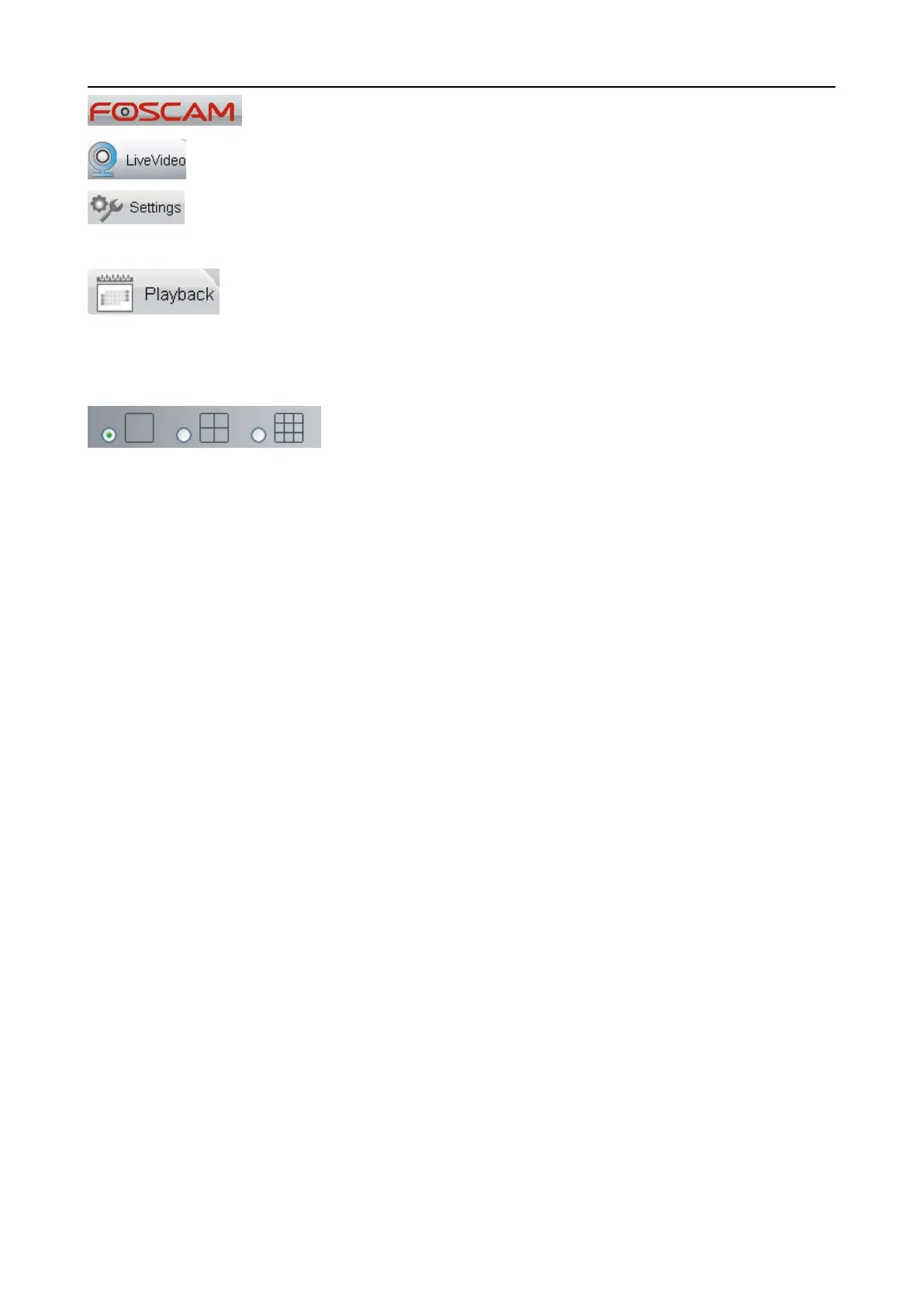

: FOSCAM LOGO
: Path to surveillance window. Click this button to go back to the surveillance window
: Path to Administrator Control Panel, Click it, to go to Administrator Control Panel and do
advanced settings.
: Click this button to go back to the Playback panel to view the stored audio files
stored in the SD Card.
Section 2 Multi-Device Window
The firmware inside the camera supports up to 9 cameras being monitored at the same time. You can
add other cameras in multi-device setting.
Section 3 Mode/ Stream / HDR / Mirror/ Flip buttons / Zoom
1) 50HZ ---------Indoor surveillance (Region: Europe, China)
2) 60HZ ---------Indoor surveillance (Region: USA, Canada)
3) Outdoor------Outdoor surveillance
The default stream supports multiple modes, For example: HD Mode/720P/23fps/2M meanings: Stream
type / Resolution / Maximum frame rate/ Bit rate. (Different models support different specific mode. )
Stream type : It is used to identify the stream type.
Resolution
The bigger the resolution, the better of the image quality is. If you are accessing the camera via
internet and want to get more fluent video streaming, please select resolution VGA.
Maximum frame rate
You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15,
you can achieve fluently video. The maximum frame rate for each model is different, please see the
“Specifications”.
Bit rate
Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate
configuration should combine well with the network bandwidth. When the bandwidth is very narrow,
and bit rate is large, that will lead to video can not play well.
You can reset the stream type on Settings-> Video-> Video Settings panel.
After changing, please reboot the camera and you can see the modification.
