29
CD-R/RW MASTER RECORDER CR500 (Names and functions)
AC IN
CAUTION
AVIS:
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
UNBALANCED [-10dBV] BALANCED [+4dBu]
1:GND 2:HOT 3:COLD
RL RL
BALANCED [+4dBu]
DIGITAL
OUTPUTINPUT
L
R
R
L
ANALOG INPUT ANALOG OUTPUT
AC IN
GPI
1
234
5
6
7
8
1. [ANALOG INPUT] connectors (XLR-3-31 type, balanced)
These connectors receive analog audio signals at +4dBu.
When the RCA unbalanced analog input jacks are plugged, the
balanced connectors are disabled (see page 36).
2. [ANALOG INPUT] connectors (RCA type, unbalanced)
These connectors receive analog audio signals at -10dBV (see
page 36).
3. [ANALOG OUTPUT] connectors (RCA type, unbalanced)
These connectors send analog audio signals at -10dBV (see page
36).
4. [ANALOG OUTPUT] connectors (XLR-3-32 type, balanced)
These connectors send analog audio signals at +4dBu (see page
36).
5. [AC IN] connector
This connector is used to connect the supplied AC power cable
(page 14).
6. [GPI] jack
This jack is used to connect to a mixing console providing the
fader start/stop facility, which enables start/stop control of
the CR500 from a console's fader (see page 36).
7. [DIGITAL OUTPUT] connector (XLR-3-32 type, balanced)
This connector sends AES/EBU or S/P DIF digital signals (see
page 36). The digital output signal format (AES/EBU or S/P
DIF) can be set by the MENU mode (see page 77).
8. [DIGITAL INPUT] connector (XLR-3-31 type, balanced)
This connector receives AES/EBU or S/P DIF digital signals.
The unit automatically recognizes the digital signal format (AES/
EBU or S/P DIF) (see page 36).
1
3
2
2
3
1
<Pin assignment of XLR connectors>
1
2
3
GND
HOT
COLD

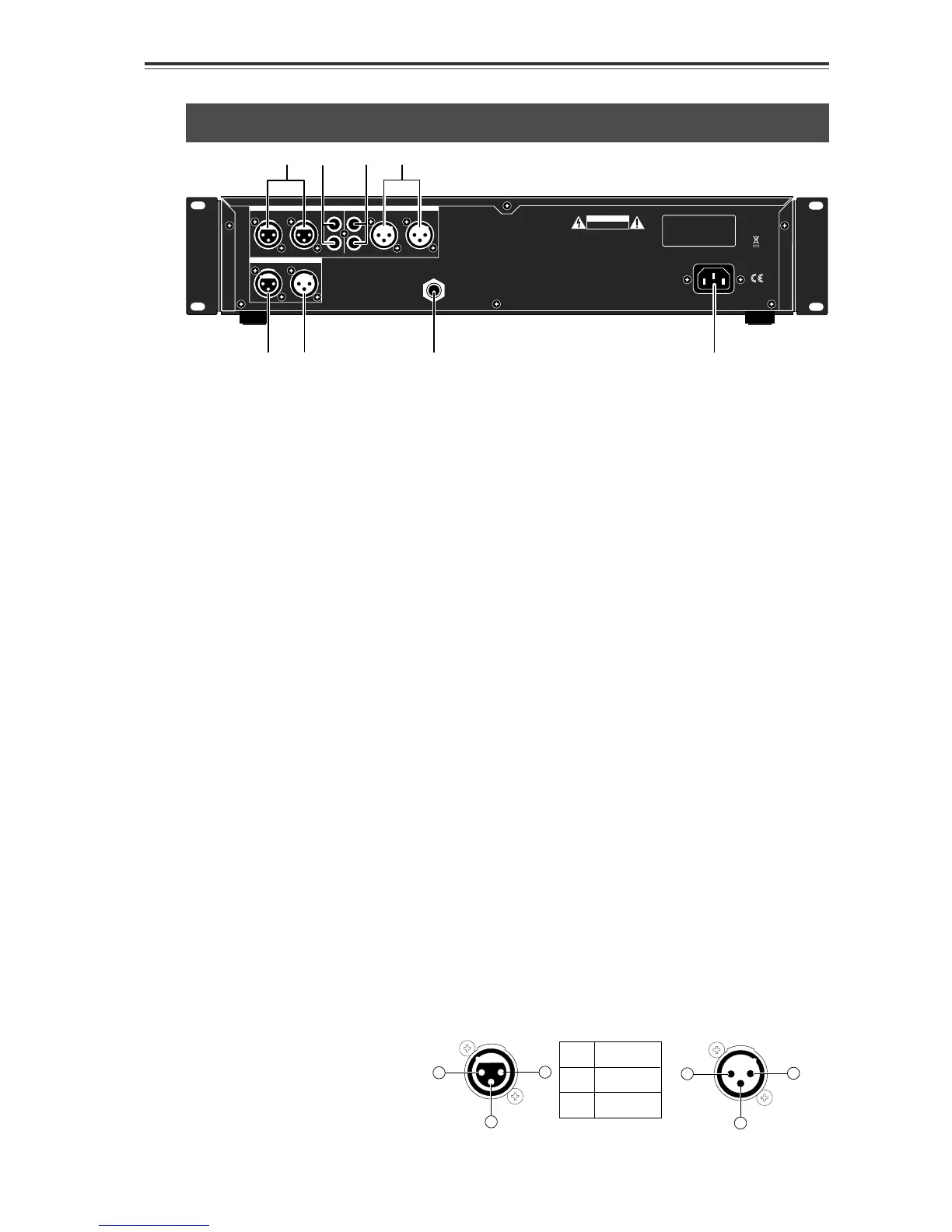

Rear panel section
XLR-3-31 type connector XLR-3-32 type connector
To Next Page
