Foundry Hardware Installation Guide for the FES, FESX, and FWSX
A - 6 © 2008 Foundry Networks, Inc. December 2008

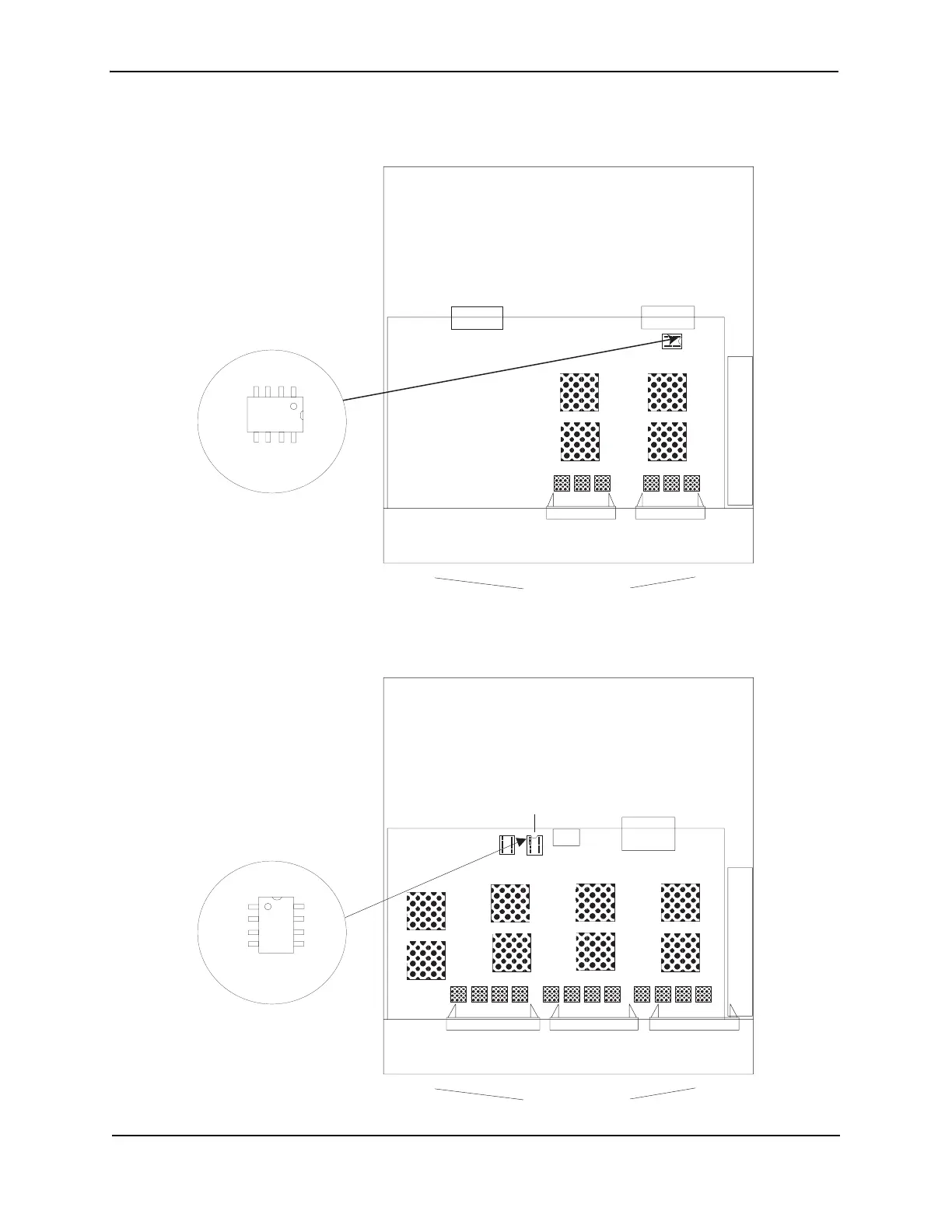

Figure A.6 DIP Key Insertion for FESX424HF, and FESX624HF
Figure A.7 DIP Key Insertion for FESX448 and FESX648
Rear
Port Connectors
U1005
Fan
CAUTION: PIN 1
MUST GO HERE!
If you accidentally insert
the upgrade DIP backwards,
the device will not work and
may be damaged when you
power it on.
DIP key
for upgrade
Pin 1
Rear
Port Connectors
Fan
CAUTION: PIN 1
MUST GO HERE!
If you accidentally insert
the upgrade DIP backwards,
the device will not work and
may be damaged when you
power it on.
DIP key
for upgrade
Pin 1
U3
