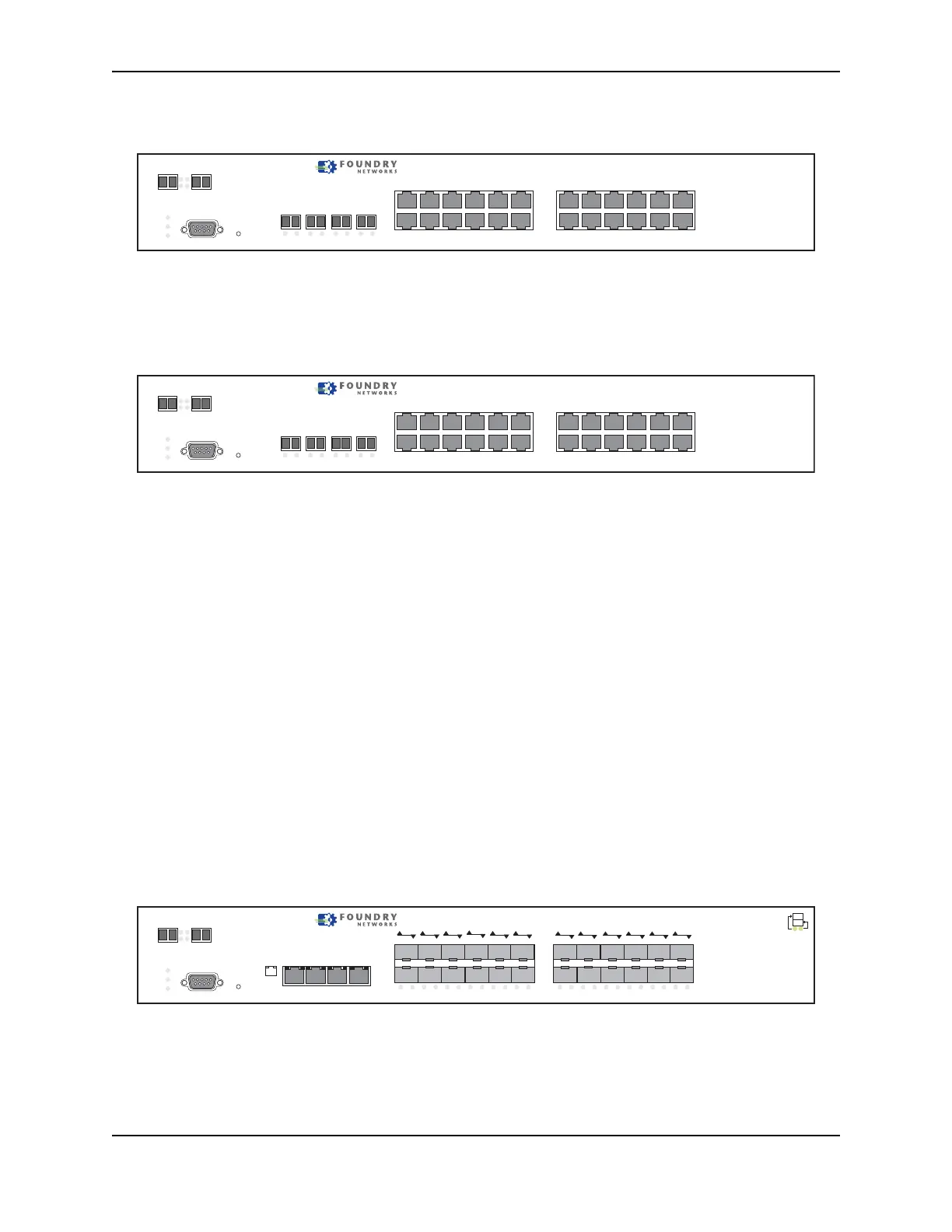

Figure 2.7 FESX424
The following figure shows the front panel of the FESX624. The FESX624E-PREM6 looks similar to the
FESX624, except for the model number on the front of the device.
Figure 2.8 FESX624
FESX424HF, FESX624HF, and FESX624HFE-PREM6
The FESX424HF, FESX624HF, and FESX624HFE-PREM6 have the following ports:
• 20 100/1000 Gigabit Ethernet fiber ports for mini-GBIC optical transceivers (also called Small Form Factor
Pluggable (SFP) Multisource Agreement (MSA)-compliant optical transceivers).
• Four combination Gigabit Copper/Fiber uplink ports:
• The copper ports support 10/100/1000Base-T RJ-45 connectors.
• The fiber ports support 100/1000 SFPs.
• IPv4 (FESX4) devices optionally support one or two 10-Gigabit Ethernet uplink ports for 10-Gigabit Small
Form Factor Pluggable (XFP) MSA-compliant optical transceivers
• IPv6 (FESX6) devices optionally support two 10-Gigabit Ethernet uplink ports for 10-Gigabit Small Form
Factor Pluggable (XFP) MSA-compliant optical transceivers
Note that one port out of each pair of copper and fiber ports can be active at a time. For example, you can use
either copper port 2 or fiber port 2, but not both at the same time. You can use a combination of fiber and copper
ports or all copper or all fiber ports, as needed. For more information, see “Combination Ports” on page 2-12.
The following figure shows the front panel of the FESX424HF.
Figure 2.9 FESX424HF Front Panel
The following figure shows the front panel of the FESX624HF. The FESX624HFE-PREM6 front panel looks
similar to the FESX624HF, except for the model number on the front panel.
Console
PS2
PS1
Power
1
2
FastIron Edge X424
FastIron Edge X424
1F
Lnk
Act
Lnk
Act
2F
Lnk
Act
3F
Lnk
Act
4F
Lnk
Act
1
2
3
4
1
2
5
6
1
2
7
8
9
10
11
12
115
16
117
18
13
14
19
20
21
22
23
24
Act
Lnk
25/49 26/50
Console
PS2
PS1
Power
1
2
FastIron Edge X624
X624FastIron Edge
1F
Lnk
Act
Lnk
Act
2F
Lnk
Act
3F
Lnk
Act
4F
Lnk
Act
1
2
3
4
1
2
5
6
1
2
7
8
9
10
11
12
115
16
117
18
13
14
19
20
21
22
23
24
Act
Lnk
25/49 26/50
Console
PS2
PS1
Power
FastIron Edge X424HF
Lnk/Act
1C 2C 3C 4C
Act
Lnk
25/49 26/50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Lnk/Act
