Foundry Hardware Installation Guide for the FES, FESX, and FWSX
2 - 8 © 2008 Foundry Networks, Inc. December 2008

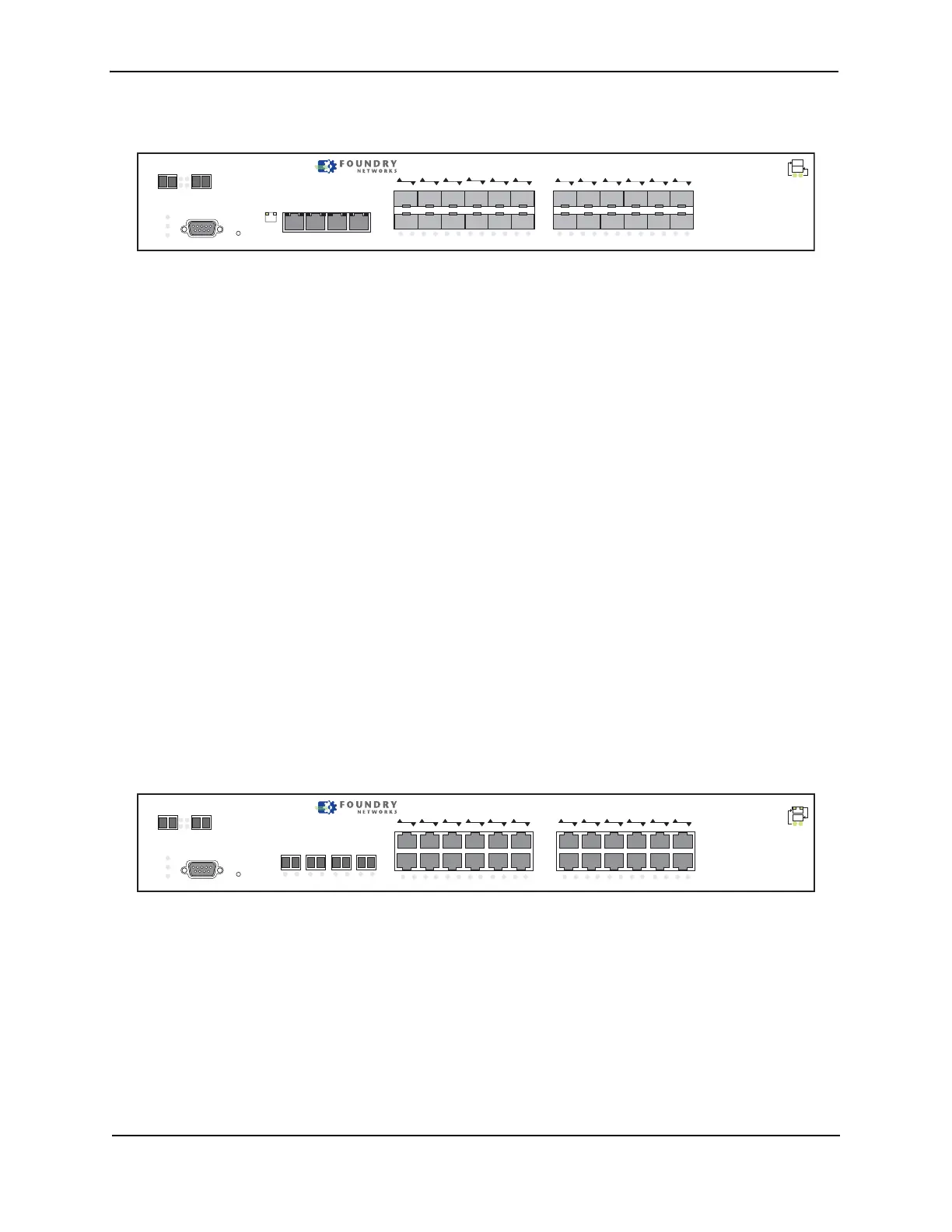

Figure 2.10 FESX624HF Front Panel
FESX424-POE
Foundry’s FESX424-POE was introduced with software release 02.4.00. Its 10/100/1000 ports provide Power
over Ethernet (PoE), compliant with the IEEE 802.3af specification for delivering power over the LAN. The 802.3af
specification provides the standard for delivering power over existing network cabling infrastructure, enabling
multicast-enabled full streaming audio and video applications for converged services, such as, Voice over IP
(VoIP), WLAN access points, IP surveillance cameras, and other IP powered devices.
For more information about POE and the CLI commands used to configure it, see the Foundry FastIron
Configuration Guide.
The FESX424-POE has the following ports:
20 10/100/1000 ports with RJ-45 copper connectors
Four combination Gigabit Copper/Fiber uplink ports:
The copper ports support 10/100/1000BaseT RJ-45 connectors.
The fiber ports support 10/100/1000 SFPs.
Optionally, one or two 10-Gigabit Ethernet uplink ports for 10-Gigabit Small Form Factor Pluggable (XFP)
MSA-compliant optical transceivers
The ports numbered from 1 – 24 support POE.
Note that one port out of each pair of copper and fiber ports can be active at a time. For example, you can use
either copper port 2 or fiber port 2, but not both at the same time. You can use a combination of fiber and copper
ports or all copper or all fiber ports, as needed. For more information, see “Combination Ports” on page 2-12.
The following figure shows the front panel of the FESX424-POE.
Figure 2.11 FESX424-POE Front Panel
FESX448, FESX648, FESX648E-PREM6 and FWSX448
The FESX448, FESX648, FESX648E-PREM6 and FWSX448 have the following ports:
48 Copper ports that support 10/100/1000Base-T RJ-45 connectors
Four Gigabit Fiber uplink ports (1F – 4F) for mini-GBIC optical transceivers (also called Small Form Factor
Pluggable (SFP) Multisource Agreement (MSA)-compliant optical transceivers)
IPv4 (FESX4 and FWSX) devices optionally support one or two 10-Gigabit Ethernet uplink ports for 10-
Gigabit Small Form Factor Pluggable (XFP) MSA-compliant optical transceivers
IPv6 (FESX6) devices optionally support two 10-Gigabit Ethernet uplink ports for 10-Gigabit Small Form
Console
PS2
PS1
Power
FastI
astI
ron
on
Edge X624HF
dge X624HF
Lnk/Act
1C 2C 3C4C
Act
Lnk
25/49 26/50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Lnk/Act
Console
PS2
PS1
Power
FastIron
on
Edge X424-POE
1F 2F 3F
Lnk Act Lnk Act Lnk Act Lnk Act
4F
Act
Lnk
25/49 26/50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Lnk/
Act
POE Power
Lnk/
Act
