Fourgroup Full-App 2 - 10. GENERAL SETTINGS; Manual Zero Setup for 4-20 mA Sensor; Minimum Level;Pressure Alarm Setting; Pump Start Level Configuration

13

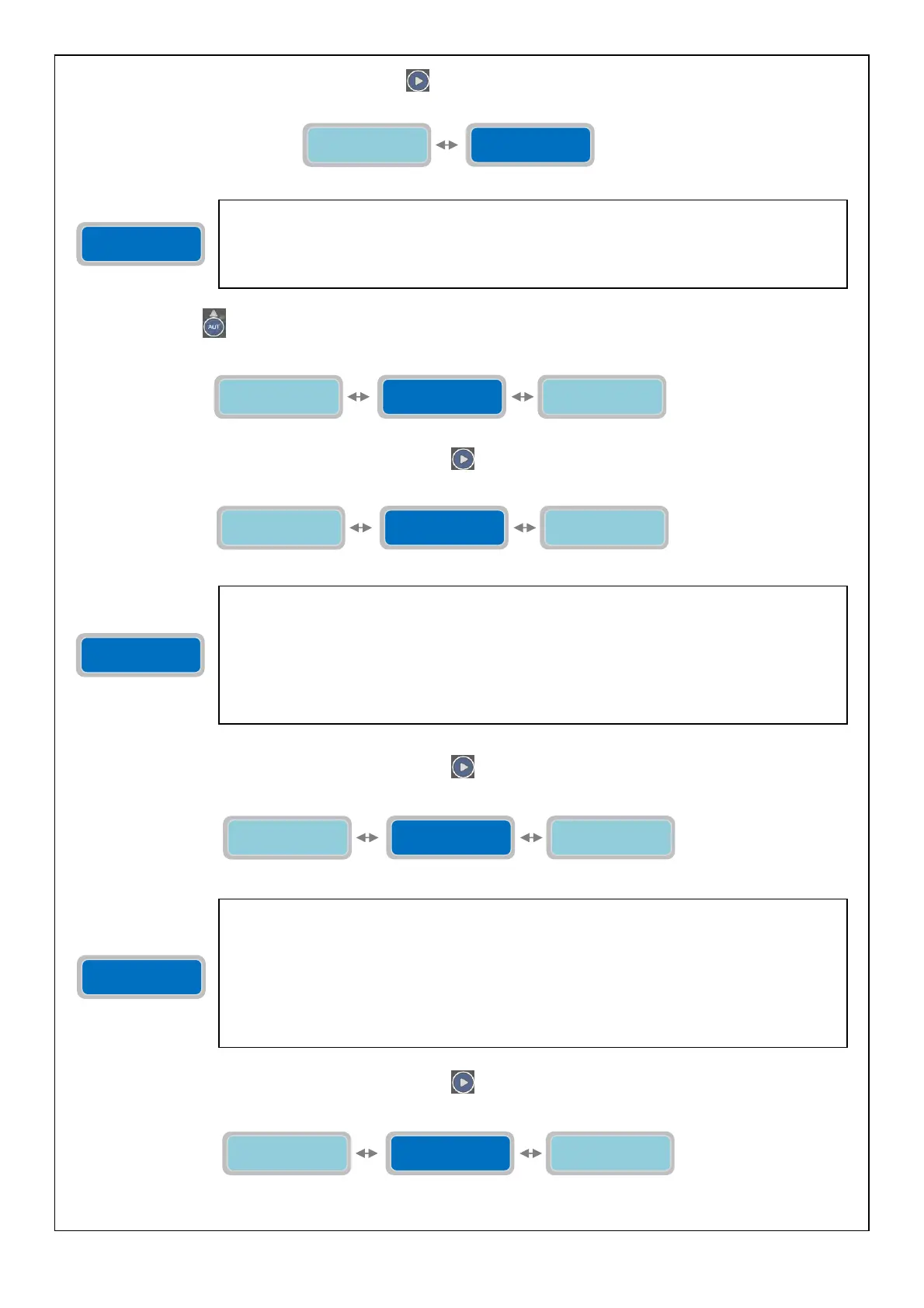

To manually set the “relative zero” press the button
:
Pressing the button
it is possible to continue to program all the parameters relative to the 4-20mA device.
To move to the next horizontal parameter press the button
:
To move to the next horizontal parameter press the button
:
To move to the next horizontal parameter press the button
:
min. Lev-Press
XX.XX
The parameter “Minimum level” will set the level (in bar or meter depending on the mode
previously selected) for which to trigger an alarm. The alarm of minimum level will stop the
pumps and will show in the visual display and, depending on the settings of associated menu, it
can activate one or more output relays. In the case of a pressurized system this alarm
corresponds to the pressure parameter “minimum pressure level”.
(The “X” indicates the digit of the parameter to modify).
The range of value is from 00.00 to 99.99.
Factory default setting: 00.00.
Set-up
Zero: XX.XX
Learn
Zero: XX.XX
Set-up
Zero: XX.XX
The parameter “Set-up Zero” will set the value of the relative zero manually.
The “X” indicates the digit of the parameter to modify.
The range of value is from 00.00 to 99.99 (bar or meters depending on the choice made
previously).
Factory default setting: 00.00.
Zero Calibration
Learn / Sets
Enable Max 4-20
0=NO 1=YES X
min. Lev-Press
XX.XX
min. Lev-Press
XX.XX
Zero Calibration
Learn / Sets
Start Level P1
XX.XX
Stop Level P1
XX.XX
Start Level P1
XX.XX
Start Level P2
XX.XX
Start Level P1
XX.XX
min. Lev-Press
XX.XX
Stop Level P1
XX.XX
The parameter “Start Level P1” will set the level (in bar or meter units depending on the mode
previously selected) for which to start the Pump 1. In the case of a pressurized system this
alarm corresponds to the pressure parameter “Pressure start P1”.
This parameter is usable only in the DIGIT programming mode and in the MULTITANK
programming mode (only for Pump 1). In all other programming modes this parameter is
inhibited.
(The “X” indicates the digit of the parameter to modify).
The range of value is from 00.00 to 99.99.
Factory default setting: 00.00.
Start Level P1
XX.XX
