Foxconn H61MXV Series User Manual

2
12
Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides sepa-
ratedbyanotchinthemiddle,soitcanonlytinonedirection.Followthestepsbelowtocorrectly
install your memory modules into the sockets.

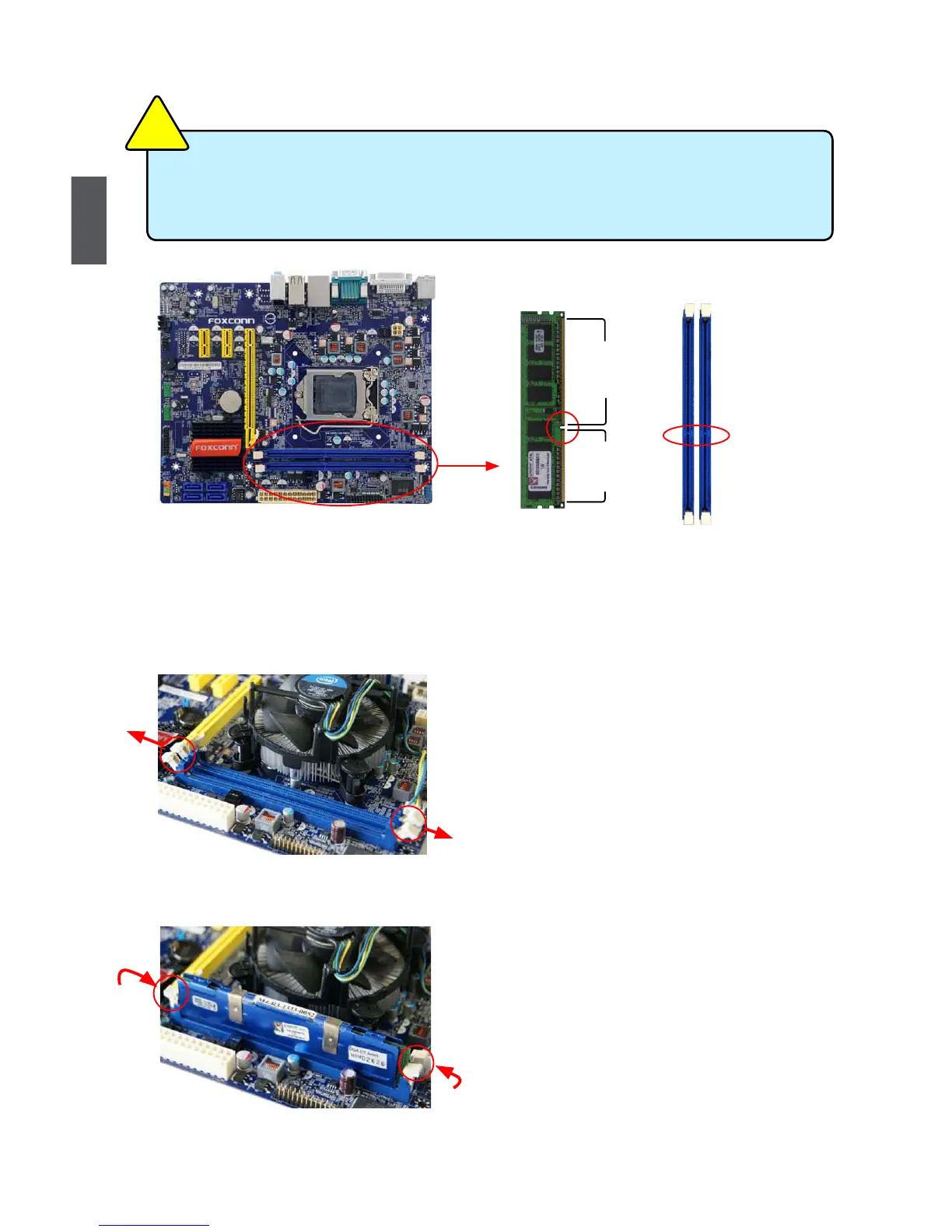

Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
itdownrmlyandseatitverticallyintothememory
socket.
Step2:
The clips at both ends of the socket will snap into
place when the memory module is securely insert-
ed.
Notch
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR3 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
96-Pin
144-Pin

Foxconn H61MXV Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
Graphics Interface	PCI Express 3.0 x16
Storage	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111E Gigabit LAN
Video Outputs	VGA
