Foxconn H61MXV Series User Manual

4
45
1. Main Page

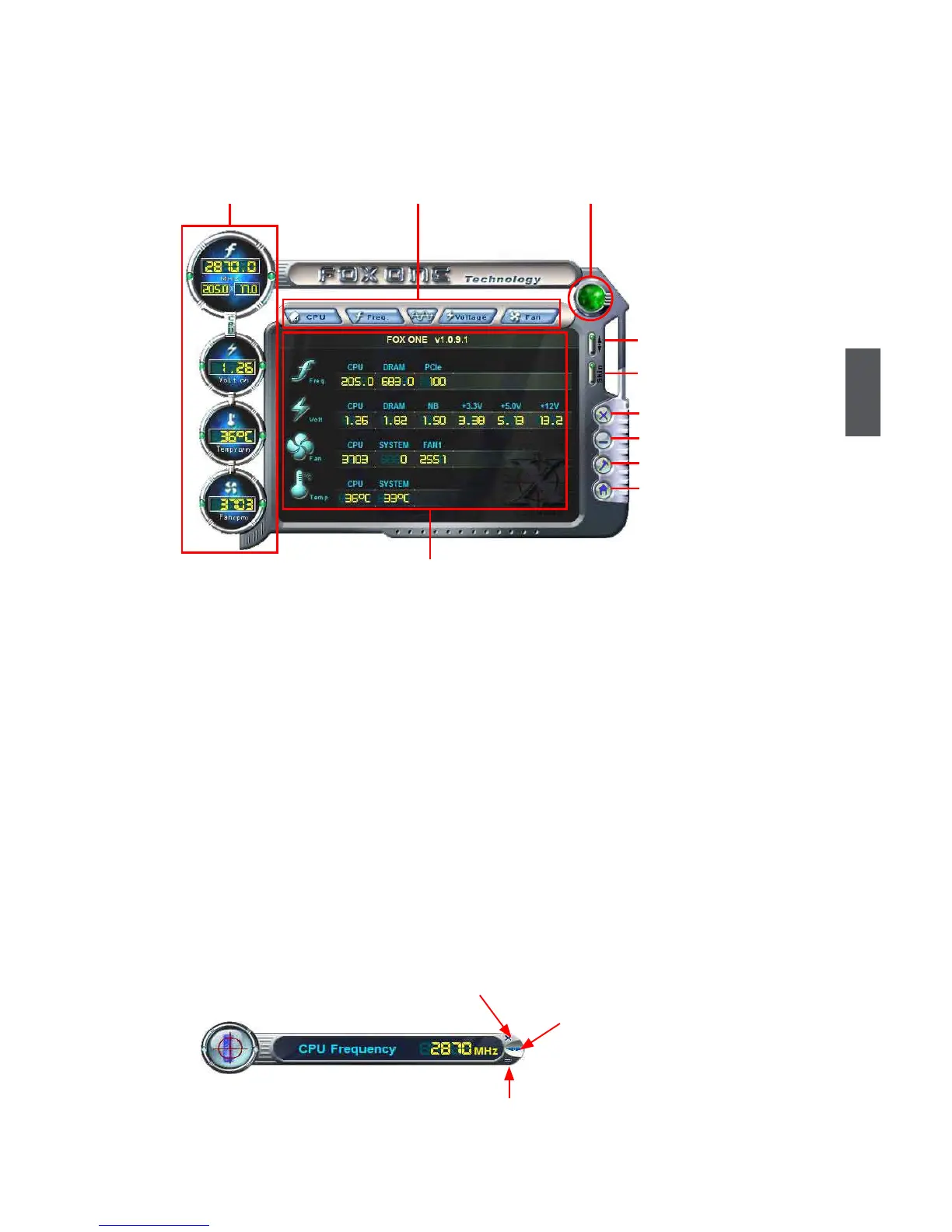

Toolbar
Use the toolbar to navigate to other pages.
Alert Lamp
When the system is in healthy state, the color of alert lamp is green. When the system
is in abnormal state, the alert lamp color is red.
Switch Button
Click this button, it will simplify the whole FOX ONE control panel to a smaller
information bar (i.e. Simple Mode) as depicted below, you can drag this bar to any
place on your screen to help you monitoring system status.
Click here to go back to
FOX ONE full screen
Click here will drop the FOX ONE to Windows system tray
Exit FOX ONE
Show CPU
Information
Toolbar
Alert Lamp
Switch Button
Exit
Minimum
Homepage
Monitor Frequency/Voltage/Fan
speed/Temperature value
Conguration
Skin Button

Foxconn H61MXV Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
Graphics Interface	PCI Express 3.0 x16
Storage	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111E Gigabit LAN
Video Outputs	VGA
