Foxconn H61MXV Series User Manual

1
4

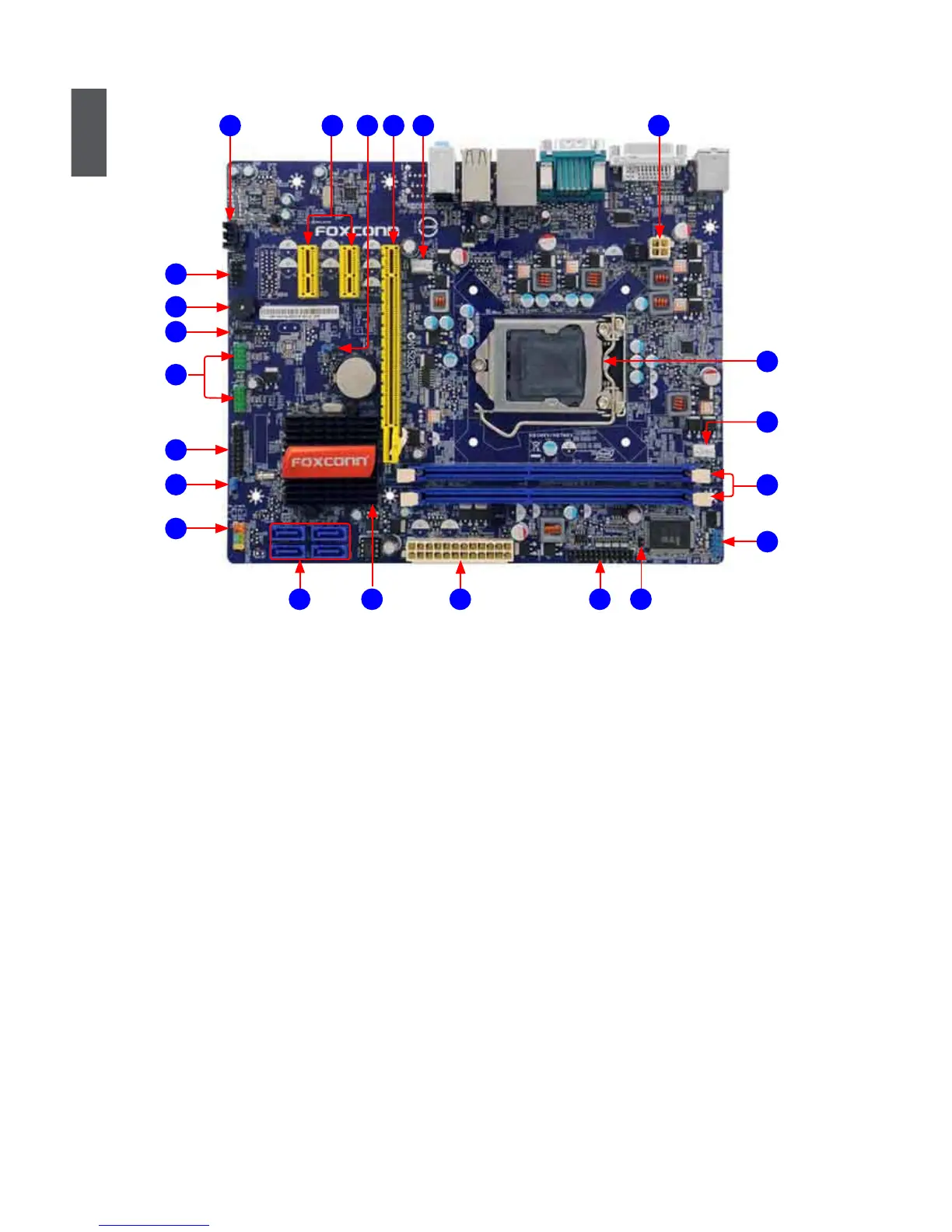

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1.4-pinATX12VPowerConnector
2.SYS_FAN1Header
3. PCI Express x16 Slot
4.ClearCMOSJumper
5.PCIExpressx1Slot
6. CD_IN Connector
7. Front Audio Connector
8. Buzzer (Speaker Connector)
9. SPDIF_OUT Connector
10. Front USB Connectors
11. TPM Connector
12.PCH_ME_ENABLEJumper
13. Front Panel Connectors
14.SATA Connector
15.Chipset:Intel
®
H61/H67
16.24-pinATXPowerConnector
17. LPT Connector
18. Chassis intrusion alarm header (INTR)
19.COM2Connector
20.DDR3DIMMSlots
21.CPU_FANHeader
22.LGA1155CPUSocket
1
16
6
8
13
14 17
19
21
22
15
20
9
18
4
7
10
11
12
235

Foxconn H61MXV Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
Graphics Interface	PCI Express 3.0 x16
Storage	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111E Gigabit LAN
Video Outputs	VGA
