Foxconn H61MXV Series User Manual

4
47

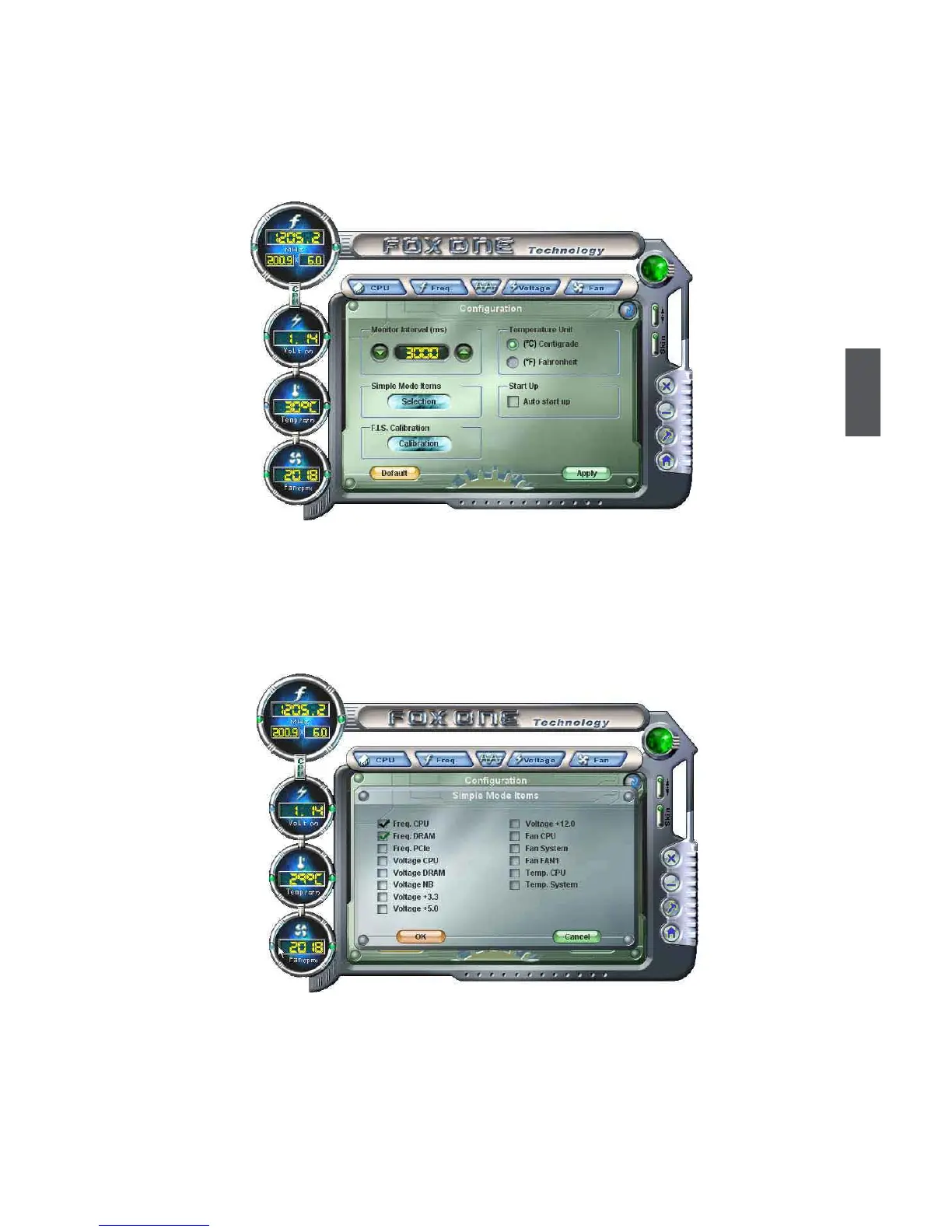

Conguration
Thismenuallowsyoutocongure:
1). Monitor interval (ms) :
Thisistodenetheintervalofdifferentmessagesofsystemsettingswhichareto
be displayed on Simple Mode screen. Minimum value is 1 second.
2).SimpleMode:
To select which message of system settings are to be displayed in the Simple
Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one
by one in Simple Mode.
3). F.I.S. Calibration (FOX Intelligent Stepping, Optional)
This function will re-calibrate the CPU's loading, and it may take several minutes
to proceed. The FOX ONE calibration process will apply different loadings to
your CPU, record PWM IC voltage together with the CPU clock running at these
loadings,soitcandeneandestimatewithinaparticularrangeofsystemloading,
what the CPU clock should be.

Foxconn H61MXV Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
Graphics Interface	PCI Express 3.0 x16
Storage	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111E Gigabit LAN
Video Outputs	VGA
