NAGA PRO User Manual
14
二．MX16 Introduction

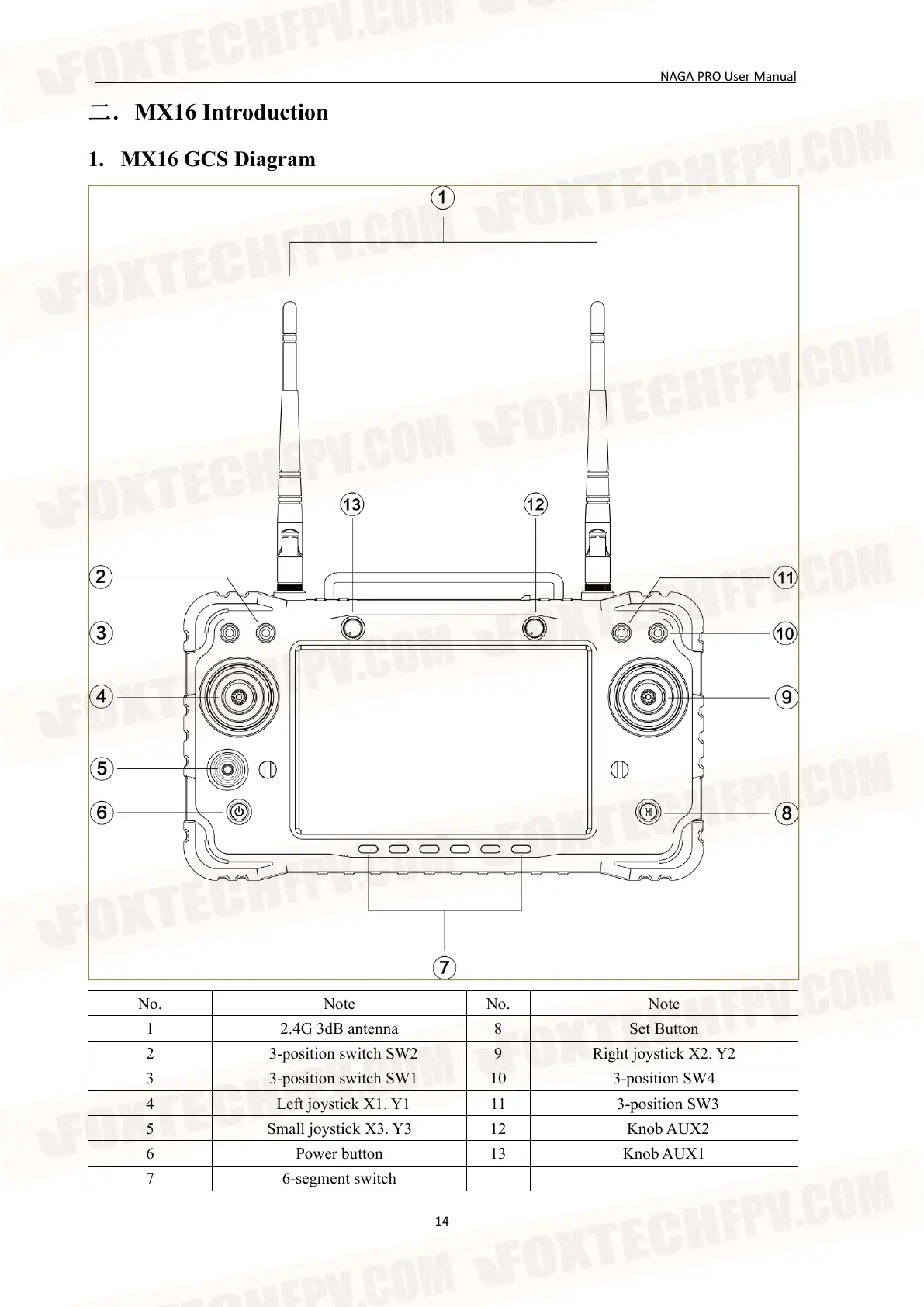

1. MX16 GCS Diagram
No. Note No. Note
1 2.4G 3dB antenna 8 Set Button
2 3-position switch SW2 9 Right joystick X2. Y2
3 3-position switch SW1 10 3-position SW4
4 Left joystick X1. Y1 11 3-position SW3
5 Small joystick X3. Y3 12 Knob AUX2
6 Power button 13 Knob AUX1
7 6-segment switch
