NAGA PRO User Manual
1
一．Assembly

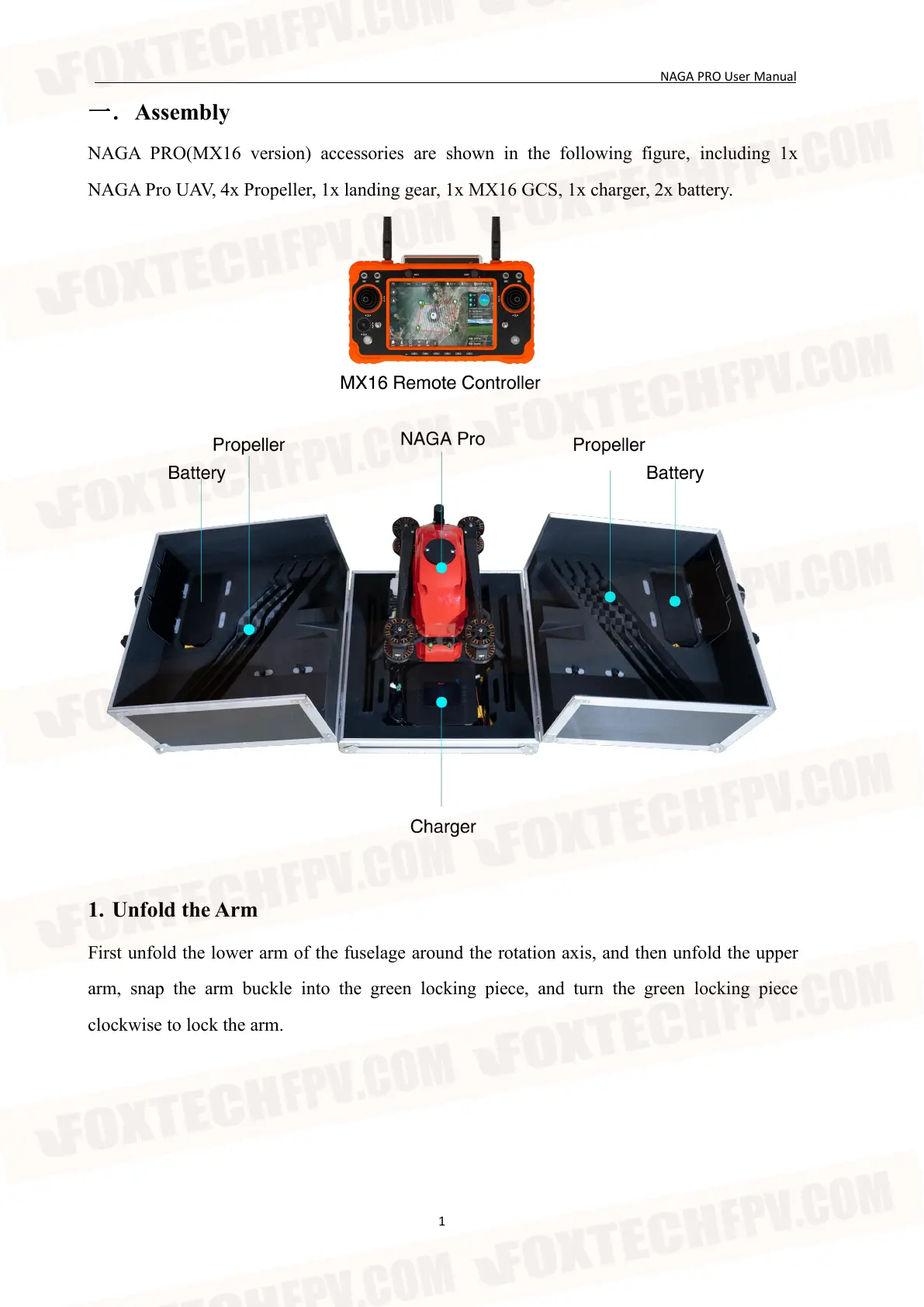

NAGA PRO(MX16 version) accessories are shown in the following figure, including 1x
NAGA Pro UAV, 4x Propeller, 1x landing gear, 1x MX16 GCS, 1x charger, 2x battery.
1. Unfold the Arm
First unfold the lower arm of the fuselage around the rotation axis, and then unfold the upper
arm, snap the arm buckle into the green locking piece, and turn the green locking piece
clockwise to lock the arm.
