Installation and commissioning
25
• Lift the Feeder plus slightly, align to the
Ramp plus (see illustration on page 24)
and carefully set down on the Ramp plus.
The catches must latch into the slots on the
bottom side of the Feeder plus here.
• Fit the remaining components in the same
way.

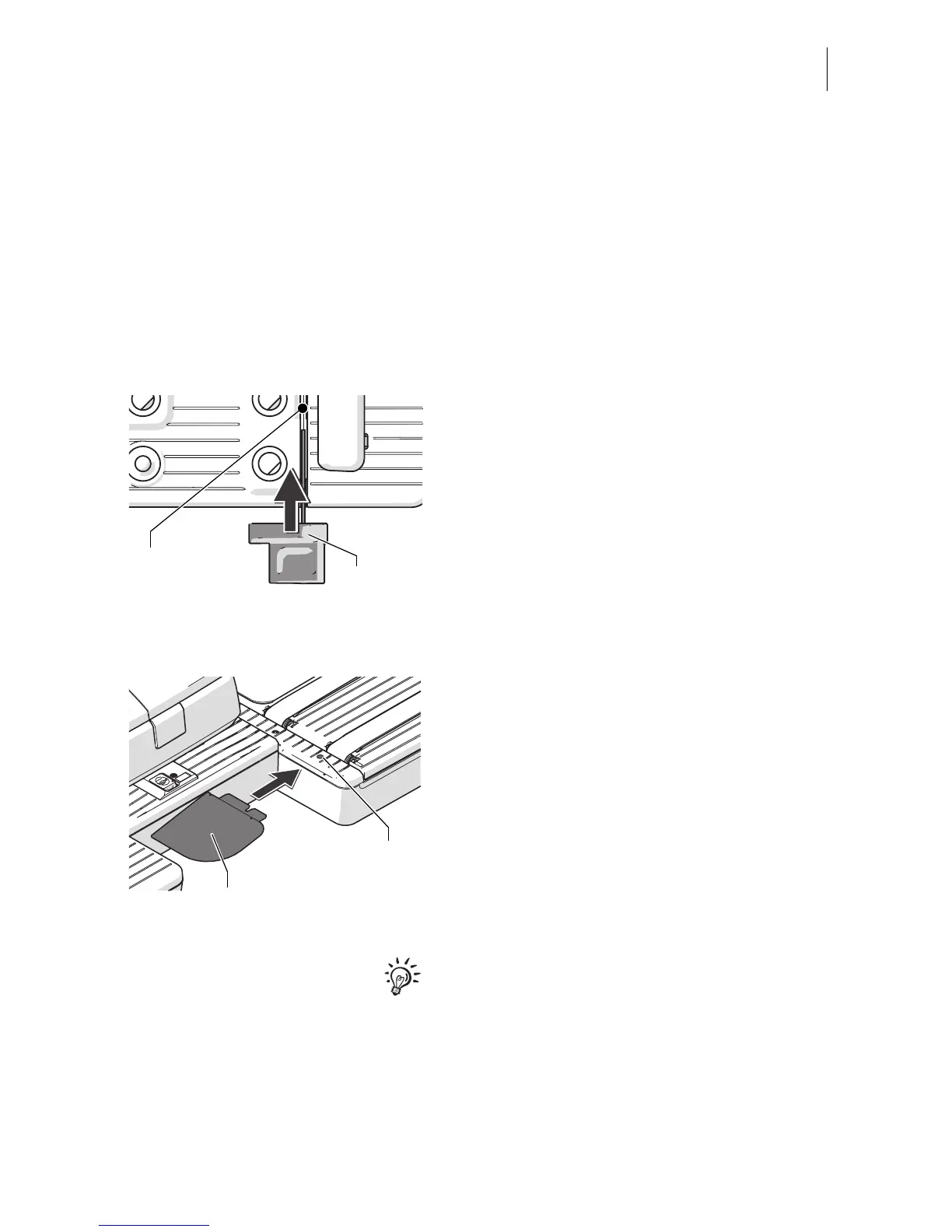

On the Ramp plus Attaching the letter guide
• Place the letter guide in the magnetic guide
rail from the front and slide it into place.
On the Dynamic Scale Mounting the guide plate
• Fold the hood up.
• Release the fastening screw with the Torx
tool supplied (roughly 1 revolution).
• Insert the guide plate – as shown in the
illustration – in the slot of the Dynamic
Scale and slide in to the stop.
• Tighten the fastening screw.
• Close the hood.
You can remove the protective films applied
to protect sensitive surfaces (display, weigh-
ing platform, sealant tank flap).
