Controls
COMBINED FOOD & BEVERAGE CABINETS - OPERATION
Mains Power
Mains power is independently supplied to each section of the cabinet.
The upper heated section has a readily accessible mains switch on the left of
the pelmet, which controls both heating and lighting.
The refrigerated section has a safety mains isolation switch behind the front
louver panel, but will normally be controlled from the supply socket. The air
circulation and condenser fans will operate as soon as the power is turned on,
but there is a separate switch for the lights, on the left of the upper shelf space.
Refrigerated
Section
Controls

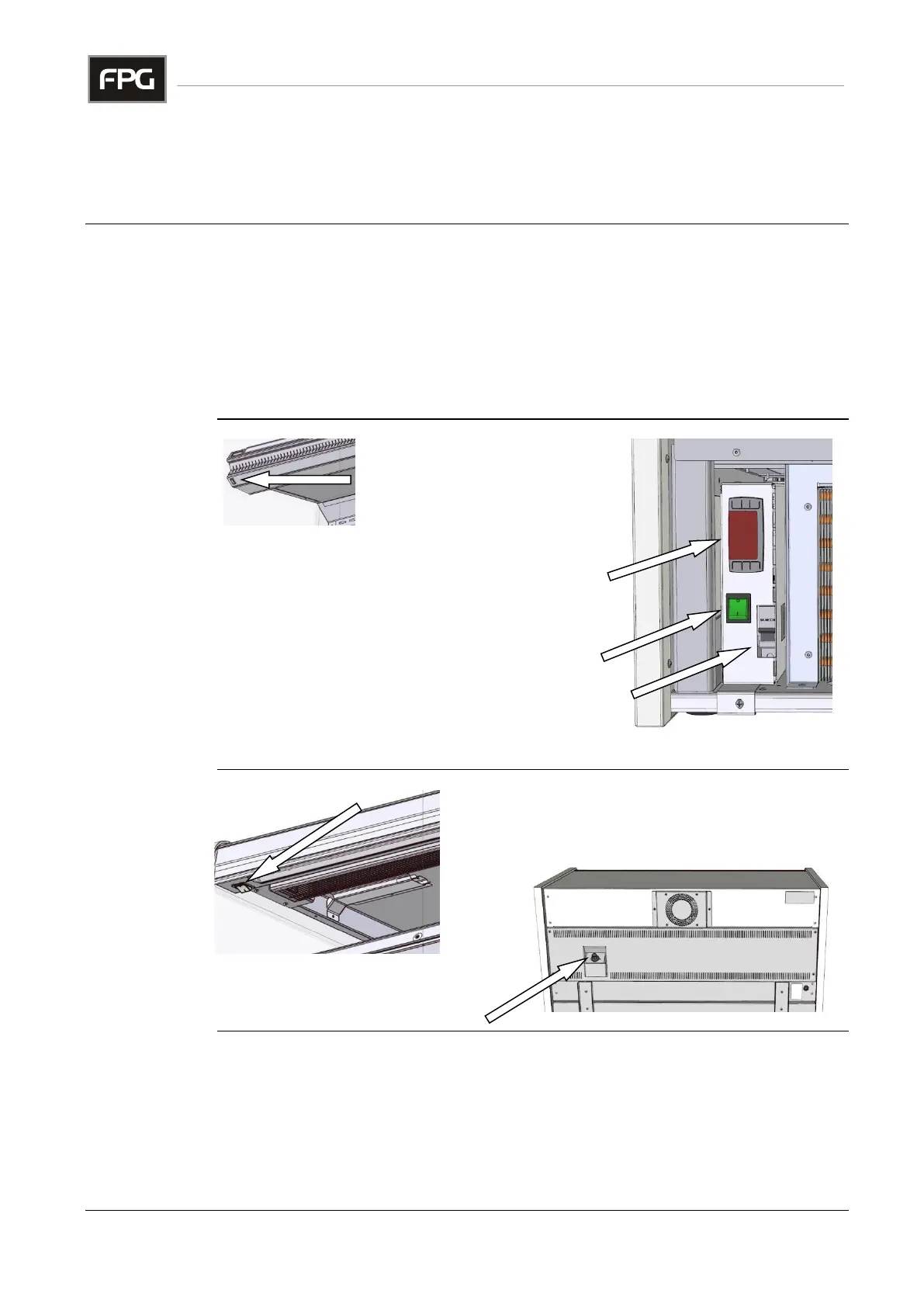

Apart from the light switch,
there are no operator control
switches on the refrigerated
section. It is fully operational as
soon as it is connected to a
mains power point. The control gear is located in
the base of the cabinet.
The controller has indicator displays and
programming buttons.
A safety mains isolator switch is provided for
servicing.
A miniature circuit breaker protects the lighting and
low power devices against overload.
Heated Section
Controls
The mains switch controls both heating and
lighting.
The thermostat for the heated section
is on the back of the cabinet.
