Heating
COMBINED FOOD & BEVERAGE CABINETS
-
SERVICING

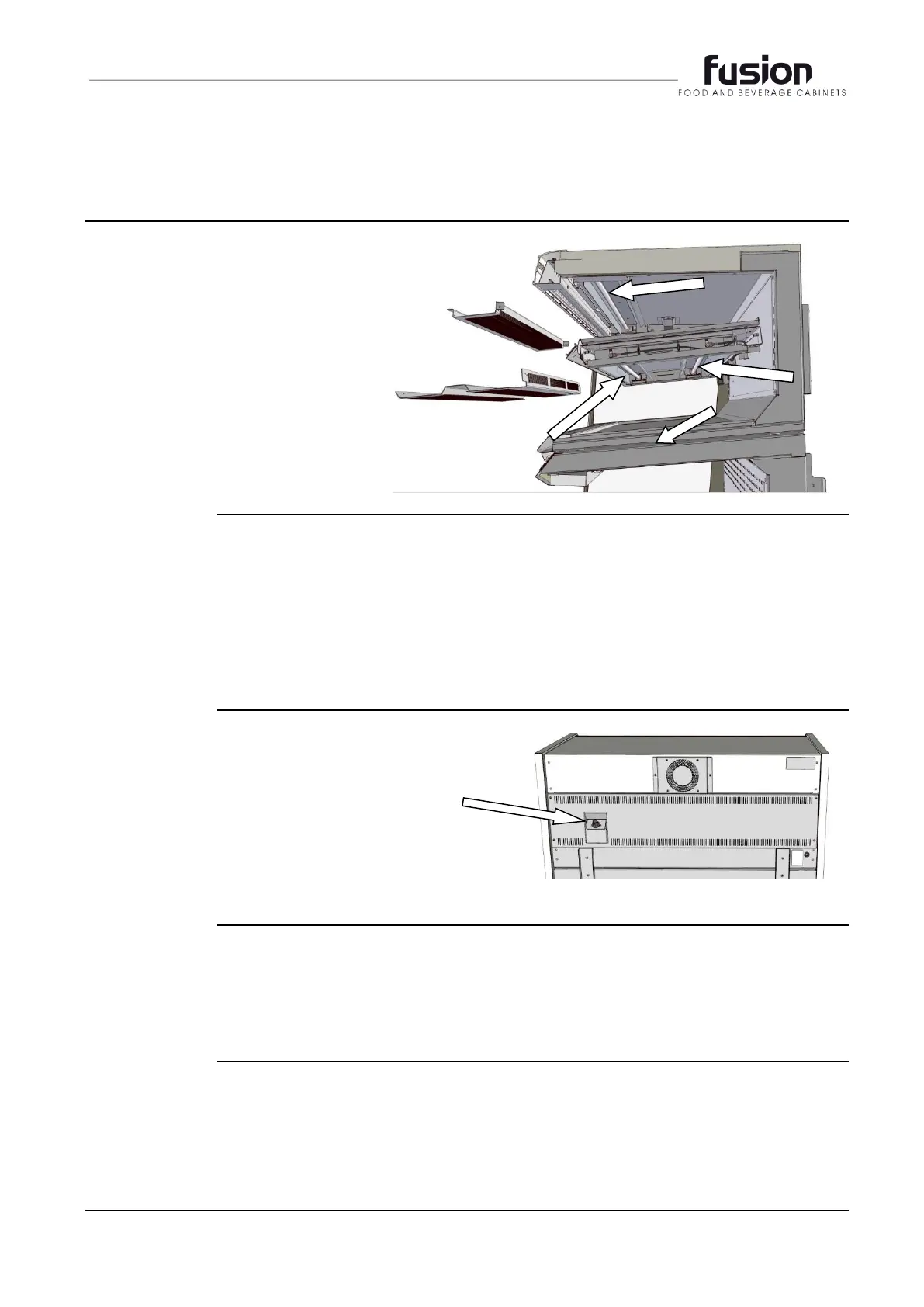

Radiant heating
elements are used
above the shelves,
and the lower shelf
is directly heated by
a contact element.
Temperature probes
for the thermostat
and thermometer
are mounted above
the upper shelf.
To replace the upper radiant element, first remove the screws retaining the wire
guard. The element assembly can then be released and a new one fitted.
Because of the restricted space, it is easier to replace the radiant shelf elements
by first removing the complete shelf assembly. To do this, the wiring must first
be disconnected from behind the back panel.
The base element can only be replaced by fitting a complete element/panel
assembly. Note that it has fixings from the back of the cabinet as well as inside.
The overall temperature of the heated
section is controlled by a thermostat,
on the back of the cabinet.
Turn clockwise to increase
temperature.
It is important to confirm that the
cabinet temperature gauge
indicates at least 68°C.
Thermometer
Battery
Replacement
The digital thermometer is self-contained, fitted with two batteries.
The thermometer is a push-fit in the cabinet, and may be extracted to replace
the batteries.
Fresh batteries should be fitted in pairs.
