Part No. 22958 Rev. P June 2017 - 22 - Fusion, Food & Beverage Cabinet
Heating cont.
COMBINED FOOD & BEVERAGE CABINETS
-
SERVICING
The control gear for the heated section is located under a removable panel, on
the back of the cabinet.
The MCB and LED power supply are here,
together with connections to the heating and lighting circuits etc.

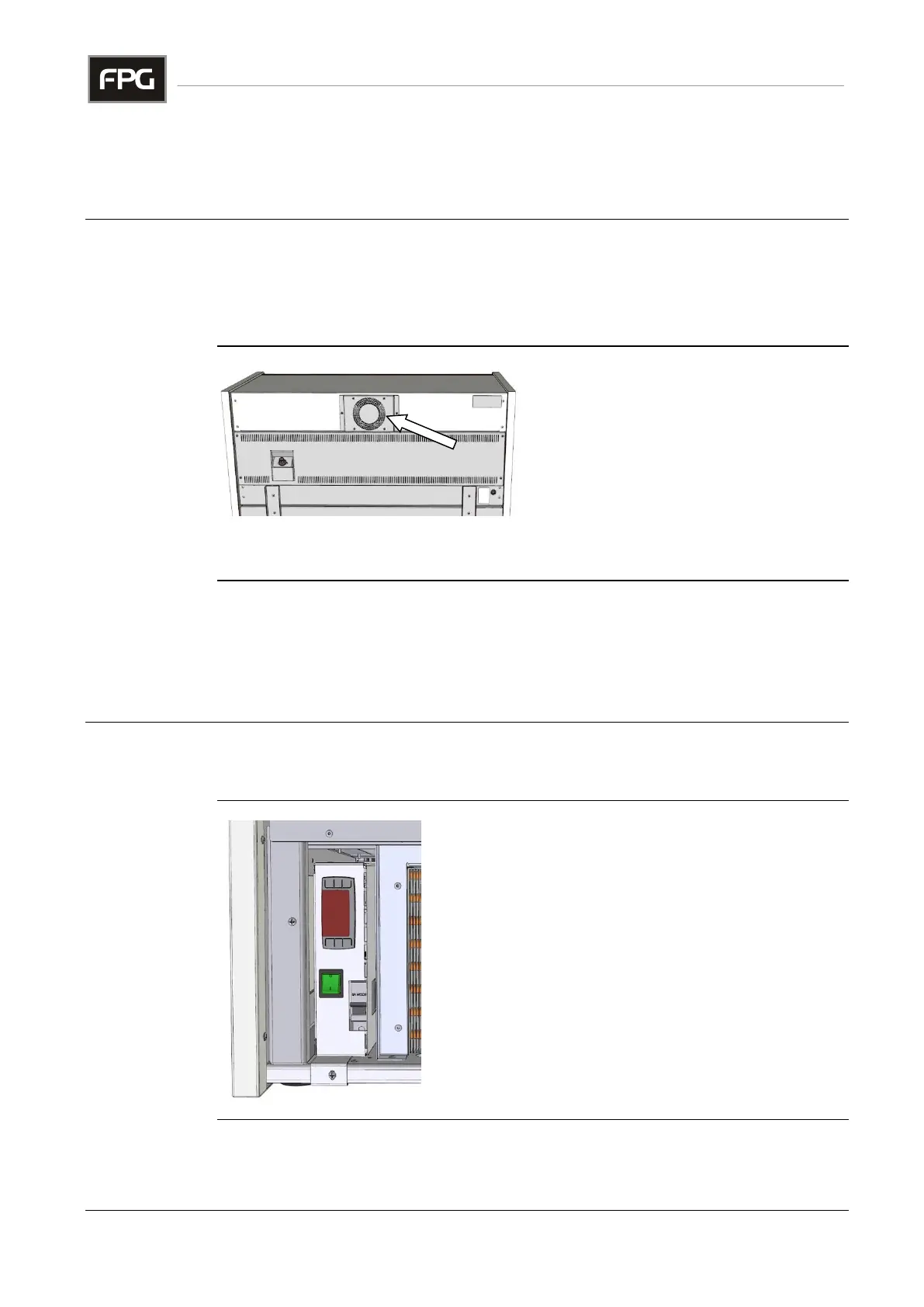

A fan is mounted on the upper back of
the cabinet. This circulates air through
the top of the cabinet, to prevent
surfaces becoming too hot to touch.
It is important that the fan is operating
correctly, and that its grill is not
blocked with dust and fluff.
Insufficient air circulation will allow surface temperatures to rise, and can
result in shortened LED life.
Refrigeration
COMBINED FOOD & BEVERAGE CABINETS
-
SERVICING
DO NOT attempt to service the refrigeration equipment without isolating
the cabinet by unplugging it from the mains supply socket.
Access to
Control Gear
etc.
The control gear chassis is reached by removing the
louver panel from the front of the cabinet.
The chassis houses the refrigeration controller,
mains isolation switch, MCB, LED power supply and
the terminal block for all interconnections.
Remove the four screws retaining the lower side
panel to access the interior of the chassis.
Continued on next page
