Part No. 22958 Rev. P June 2017 - 24 - Fusion, Food & Beverage Cabinet
Refrigeration cont.
COMBINED FOOD & BEVERAGE CABINETS - SERVICING

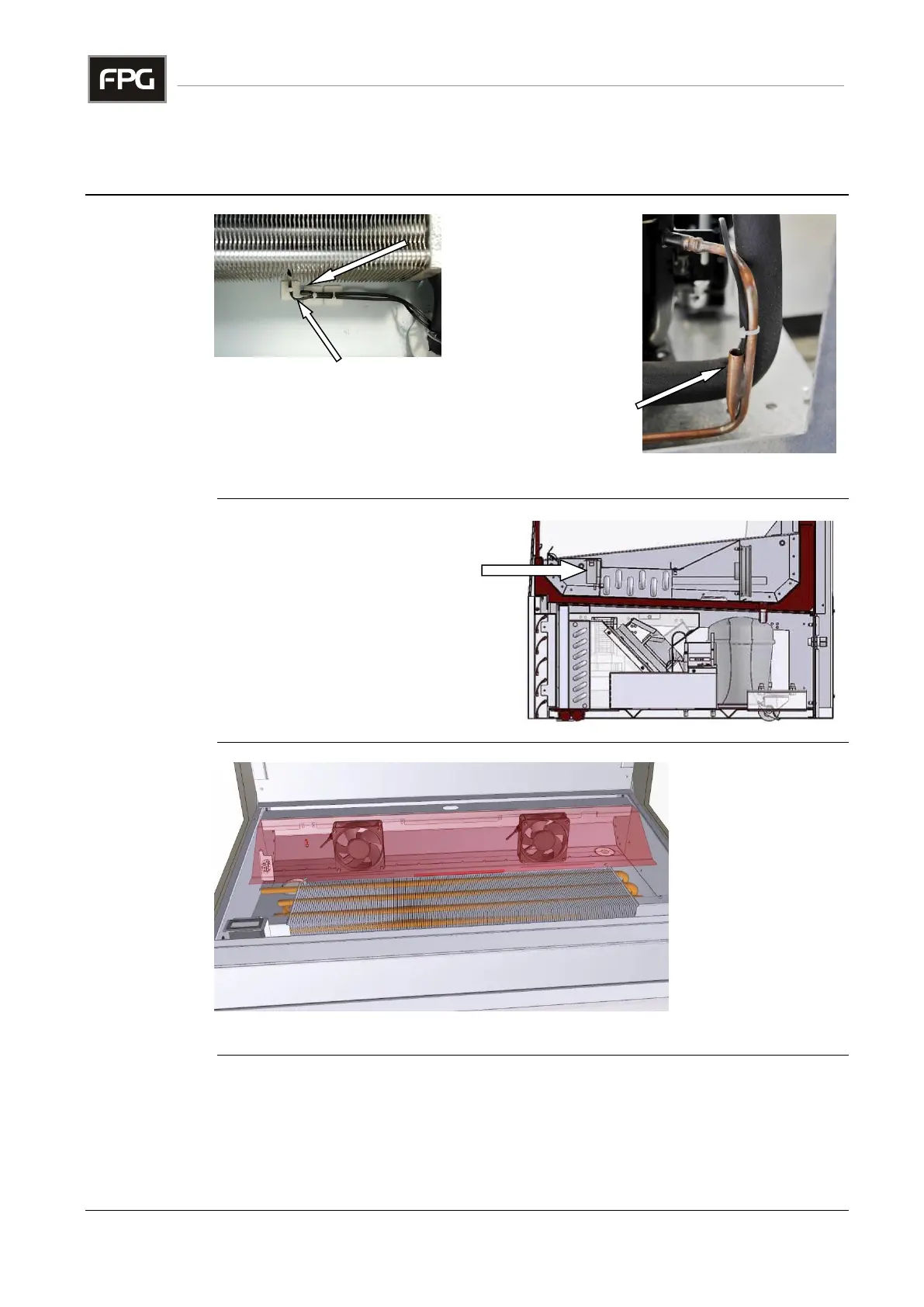

The temperature
control probe is
positioned in the off air
stream from the
evaporator coil.
A second probe,
inserted in the fins of
the coil controls the
defrost termination.
A third probe (temperature sensor), is located in a
pocket on the discharge line from the compressor.
The function of this probe is to avoid the refrigeration system overheating.
A barrel thermometer is located in
the return air duct, at the front of the
cabinet.
It will therefore indicate the
temperature of the air returning from
the display area, before passing
through the cooling coil. This will be
slightly higher than the product
temperature.
The fan deck is
fitted with two fans,
and is electrically
connected to the
cabinet with a plug
and socket.
After removing the
retaining screws,
the complete
assembly can be
removed for
servicing.
Take care to avoid trapping cables with the metalwork, when re-assembling
Continued on next page
