5.3.4 Manual connection and stage identication
To initiate the manual start-up procedure, select Man in the Detection menu and
confirm this with Continue.

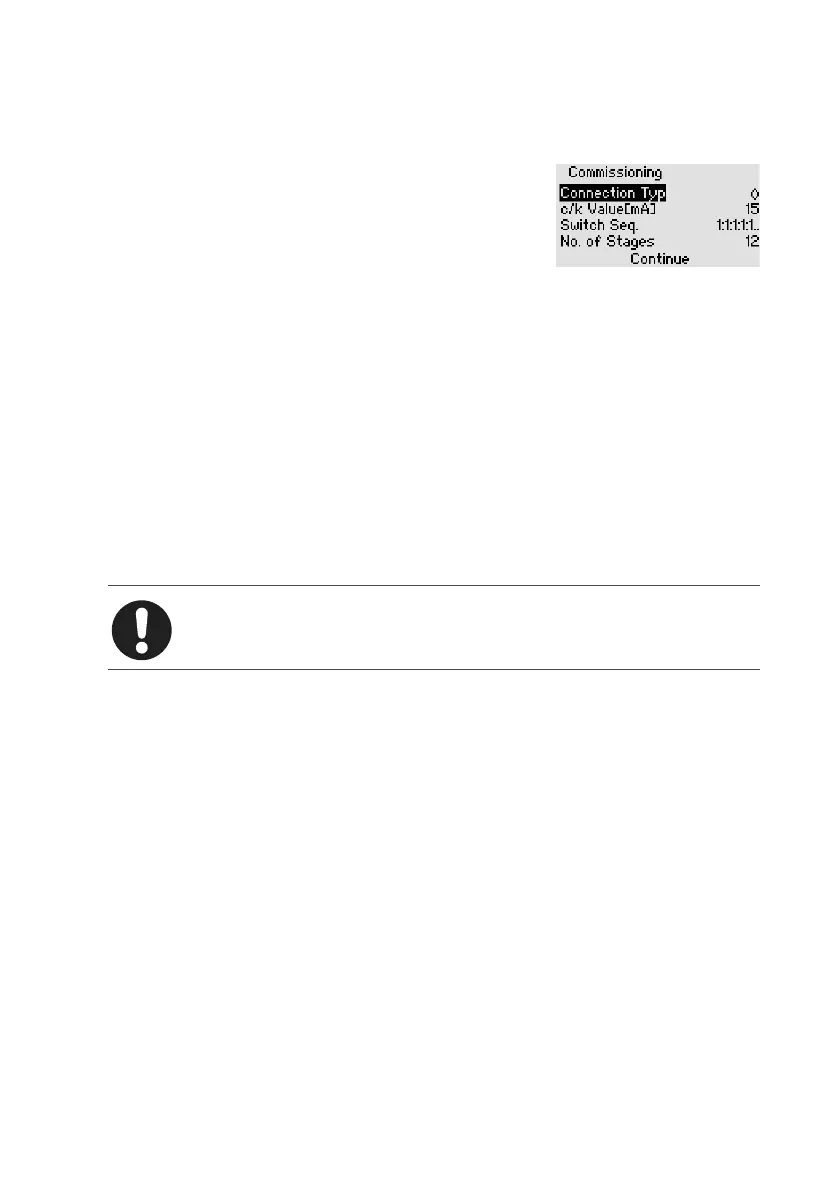

In the manual start-up, the following parameters must be
determined manually and entered:
Connection type see Section 5.3.4.1 “Connection
type”
c/k value see Section 5.3.4.2 “Calculation
of c/k”
Switching sequence The switching sequence must be set in terms of the relative
values of the individual stages to each other:
1:1:1:1:1… 1:1:2:4:4… 1:2:3:4:4…
1:1:2:2:2… 1:1:2:4:8… 1:2:3:6:6…
1:1:2:2:4… 1:2:2:2:2… 1:2:4:4:4…
1:1:2:3:3… 1:2:3:3:3… 1:2:4:8:8…
Number of C stages Indicates the number of control outputs used.
When all the necessary information has been entered, confirm this with Continue. The
PQC then switches to operating mode and displays the PQC overview screen. If at
this moment there is a concrete need for reactive power control, the PQC commences
to switch stages in or out as necessary
Note
Manual start-up mode deactivates the capacitive power identification
function when the PQC is operating.
