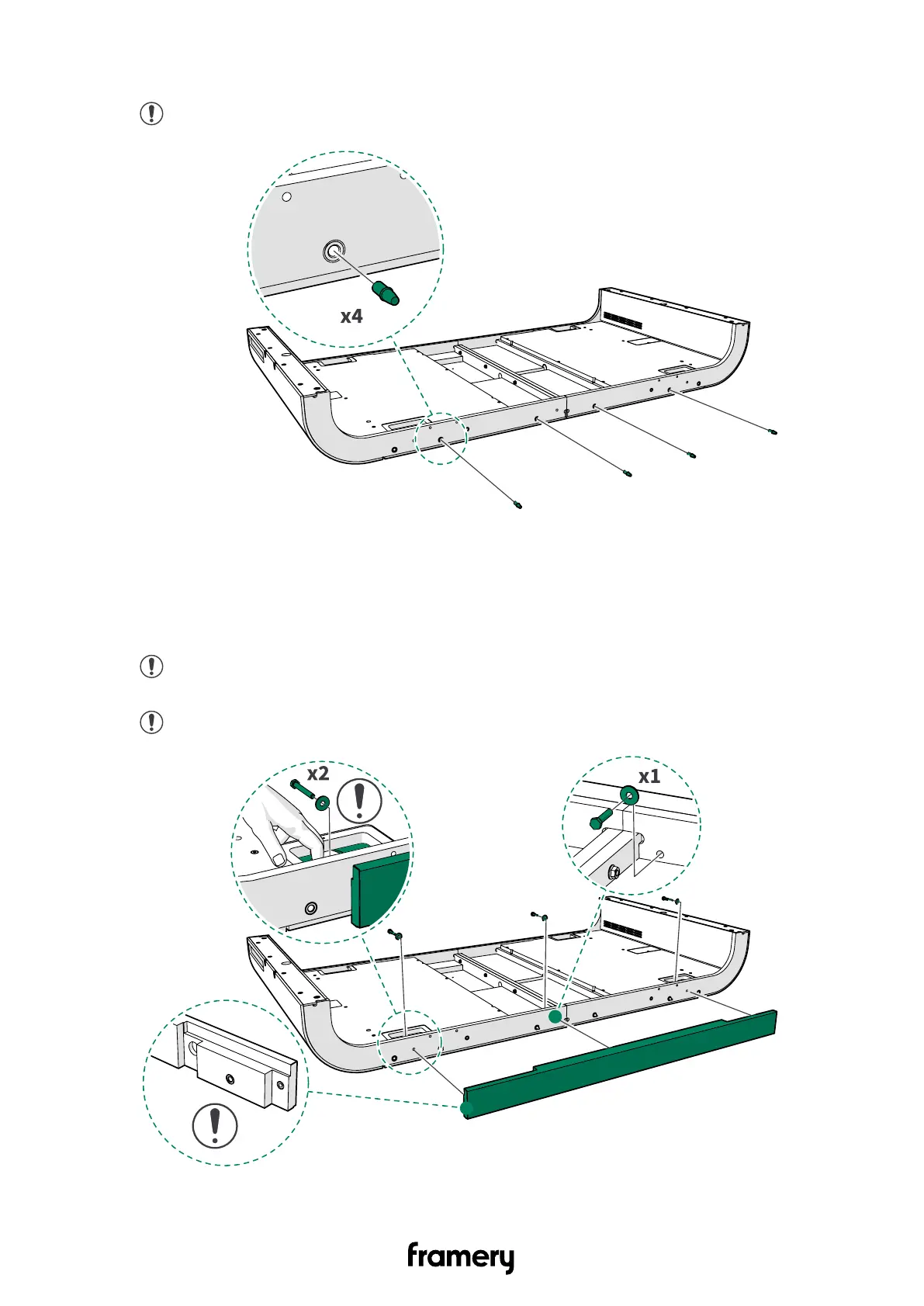

6. Install guide pins (4 pcs) to the holes on the front of the floor.
Note: Make sure that the flat side of the guide pin goes into the mounting hole.
7. Install the front lower frame to the front of the floor with M8x60 bolts (2 pcs) and M8
washers (2 pcs) at the small openings and with one M8x35 bolt and M8 washer at the
center opening.
Note: Press the acoustic panel aside to reach the bolt holes. Make sure that
you return the acoustic panel to its original position.
Note: Make sure that you install the correct frame to the front.
26
Installation instructions
