Framery Q (UL) Meeting Maggie

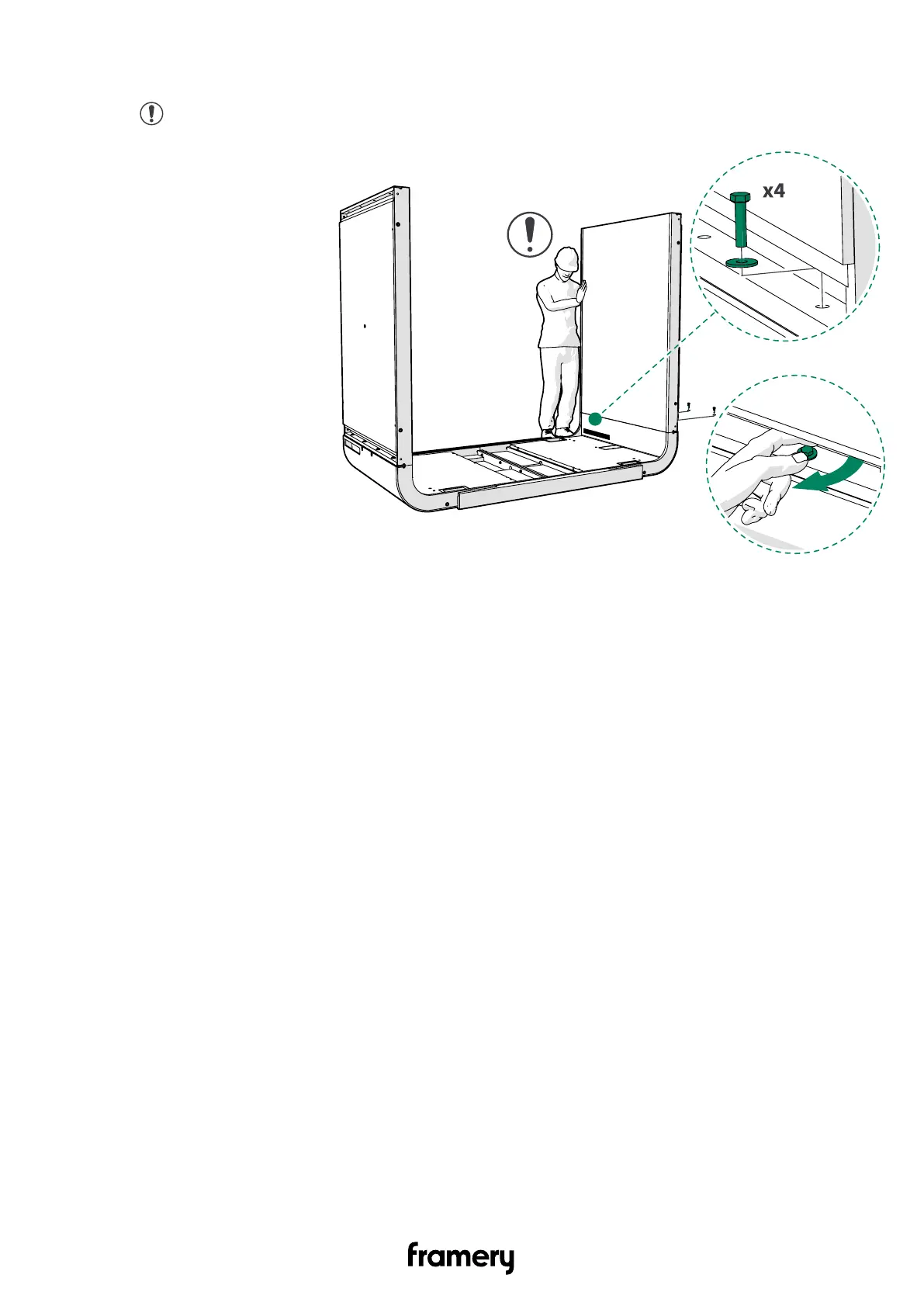

5. Install M8x35 bolts (4 pcs) and M8 washers (4 pcs) and tighten by hand.

Note: Support the wall until it is secured with the bolts.

Installation instructions
