Framery Q (UL) Meeting Maggie

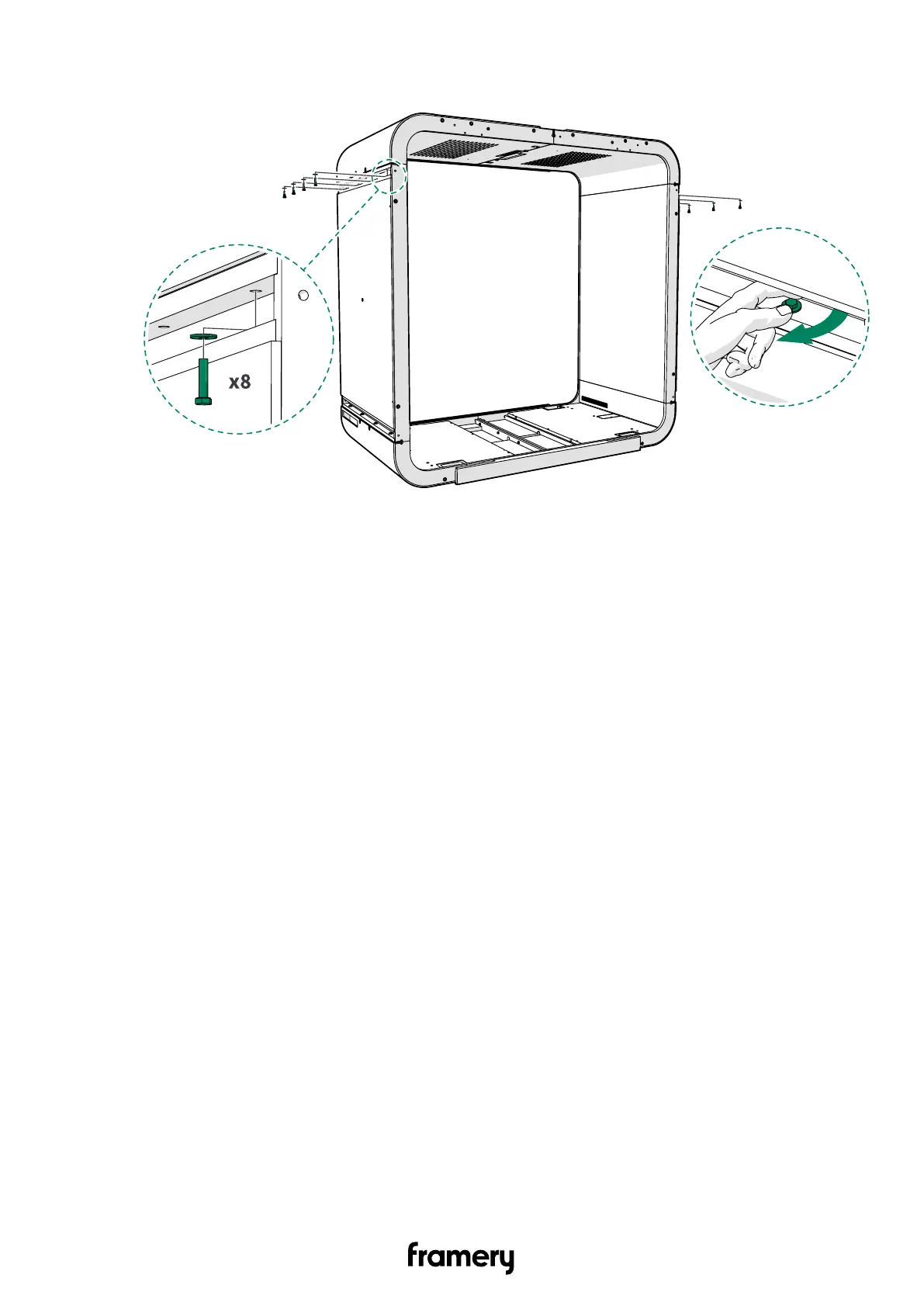

3. Install M8x35 bolts (8 pcs) and M8 washers (8 pcs) and tighten by hand.

Installation instructions
