Framery Q (UL) Meeting Maggie

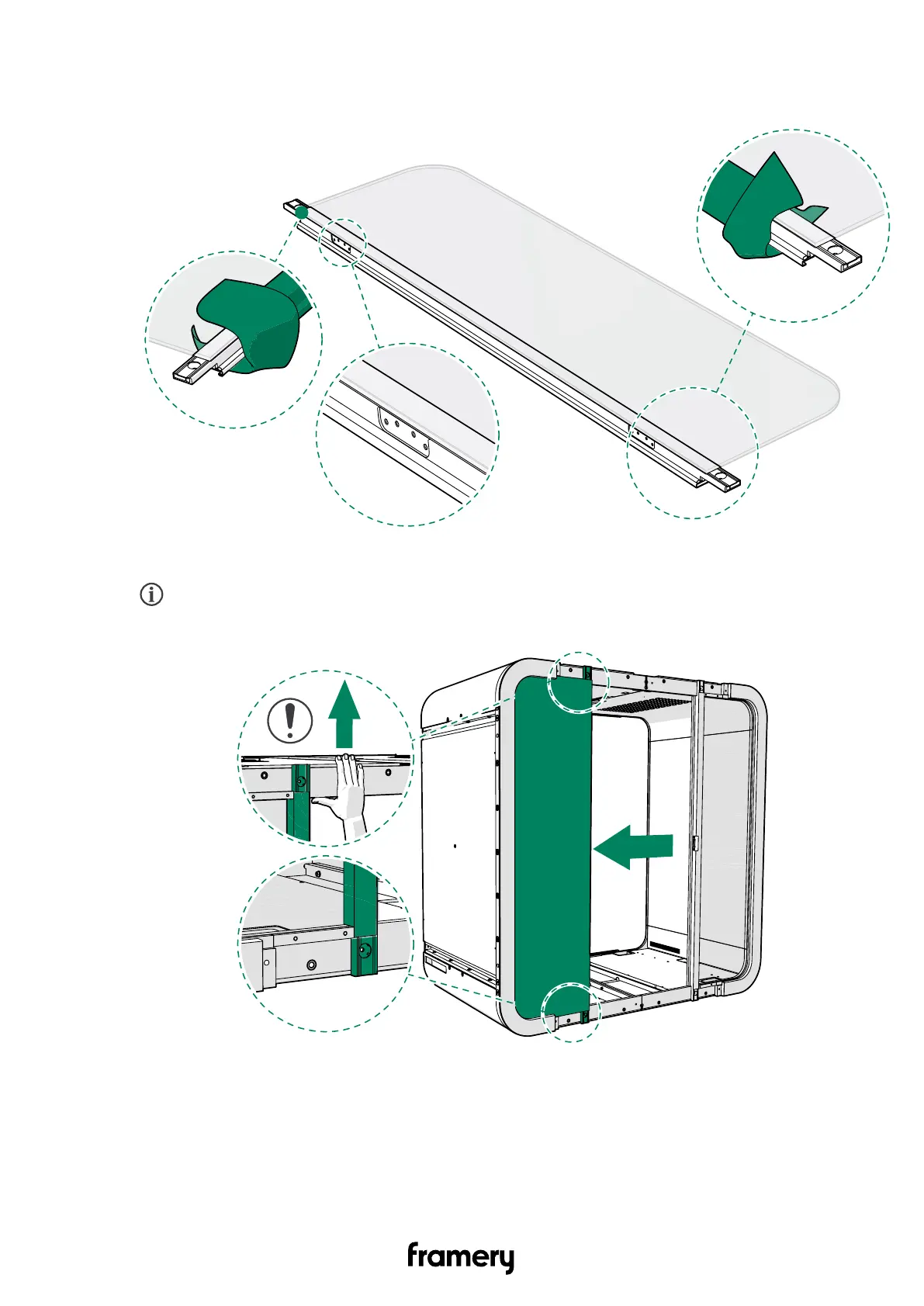

6. Remove approximately 10 cm (4 in) of the protective film from the top and bottom of
the aluminum frame of the hinge-side glass.
7. Guide the hinge-side glass into the grooves and slide it into place.
Tip: Push the roof up from the center joint at the front of the pod to make the
installation easier.
Installation instructions
info@frameryacoustics.com
51
