Framery Q (UL) Meeting Maggie

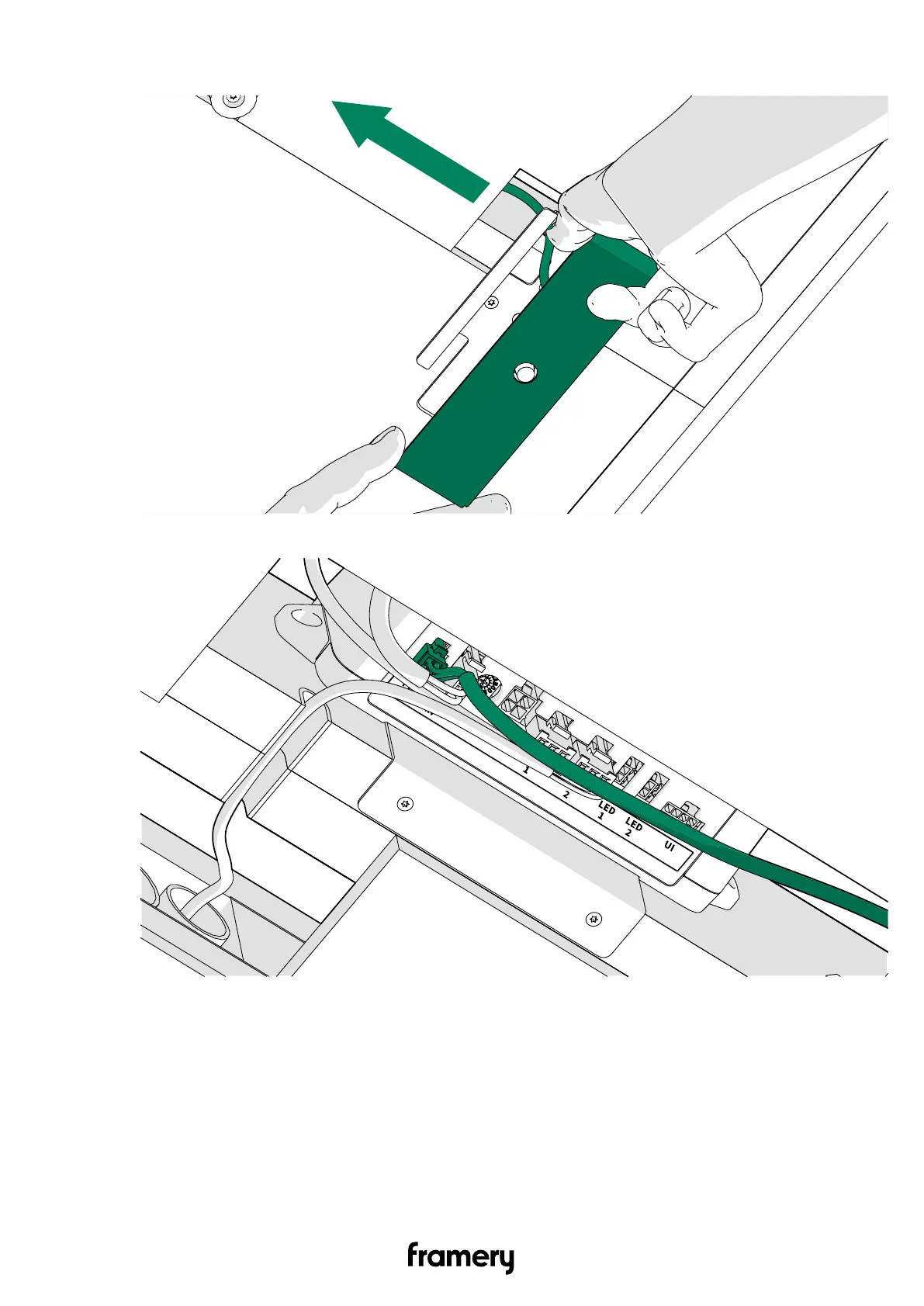

3. Guide the motion detector cord through the opening to the control unit.

4. Connect motion detector cord to the PIR connector of the control unit.

Installation instructions
