Framery Q (UL) Meeting Maggie

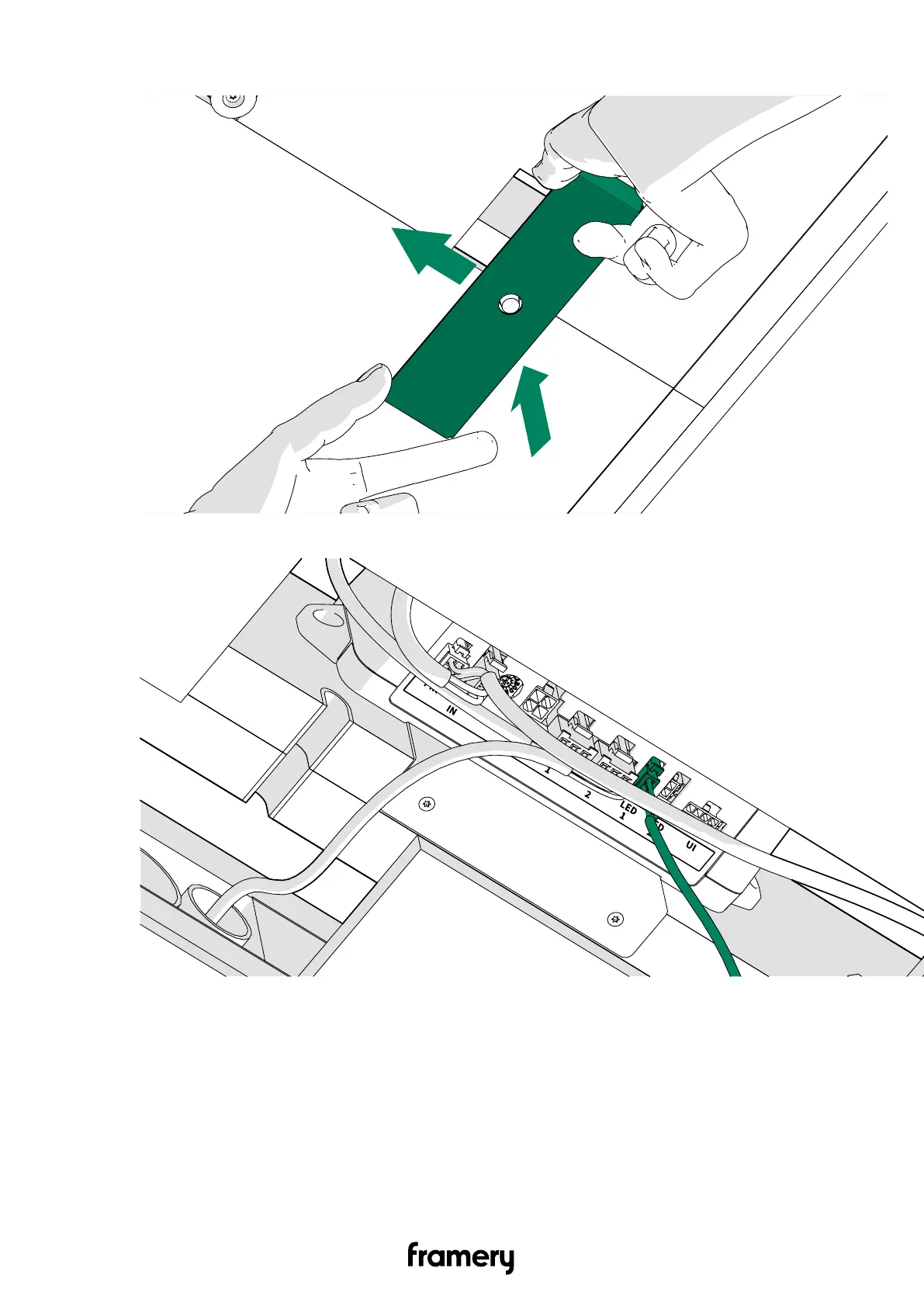

5. Lift the motion detector to the bracket and slide the motion detector into place.

6. Connect the light cord to the LED 1 connector of the control unit.

Installation instructions
