TCA200 Rev171031
11
Install Pressure Sensors
The two pressure sensors are mounted on the discharge and intake manifolds of the
pump. If there is a check valve in the discharge side of the pump, mount the discharge
sensor before the check valve. T-ttings can be used to mount the pressure sensors.
Note: Install the pressure sensor upright so that the water in the end of the
pressure sensor is able to drain back into the pipe.
1. Screw the sensor into a 1/4-18 NPT hole.
Caution: Do not use the main body that houses the electronics to tighten the
pressure sensor. Damage to the sensor may occur.
2. Tighten the sensor with a 7/8 inch wrench on the lower hex tting.
3. Connect the pressure sensor cable from the control module to the pressure
sensor. (Refer to Wiring Section.)

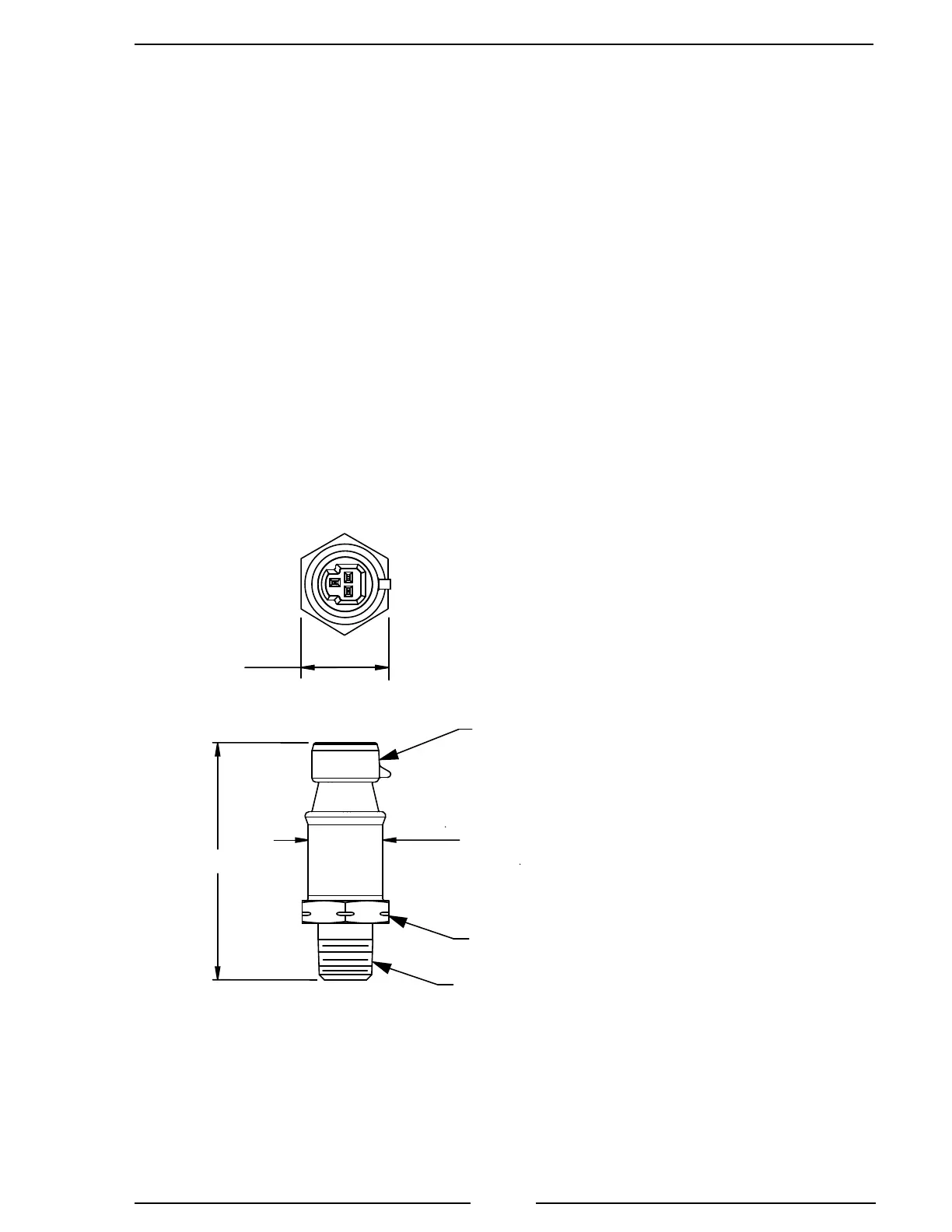

Figure 3. Pressure Sensor Dimensions
Caution: Do not use the main
body that houses the electronics
to tighten the sensor. Damage to
the sensor may occur.
Caution: The discharge and intake
pressure sensors are the same size.
Ensure the correct sensor is installed on
the correct manifold. Refer to Table 1.
1/4-18 NPT
7/8" Hex
0.75 [18.95]
2.37 [60.30]
Inch [mm]
Packard
Metri Pack
Connector
0.87 [22.05]
Across Flats
