Pressure Sensor

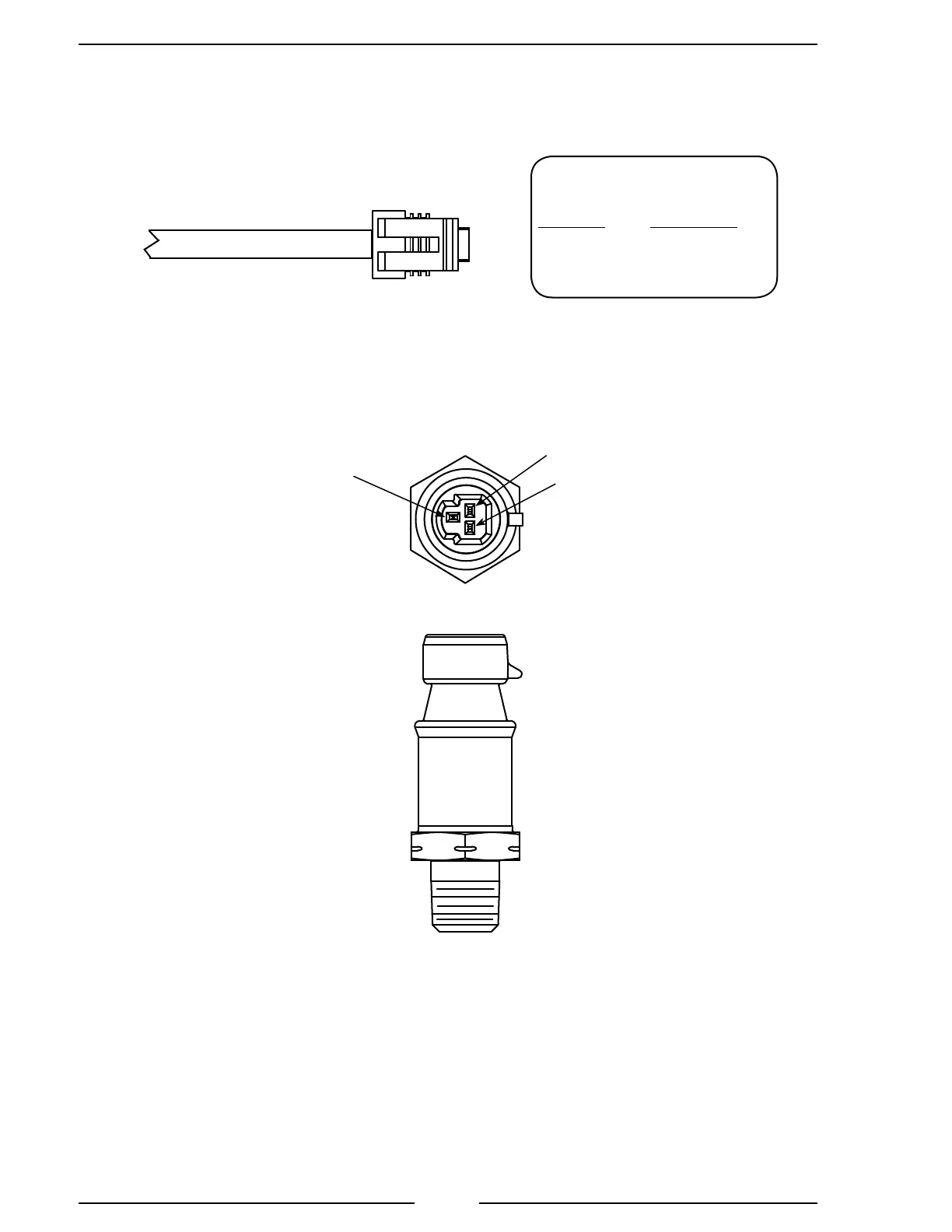

Figure 6. Pressure Sensor Wiring
Pressure Sensor
Side View
Pressure Sensor Cable
3-Pin Connector
Pin/Wire Description
A/Black Ground
B/Red Supply Voltage
C/White Signal
Pressure Sensor
Top View
Pressure Sensor
Cable
Caution: The discharge and intake pressure
sensors are the same size. Ensure the
correct sensor is installed on the correct
manifold and the correct sensor cable is
connected. Refer to Table 1.
Signal
Output
Supply
Voltage
Ground
