TCA200 Rev171031
9
MENU Button
Used when accessing detailed information and program features. (Detailed
information shown includes engine oil pressure, engine coolant temperature,
transmission temperature, battery voltage, engine hours, and pump hours with the
exact measure and units.)
SILENCE Button
Suppresses audio alarms and used in programming.
STOP ENGINE / CHECK ENGINE LED
Repeats the engine warnings from the cab.
RPM Display
Shows the engine RPM during normal operations.
Message Display
The message display shows the pressure or RPM setting during normal operations,
warning alarms as they occur, and detailed information when the menu button is pressed.
It shows the time and date when the throttle ready LED is off. It is also used to show
stored data and program features.
THROTTLE READY LED
This LED is on when the required interlock conditions are met and the governor
is ready to begin operations.

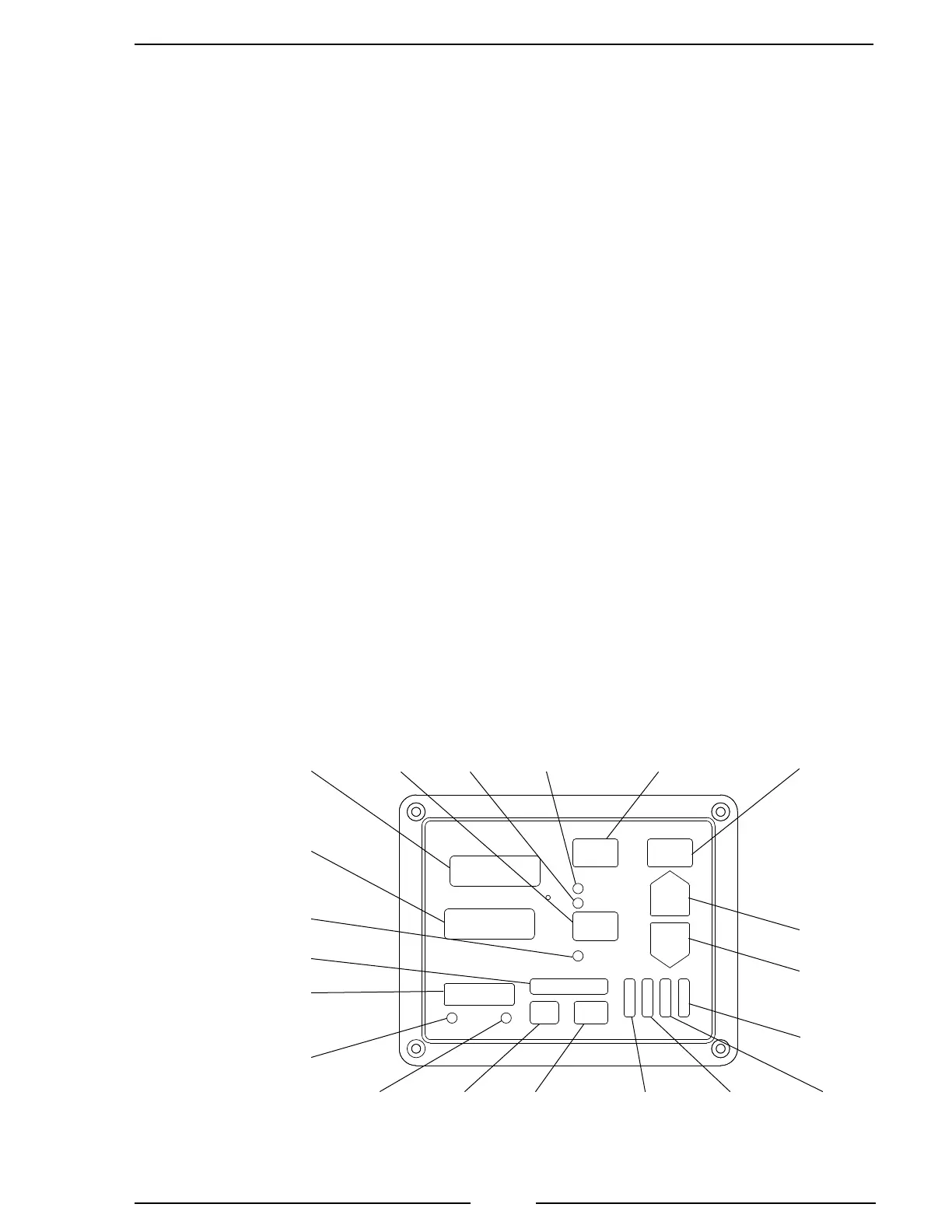

Figure 1. Controls and Indicators
A sensor adjusts LED
brightness to day/night
conditions.
PUMP
DISCHARGE
Display
PRESSURE
LED
CHECK
ENGINE
LED
STOP
ENGINE
LED
PRESET
Button
MODE
Button
MENU
Button
RPM
LED
RPM
Display
SILENCE
Button
Battery
Voltage
Display
Transmission
Temperature
Display
Engine
Temperature
Display
Engine Oil
Pressure
Display
INC
Button
DEC
Button
THROTTLE
READY
LED
Message
Display
IDLE
Button
PUMP
INTAKE
Display
