TCA200 Rev171031
25

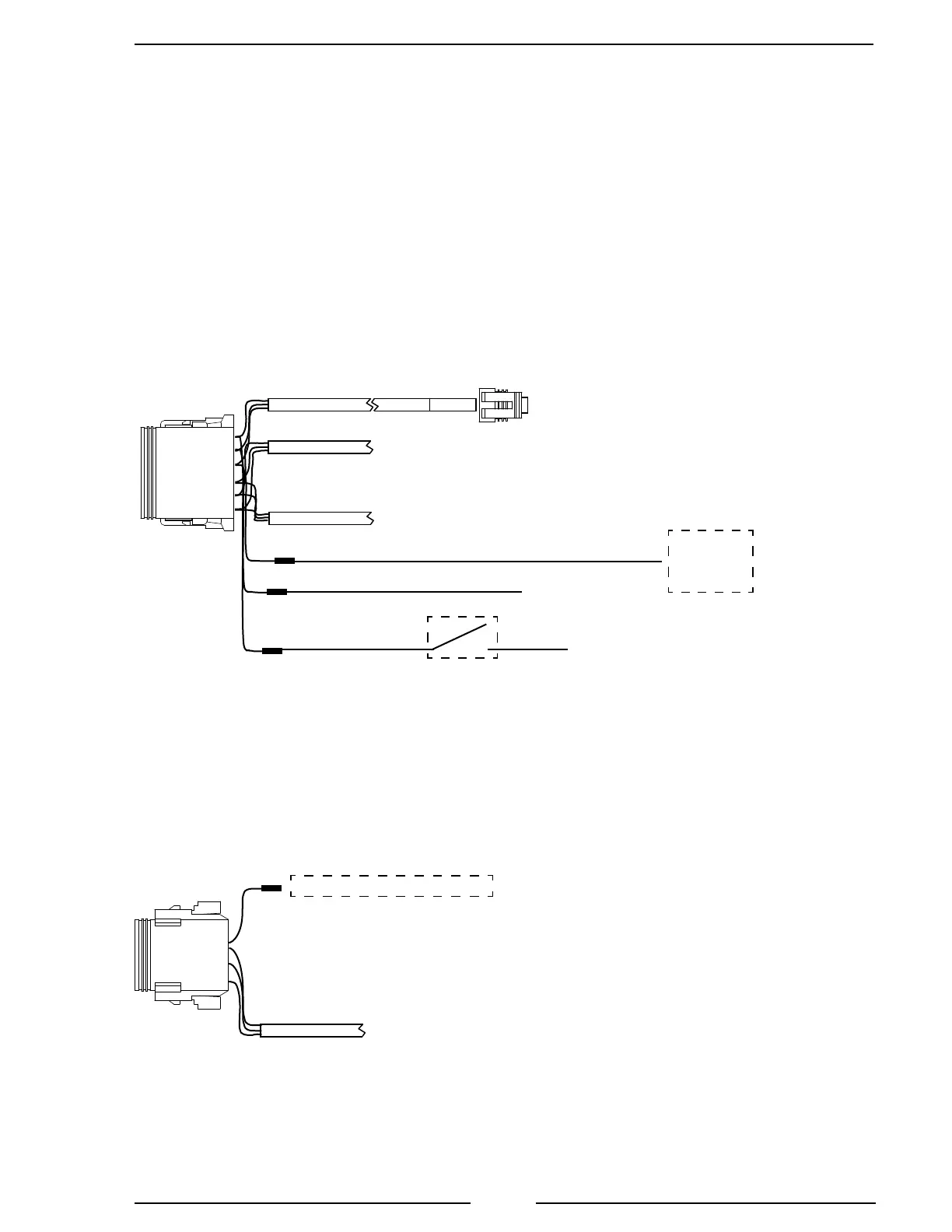

Figure 5. TCA200 Interface Wiring
RED
To Intake Pressure Sensor
+12 VDC
Ignition Key
+12 VDC
Interlock
Circuit
GND
WHT
BLK
RED
BRN
To Ground Side of Buzzer
To Engine Control
(DDEC III ECMs) (Refer to Figure 8)
To J1587 Datalink/J1939 Datalink
To Existing Harness to Discharge Pressure Sensor
12-Pin
Connector
8-Pin
Connector
Connectors and Cables
When replacing an older Detroit Diesel governor, connectors with wiring are
provided to utilize some of the existing harness. New wiring is required for the intake
pressure sensor and engine control.
