33| USER MANUAL
RECOMMENDED RECEIVER PLACEMENT
FUTABA
Mount Futaba receivers 15mm from the wiring grommet for easy S.Bus wire
installation and removal (See Radio Controller Receiver step 7a).
SPEKTRUM/JR SATELLITES
Mount satellites so antennae are blocked by the airframe as little as possible. If
using two receivers, place them at a 90° angle to each other. (See Radio Controller
Receiver 7b)
VOLTAGE TELEMETRY
ALTA supports battery voltage telemetry on Futaba radios using a receiver that
supports an external voltage sensor, such as the R7008SB. To set up ALTA with
voltage telemetry for Futaba radios:

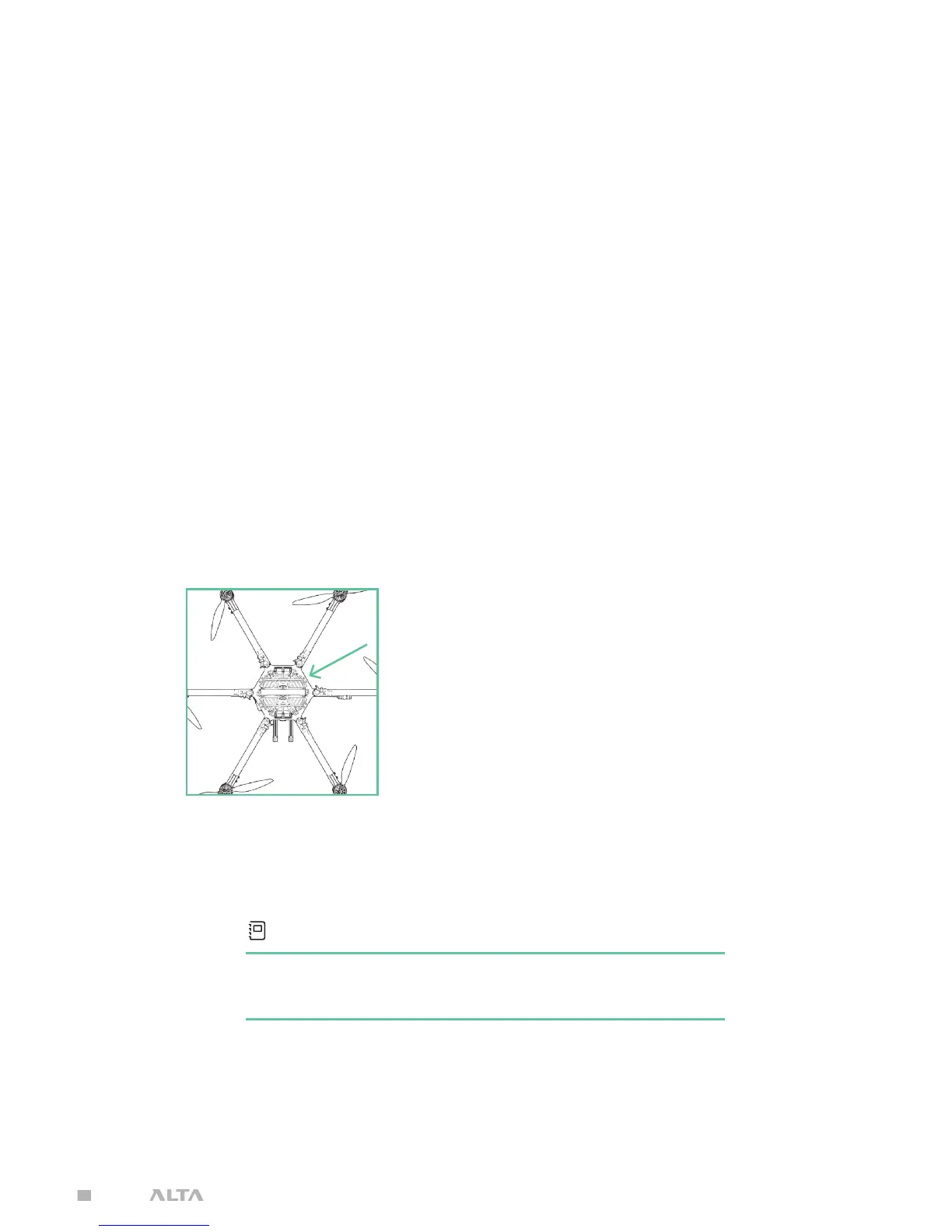

1. Locate the radio receiver wire bundle behind the
closeout panel between booms 1 and 2.
2. Identify the voltage sense wire and connector in the bundle. It is the small,
2-pin white connector attached to a black and red twisted wire pair.
NOTE
This wire is already connected to an in-line fuse.
Soldering a fuse into this wire is not required.
