51| USER MANUAL
FIRST PERSON VIEW (FPV)
ALTA and SYNAPSE can power a variety of first person view (FPV) cameras and
transmitters, as well as add informational on-screen display (OSD) elements to aid
in FPV flying.
Two FPV transmitter cables are included. The cable with two connectors on one of
the ends will run ImmersionRC and Fat Shark systems, and the cable with a single
connector on the end will run Boscam and SkyZone systems.
A single camera cable is provided, and is configured to run a Ready Made RC
camera.
Camera and transmitter cables follow this wiring scheme:
CABLE COLOR FUNCTION
Red +12 VDC
Black Ground
Yellow Video signal
WARNING
It is the responsibility of the pilot to see and avoid other aircraft,
people or obstacles. Always maintain direct line of sight with ALTA
during flight, use visual observers as operations require, and
follow local regulations regarding see-and-avoid requirements.
FPV SYSTEM INSTALLATION
CAMERA

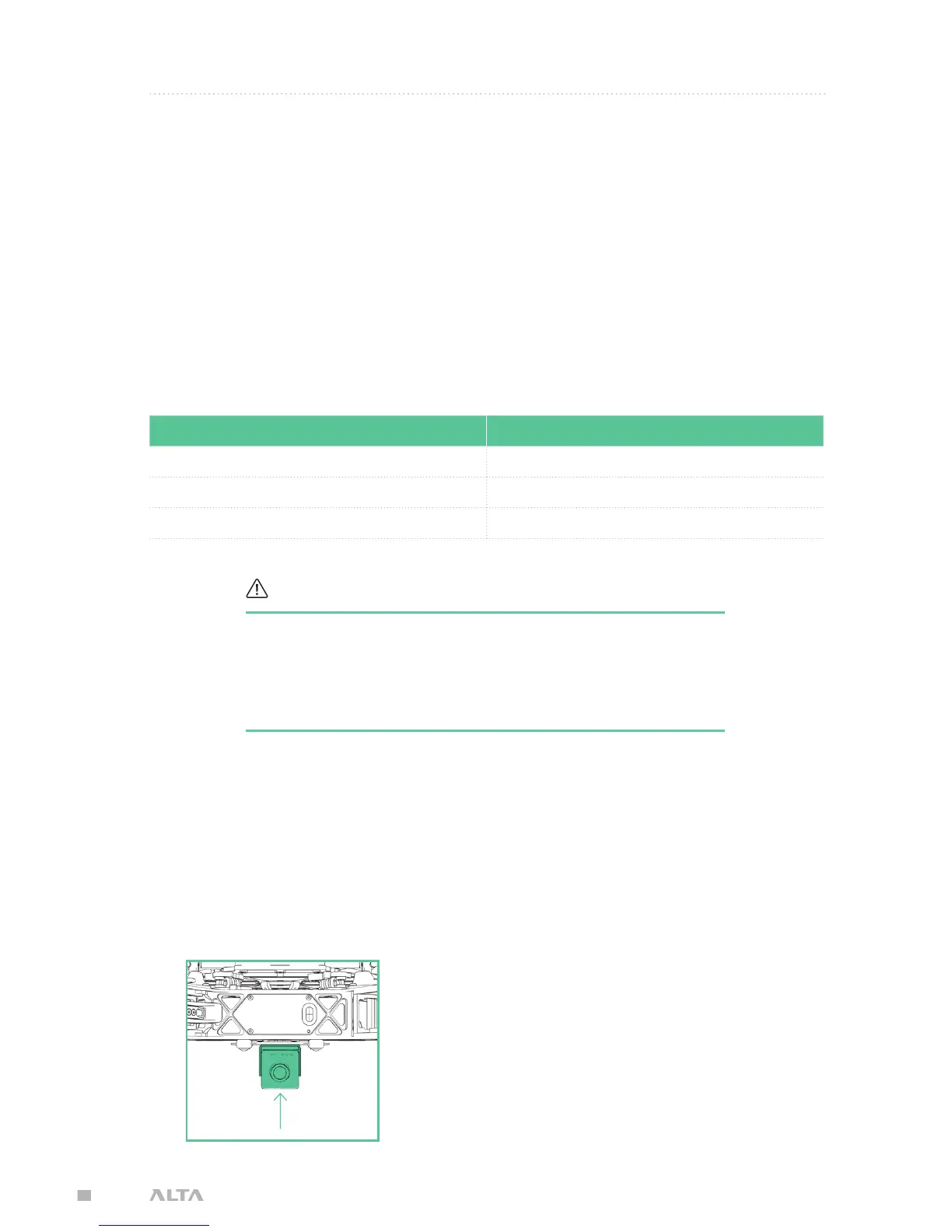

1. Mount FPV camera on the FPV mount on the front
underside of ALTA or other preferred location.
