49| USER MANUAL
PROPELLERS
FORWARD

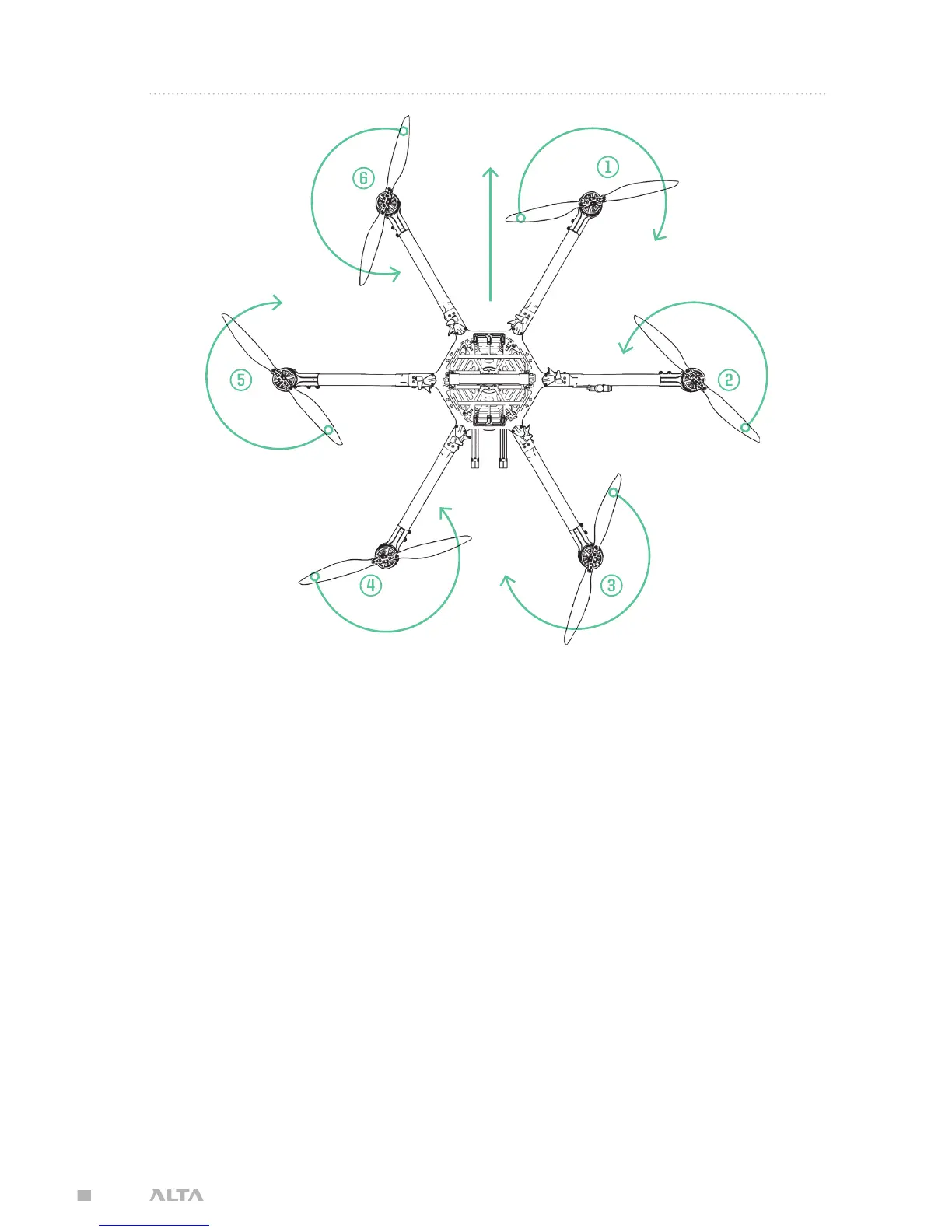

The folding propellers include two carbon fiber propeller blades attached to prop
hubs, which are themselves secured to the motors. The propellers installed on
booms 1, 3 and 5 spin clockwise when viewed from above ALTA, and the propellers
installed on booms 2, 4 and 6 spin counterclockwise when viewed from above.
For information on propeller installation and maintenance, refer to the Maintenance
section of this manual.
