211

Chapter 19 74HC595 & LED Matrix

█ www.freenove.com

support@freenove.com █

Circuit

In this project circuit, the power pin of 74HC595 is connected to 3.3V. It can also be connected to 5V to make

LEDMatrix brighter.

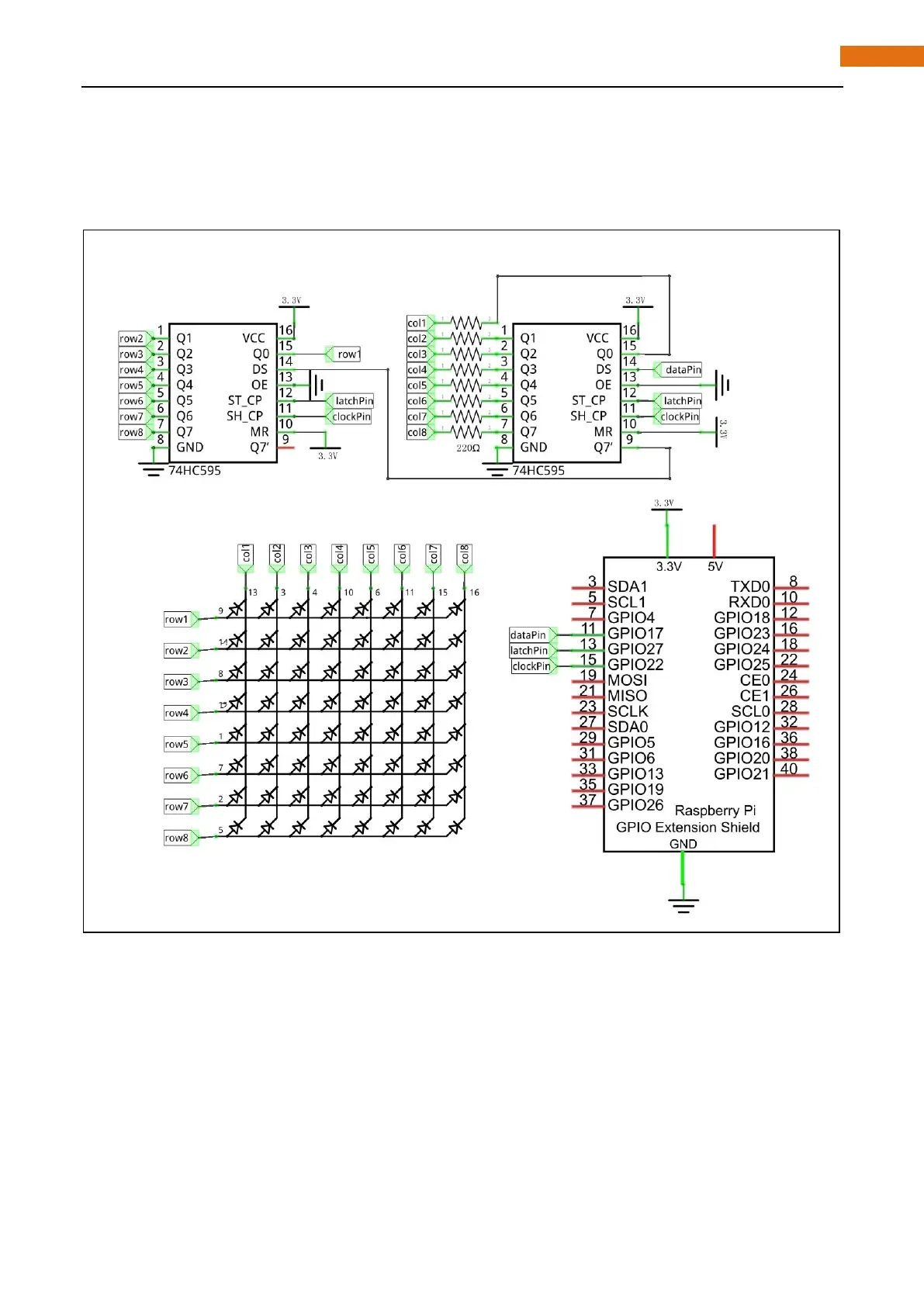

Schematic diagram
