Telltales, Indicator Icons, and Messages
Lamps
Telltale Color Description Related Information
Green
Right-Turn
Indicator On
Flashing indicates the outside right-turn signal
lamps are activated.
Green
Left-Turn Indicator
On
Flashing indicates the outside left-turn signal
lamps are activated.
Blue High-Beams On Indicates the high-beam headlights are on.
Green Low-Beams On Indicates the low-beam headlights are on.
Blue
Automatic High-
Beams On
Indicates the high-beam headlights have been
set to automatic and are on.
Grey
Automatic High-
Beams Off
Indicates the high-beam headlights have been
set to automatic and are off.
Green
Automatic Low-
Beams On
Indicates the low-beam headlights have been
set to automatic and are on.
Grey
Automatic Low-
Beams Off
Indicates the low-beam headlights have been
set to automatic and are off.
Green
Daytime Running
Lamps On
Indicates the daytime running lamps are on.
Blue
Auxiliary Drive
Lamps On
Indicates the auxiliary drive lamps are on.
Blue Utility Lamps On Indicates the utility lamps are on.
Green
Taillights / Marker
Lamps On
Indicates the taillights, aka marker lamps, are
on.

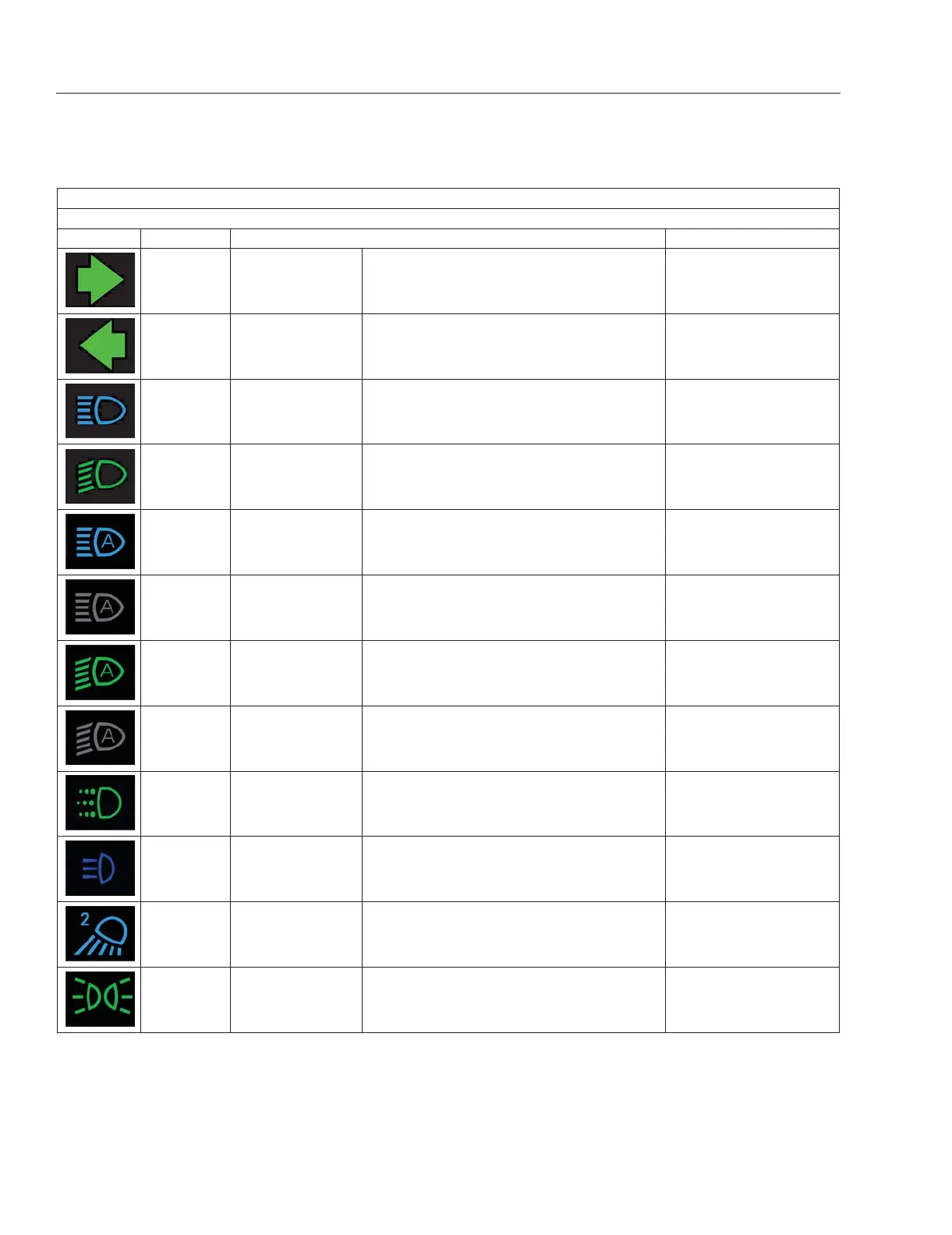

Table 3.13, Lamp Indicators
