Telltales, Indicator Icons, and Messages
Passenger Safety

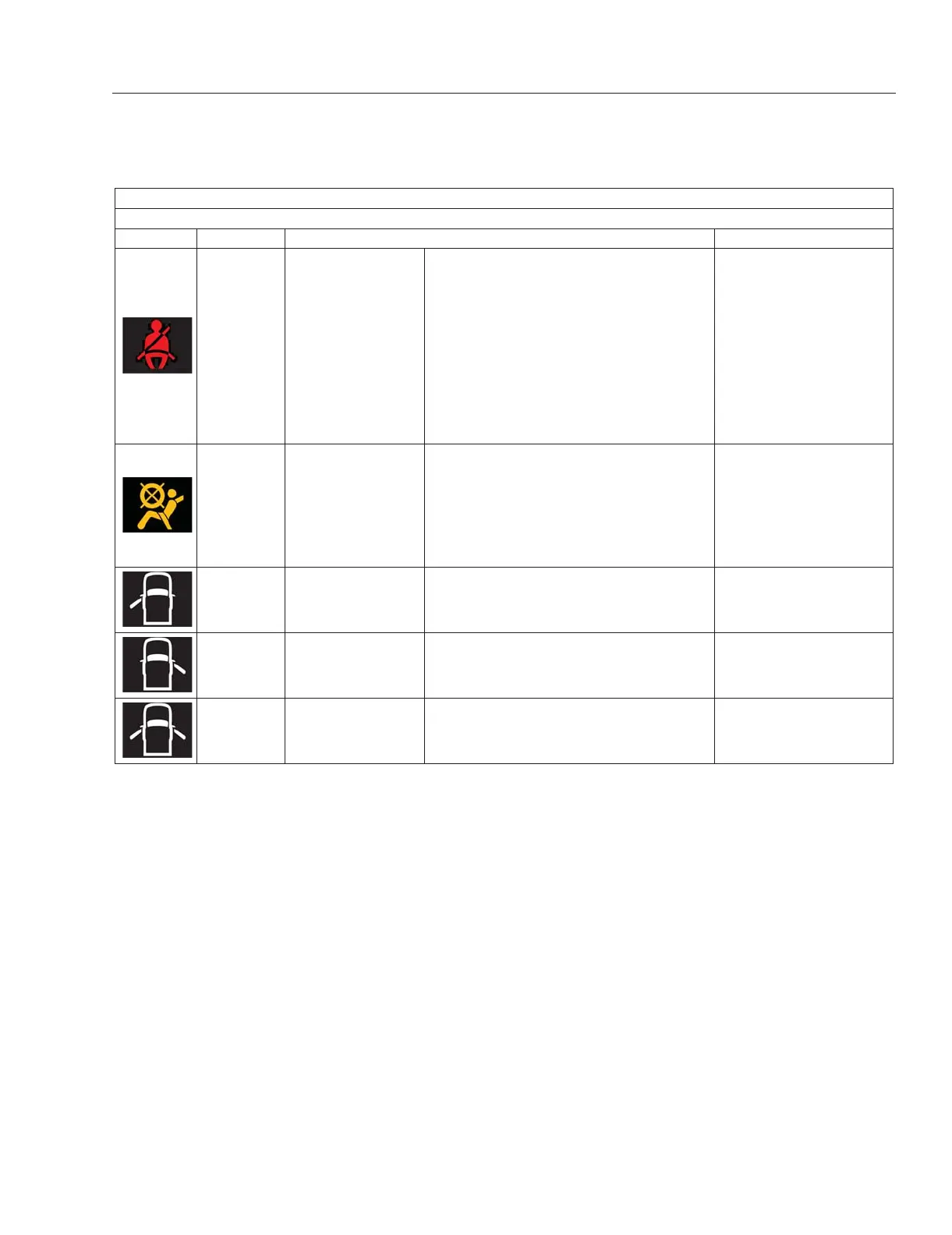

Telltale Color Description Related Message
Red
Unfastened Seat
Belt
On some vehicles, activates with an audible
alert when the system detects that the
parking brake is off and the driver seat belt
is not fastened.
On vehicles with a seat occupancy sensor,
the seat being occupied, seat belt not
fastened, and parking brake off will cause
this warning to activate.
On other vehicles, this lamp illuminates for
15 seconds when the ignition is first turned
on.
Amber
Supplemental
Restraint System
(SRS) Error
Indicates a malfunction has occurred in the
restraint system and restraint system
components may be triggered
unintentionally or may not deploy as
intended during an accident.
Have the restraint system checked and
repaired immediately.
White
Left-Hand Door
Unlatched
M2 crew cab left-hand door unlatched
White
Right-Hand Door
Unlatched
M2 crew cab right-hand door unlatched
White
Both Doors
Unlatched
M2 crew cab both doors unlatched
Table 3.14, Passenger Safety Indicators
