The front axle transfer case switch directs power to
the front axle. To engage the front axle, press the
upper half of the rocker switch. To disengage it,
press the lower half of the switch. See
Fig. 4.20.
Front Axle Transfer Case Range
Switch
CAUTION
Stop the vehicle and set the parking brake before
selecting the neutral (N) position on the transfer
case range switch to prevent the vehicle from
rolling, and causing damage and/or personal
injury.
Use the range switch when the steering axle has
been engaged.
There are two possible transfer case range switches:
a two-position rocker switch with LO and Hi range, or
a three-position switch that has a third, neutral (N)
position, for vehicles with a PTO unit. See
Fig. 4.21.
B
2
3
1
( + )
( − )
4
05/30/2012 f270163a
A
C
A. Front View
B. Shift Up/Down Requests
C. Four positions for engine brake settings
1. Engine Brake Symbol
2. Drive/Neutral/Reverse Switch
3. Shift Mode Switch (Economy/Performance/Manual)
4. Gear Shift Symbol

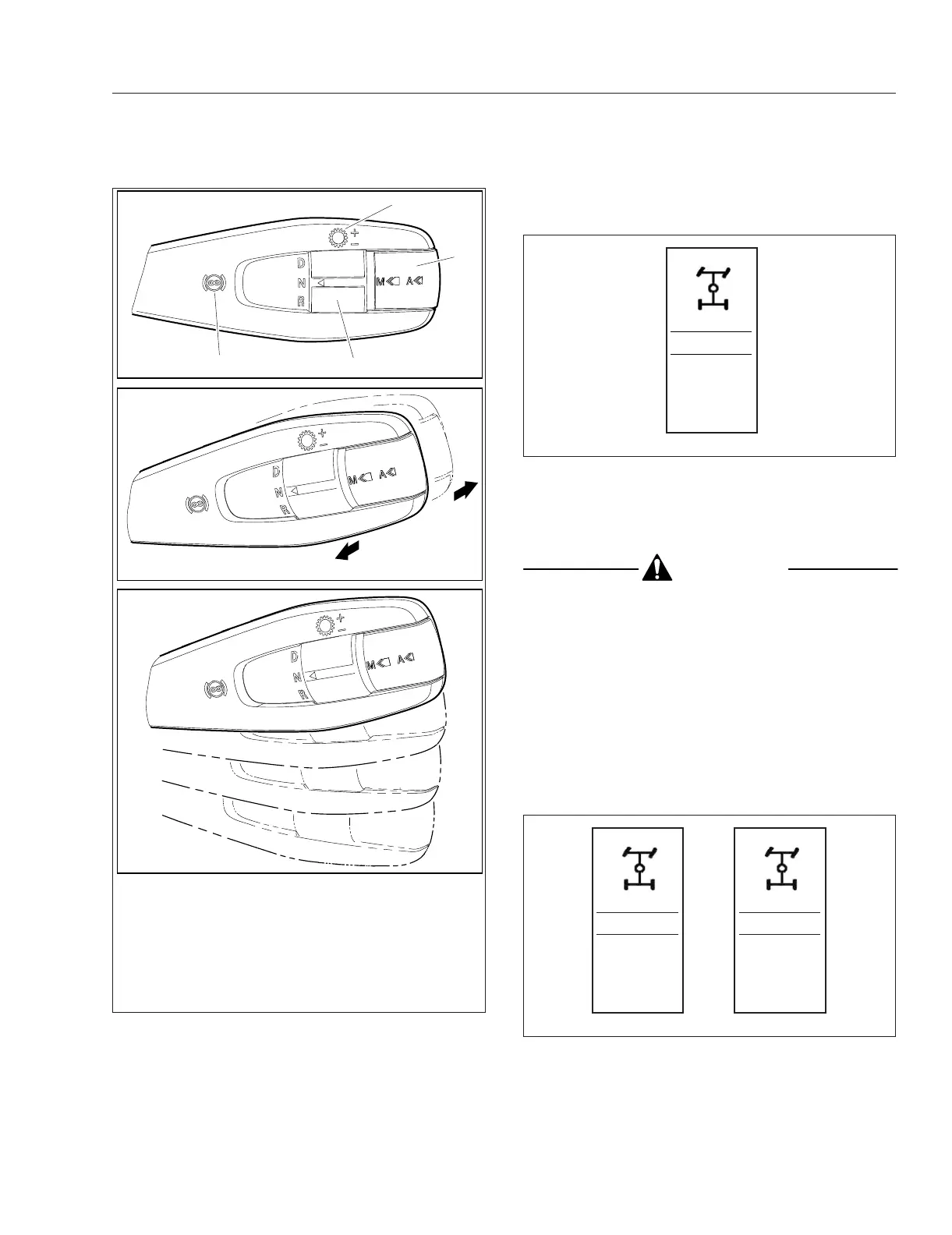

Fig. 4.19, Automated/Automatic Transmission
Multifunction Control
f61219812/ /202201
X-FER
CASE
Fig. 4.20, Front Axle Transfer Case Switch
f61184507/07/2020
X-FER
L/H/N
X-FER
LO/HI
Fig. 4.21, Transfer Case Range Switches
Driver Controls
4.10
