Frick QUANTUM HD UNITY User Manual

QUANTUM™ HD UNITY SYSTEM CONTROLLER
MAINTENANCE
090.670-M (APR 2020)
Page 14

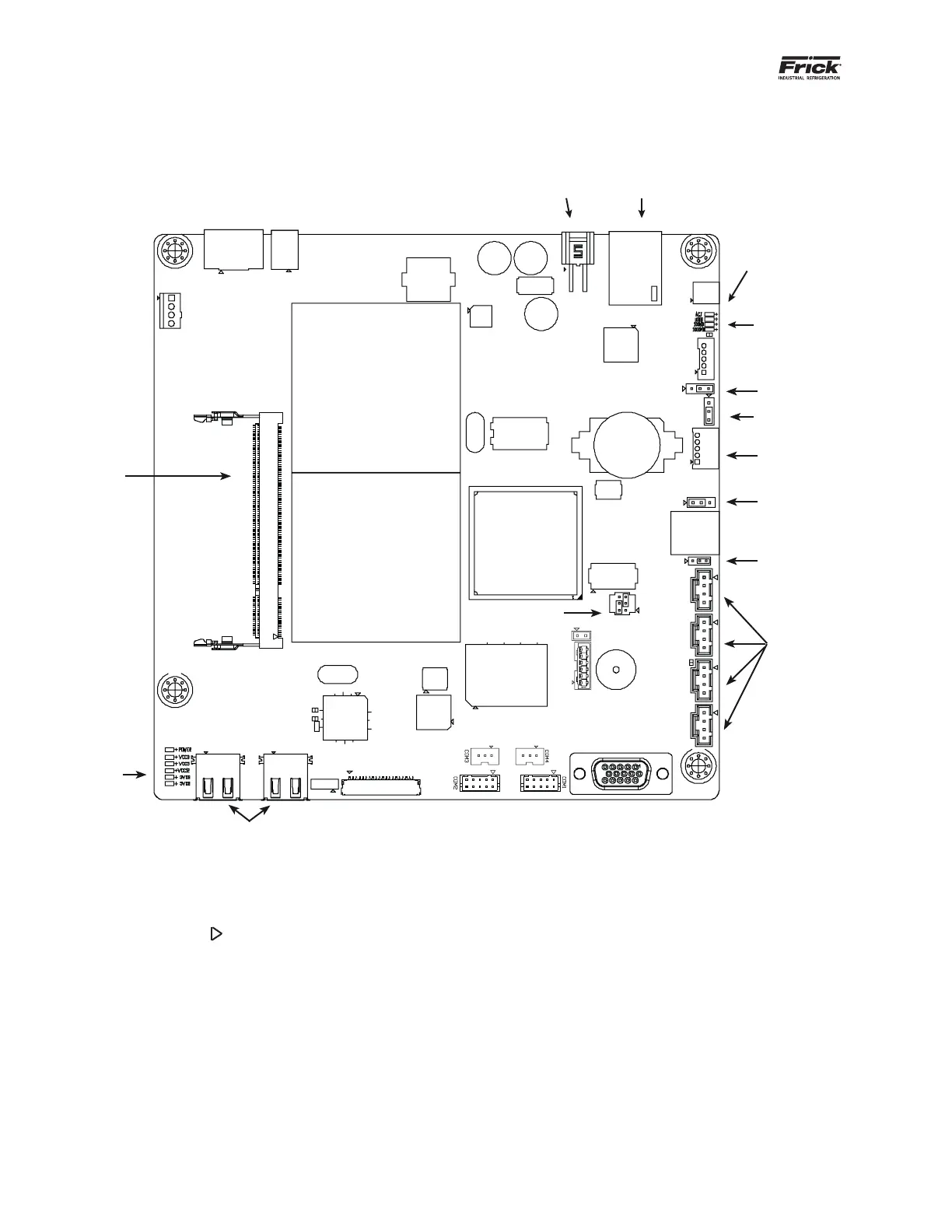

Figure 6: Q5 processor board diagram
Notes:
1. The triangle symbol ( ) denotes Pin 1 on connectors. See Q5 Processor Board Jumpers, LEDs, and Connectors for jumper
settings.
2. Do NOT remove the CN4 jumper. Removal of this jumper will cause the processor to not power up.
3. Although the Q5 processor board is the main controller, most of customer connections will be to the Interface board, as
shown later.
CN1
Ethernet
Connector
CN_POWER1
Power
Connector
USB
Ports
Ethernet
LED’s
JLVDS3
JLVDS2
CMOS1
CN3
INVERTER1
Inverter
Connector
Flash Card
located under
the board
here
CN1000
PO
WER
LED’s
DIMM1
USB
Ports
LVDS1
Display
Connector
COM2
RS-422/
485
COM1
RS-422/
485
COM4
RS-485
COM3
RS-485
CRT1
Video
Monitor
BH1
Battery
FUSE
