QUANTUM™ HD UNITY SYSTEM CONTROLLER
MAINTENANCE
090.670-M (APR 2020)
Page 23

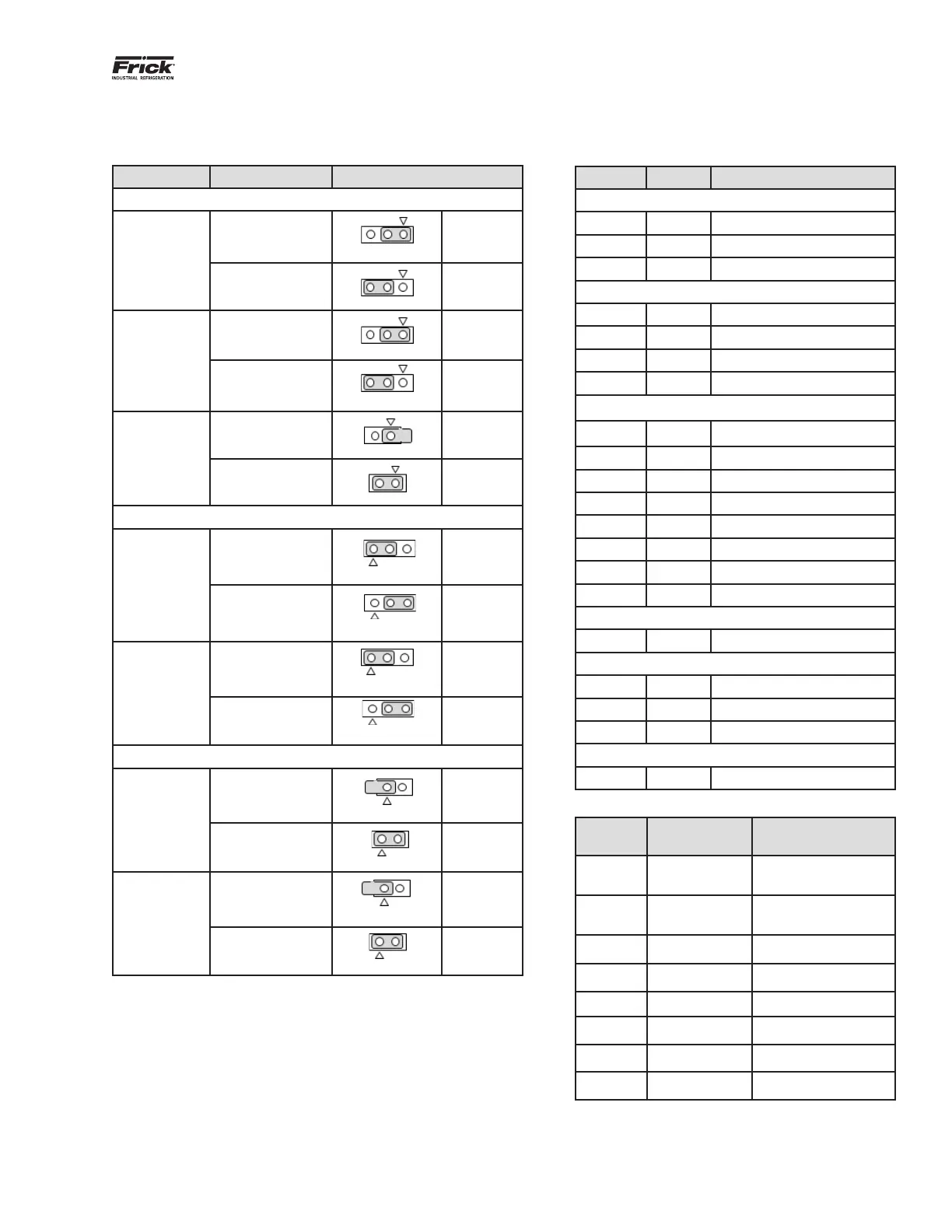

Table 7: Q6 Board jumper settings
Jumper title Function Jumper setting
LCD backlight
J19
(Backlight
Type)
LED
(default)
1 - 2
Closed
CCFL
2 - 3
Closed
J18
(Backlight
Voltage)
12v
(default)
1-2 Closed
5v 2-3 Closed
J9
(CCFL PWM)
Disabled
(default)
1 Pin Only
Enabled 1-2 Closed
LCD LVDS
J14
(LCD Volt-
age)
3.3v
(default)
1-2 Closed
5v 2-3 Closed
J20
(LCD Resolu-
tion)
HD
(default)
1-2 Closed
LX 2-3 Closed
Serial communication - Termination resistors
J35
(COM2 Re-
sistors)
Disabled
(default)
1 Pin Only
Enabled 1-2 Closed
J33
(COM1 Re-
sistors)
Disabled
(default)
1 Pin Only
Enabled 1-2 Closed
Q6 Processor Board Jumpers, LEDs, and Connectors
3 2 1
3 2 1
3 2 1
3 2 1
2 1
2 1
1 2 3
1 2 3
1 2 3
1 2 3
1 2
1 2
1 2
1 2
Table 8: Q6 LED denition
Label Color Function
Power LEDs
D35 Green 12 V Power OK
D36 Green 5 V Power OK
D37 Green 3.3 V Power OK
Status LEDs
D4 Blue Quantum Software OK
D5 Green Processor Power OK
D6 Amber (Future Use)
D7 Amber (Future Use)
Serial communication activity LEDs
D20 Green COM4 Rx Activity
D21 Green COM4 Tx Activity
D23 Green COM3 Rx Activity
D24 Green COM3 Tx Activity
D26 Green COM2 Rx Activity
D27 Green COM2 Tx Activity
D29 Green COM1 Rx Activity
D30 Green COM1 Tx Activity
Touchscreen Activity LED
D8 Green Touch Detected
SATA activity LEDs
D1 Green SATA Bus Activity
D2 Green CFast Card Activity
D3 Green Auxiliary SATA Activity
SD Card activity LED
D19 Green SD Card Activity
Position Enable state Function
1 On Restore Default
Setpoints
2 On Reset Default IP
Address
3 On (Future Use)
4 On (Future Use)
5 On (Future Use)
6 On (Future Use)
7 On (Future Use)
8 On (Future Use)
