QUANTUM™ HD UNITY SYSTEM CONTROLLER
MAINTENANCE
090.670-M (APR 2020)
Page 57
Service – Software – Upgrade software

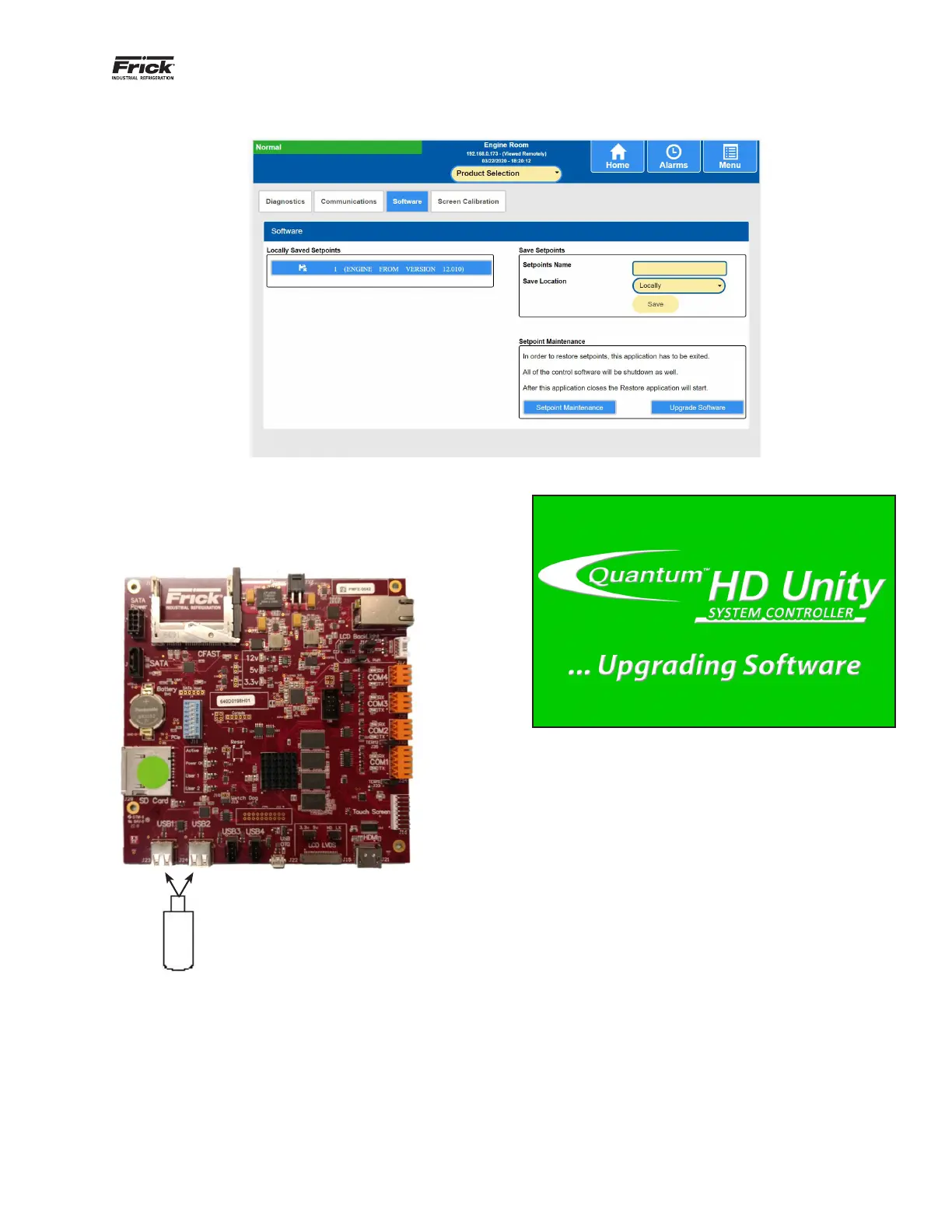

Upgrade Software: Plug a USB Thumb Drive with the soft-
ware upgrade le into the respective product processor
board.
Figure 42 : USB plug-in locations
Q6 Processor Board USB
Plug-in locations
Press the Upgrade Software button on-screen to initiate
the upgrade process.
During the Upgrading process, the green status page below
will appear advising the status of the upgrade. Once the
upgrade is complete, the program rolls out to the System
Overview page and the user must login again.
Verify that the program was upgraded by going to the
About screen to see the current Software Version and Re-
lease Date.
To Next Page
