QUANTUM™ HD UNITY SYSTEM CONTROLLER
MAINTENANCE
090.670-M (APR 2020)
Page 54
Service – Software – Saving setpoints
Saving Setpoints: The Software Service page provides the
means to save, restore, delete or restore default setpoints.
This page is also where software versions for the various
products can be upgraded from one version to another.
Save setpoints before major conguration changes or
when a scheduled calibration is done. Calibration offset
values are saved as part of the setpoints le.
To save setpoints, the setpoints le must be named. Touch
the Setpoints Name box and use the onscreen keyboard to
enter the name of the le.
Once the le is named, select to save the le Locally (to
the ashcard) or to a USB Thumb Drive.
A thumb drive must be mounted on the respective con-
troller prior to pushing the Submit Changes button. If set-
points are to be saved Locally it is not necessary to mount
a thumb drive. It is suggested that any set of setpoints/
conguration that is saved locally also be saved to a USB
Thumb Drive as backup.

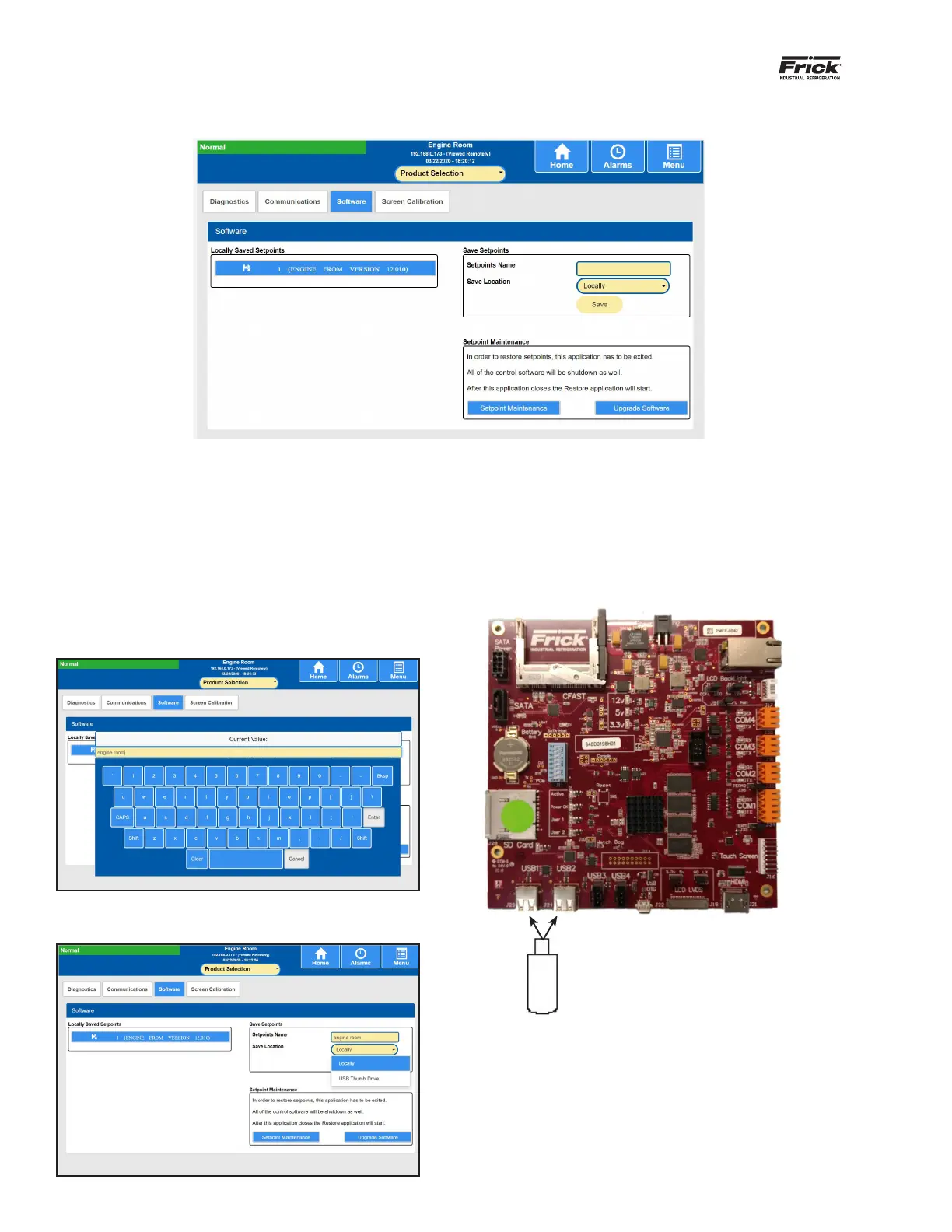

Figure 41: USB plug-in locations
Q6 Processor Board USB
Plug-in locations
Insert USB thumb drive (formatted as FAT32) into one of
the USB ports at the lower left corner of the processor
board, select USB Thumb Drive as the Save Location and
touch Submit Changes.
