23 PB
OPERATION

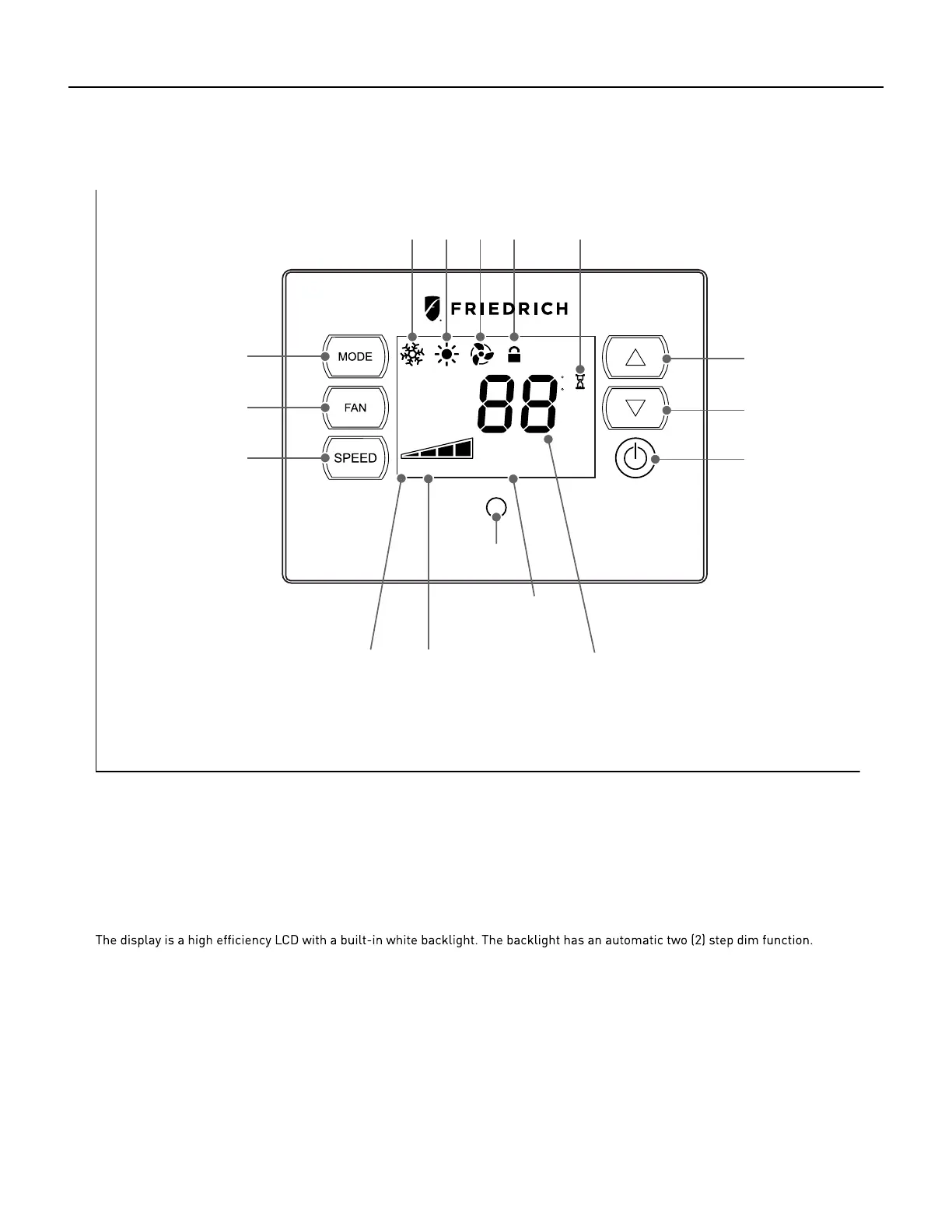

Wall Controller
SET POINT
ROOM TEMP
AM
PM
F
CONTINUOUS
AUTO FAN
AUTO SPEED
C
Push Buttons
There are three control push buttons on each side of the display. Each push button illuminates to indicate that the power is on.
The backlight on the push buttons will automatically dim to 20% intensity after 15 seconds of inactivity.
Display
After 15 seconds of inactivity, the display dims to 20% intensity. After an additional 120 seconds, the display switches off.
Touching any button automatically changes the display to full brightness. [Unless the Motion Sensor is activated.]
Wiring
Use Cat 6 cable in twisted pair strands.
For VRPXEMRT1 & VRPXEMWRT1, refer to respective Installation & Operation Manuals
CHECK
FILTER
2 Digits Display
Shows setting for:
-Set point (Temperature)
-Room Temperature
Increment ‘Up’
Temperature
ON/OFF:
Temperature
Increment ‘Down’
Turn unit
on/off
Mode:
Cycles between
Heat, Cool or Fan Only
Fan:
Sets fan to either
cycle automatically
or run continuously
Speed:
Sets fan speed
Low, Med, High or Auto
Fan Speed:
selected fan
speed
Auto Speed:
Automatically Selects
Best Fan Cooling Speed
Cool Heat
Wait
Fan
Only
Control
Locked
Proximity
Sensor
Filter
Check/Clean
