Wall Controller Installation
25
Wall Controller Installation
Proper Wiring of VRP unit to Wall Controller
Use shielded and stranded CAT 6 cable with twisted pairs to wire the wall controller. Use the wire colors with
the corresponding terminals on the wall controller to the VRP unit as shown in the table below.

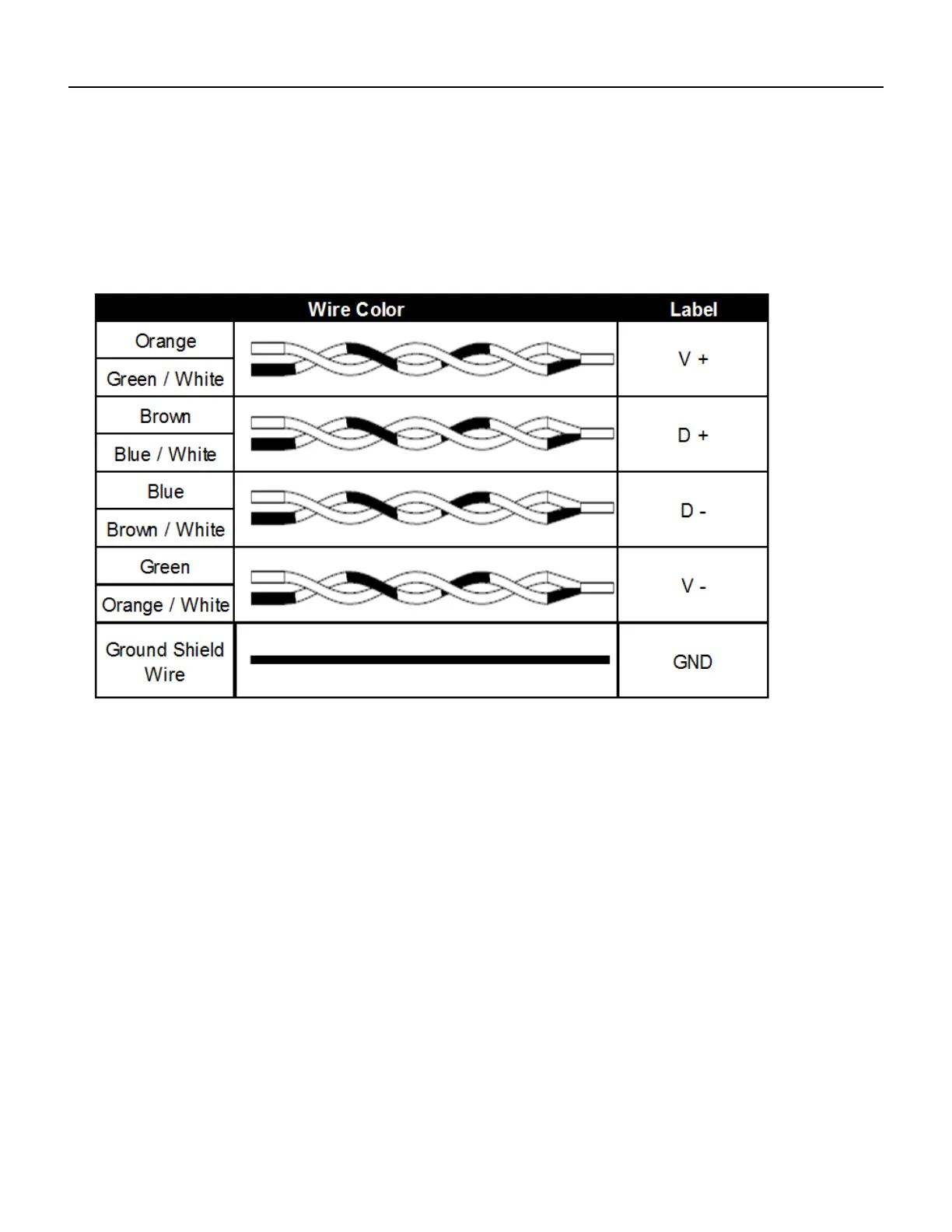

Table shows which wire pairs go with which screw terminal.
