VPDP2 Drain Kit Installation
17
VPDP2 Drain Kit Installation
Note: VRP07 models require installation of the VPDP2 drain kit. Please reference the VPDP2 installation
manual for more detailed instructions.
1) Cut away gasket from the of the base of the inside wall plenum half the length of the drain kit beginning
from the bottom right corner.

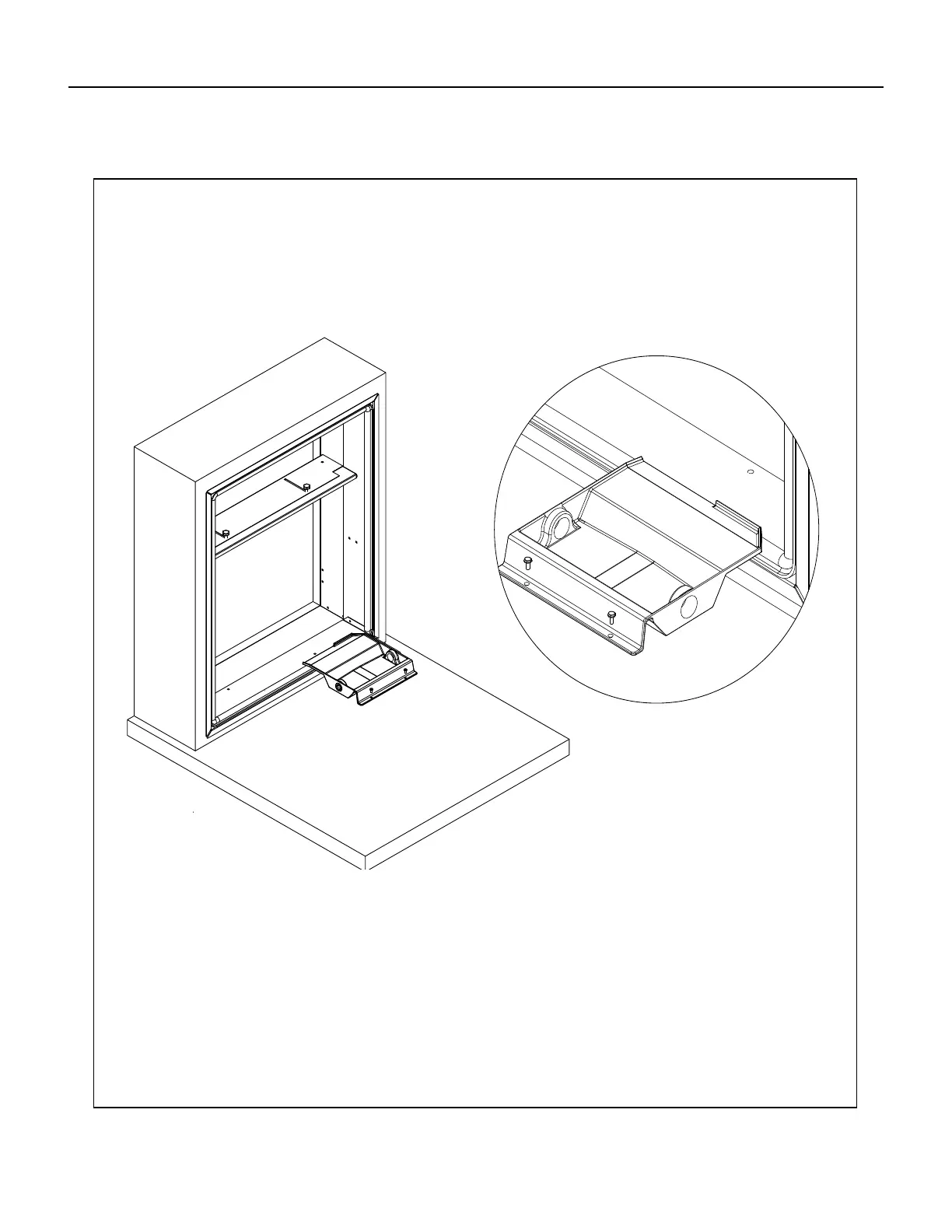

2) Place the VPDP2 where the gasket has been removed as shown above.
3) Ensure that the back lip of the VPDP2 is inserted no deeper than 1.5” into the exterior opening.
4) Secure the VPDP2 to the nished oor or platform.
