INSTALLATION
Electrical Installation
27
Electrical Installation
Electrical Installation

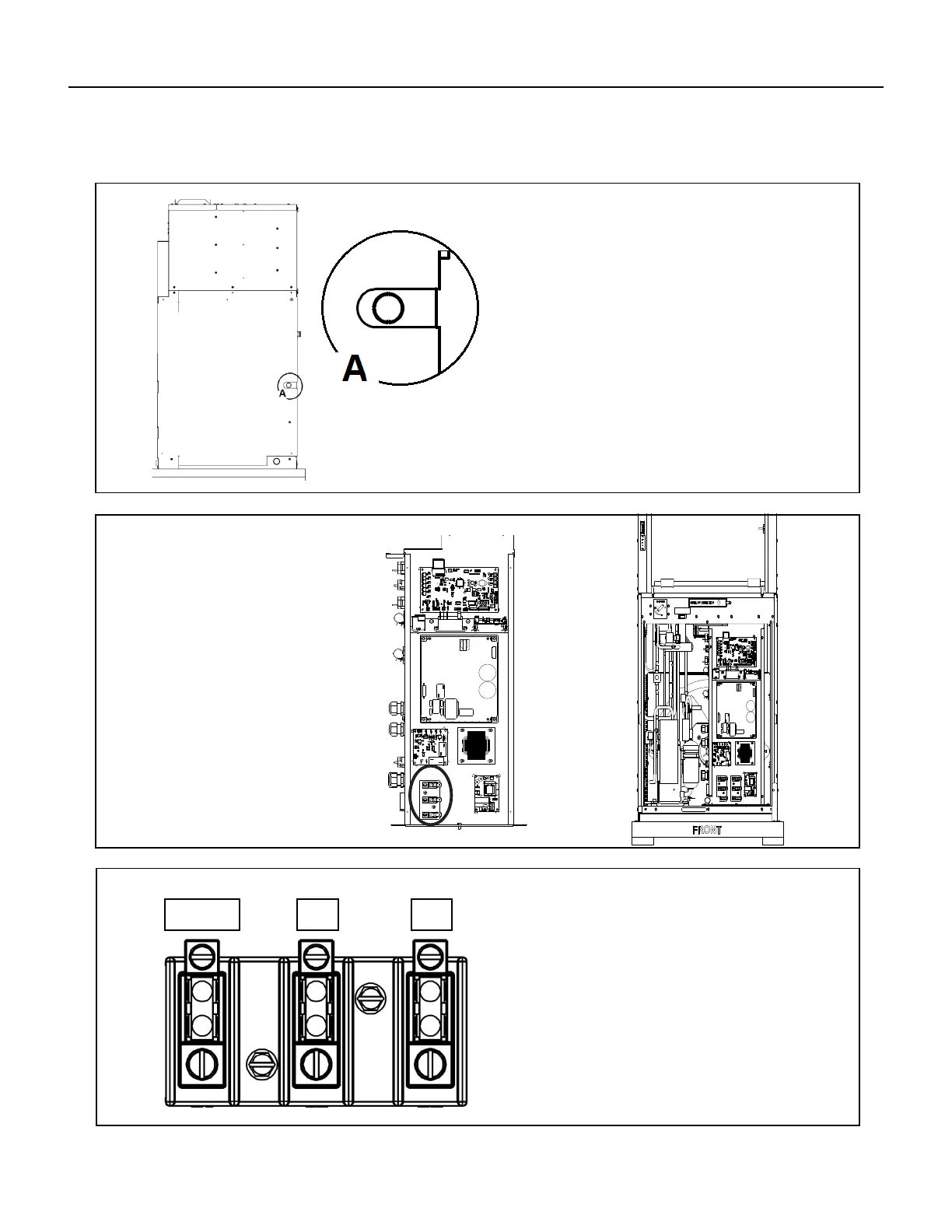

Remove and discard hole knock-out from the side
of the unit (Detail A)
Remove the Electrical Access Panel (Detail B) to
expose the Incoming Power Terminal Block
(Detail C, see below)
B
Ground L1 L2
Insert all wires (Green, Black, Red) through the
punched out hole and fasten wires as follows:
Green to Ground
Black to L1
Red to L2
Remove and discard hole knock-out from
the side of the unit (Detail A)
Remove the front unit panel
to expose the incoming power
terminal block (Detail, see
below)
Insert all wires through the
punched out hole and fasten
wires.
Ground
L1 L2
To Next Page
