5 | Assembly
32 M2320121_en | Installation instructions Pellet boiler PECO
5.7.2 Preparing the boiler for transport and setup (boiler type 25-35)
The following preparations are necessary in order to lift the boiler type 25-35 from the
pallet with the Froling KHV 1400 boiler lifting system and transport it with a forklift or
similar lifting device.

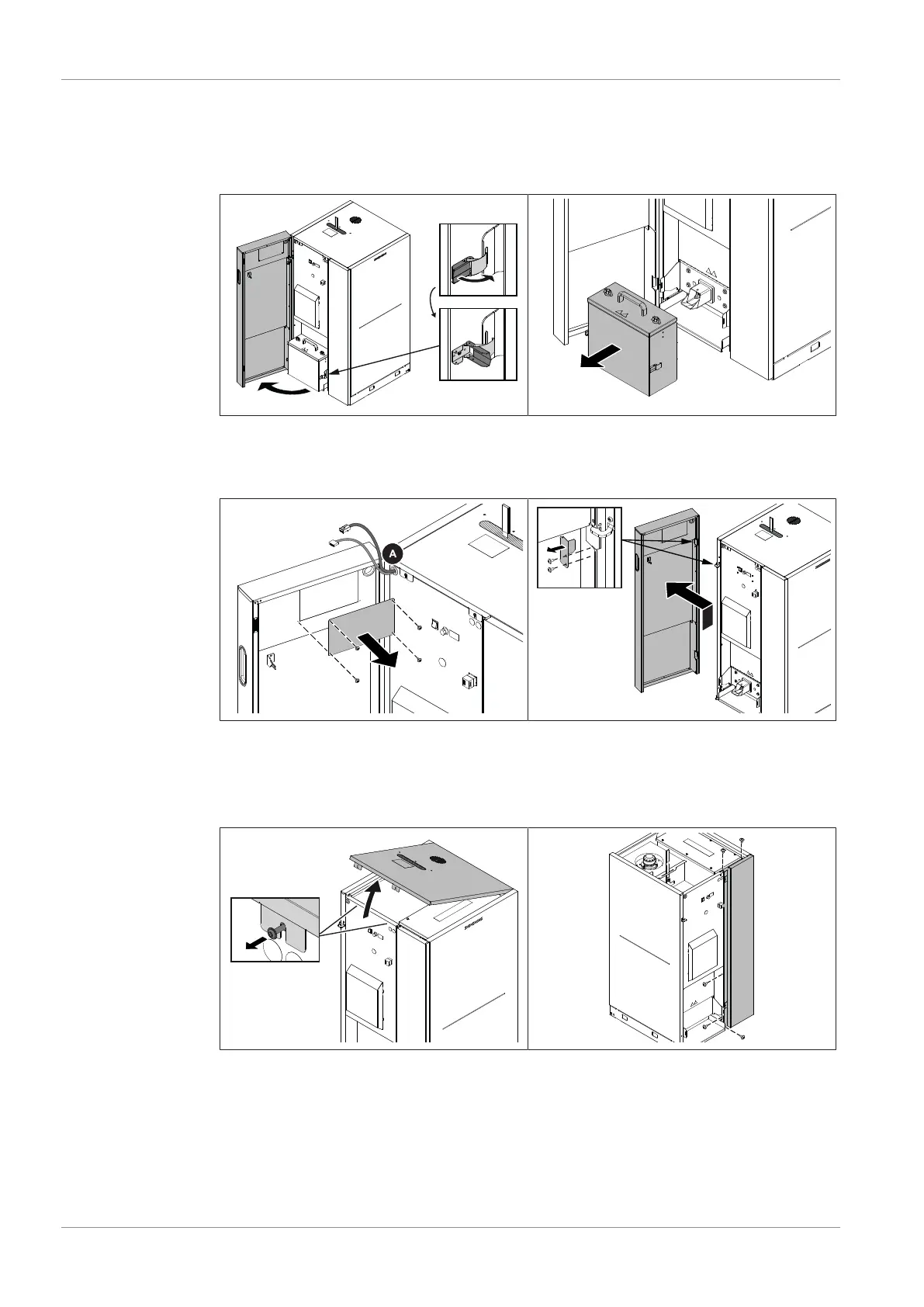

r Open the insulated door
r Release the clamps and remove from the ash container from the boiler
r Remove the cover plate on the inside of the insulated door
r Disconnect both display cables (A) and pull them out of the insulated door
r Remove the cover on the upper hinge and unhinge the insulated door
r Unlock the cover by undoing the retaining screws
r Lift the cover on the front edge slightly and remove it towards the front
r Undo the screws on the front cover plate
r Unlock cover plate to the right and lift off to the front
