2 Technology

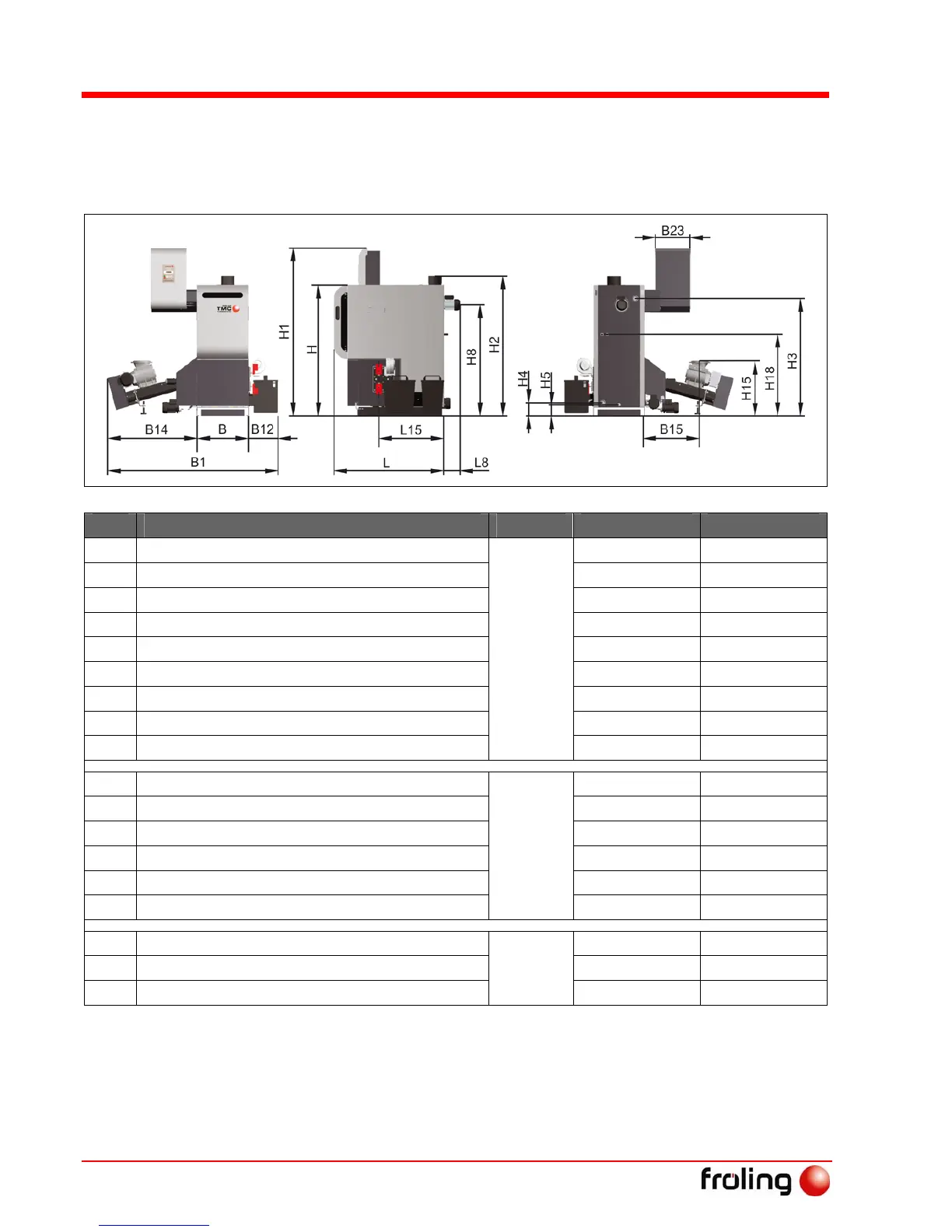

2.1 Turbomatic TMC 28-55 dimensions
Pos. Description Unit TMC 28 / 35 TMC 48 / 55
H Height of boiler 1425 1520
H1 Overall height 1825 1835
H2 Height, flue pipe connection 1525 1630
H3 Height, outfeed connection 1275 1375
H4 Height, return connection 140 140
H5 Height, drain 120 120
H8 Height, induced draught fan connection 1210 1310
H15 Height, gravity shaft connection with BBF
1
/ RV
2
630 / 595 610 / 595
H18 Height, safety battery connection
mm
885 980
B Width of boiler 570 670
B1 Overall width with BBF
1
/ RV
2
1730 / 1815 1810 / 1905
B12 Width, ash container 325 325
B14 Width, stoker unit BBF
1
/ RV
2
835 / 920 830 / 910
B15 Width, gravity shaft connection BBF
1
/ RV
2
615 / 610 605 / 600
B23 Width, switch cabinet small / large
mm
400 / 600 400 / 600
L Length, boiler 1225 1315
L8 Length, induced draught fan 180 180
L15 Length to gravity shaft connection
mm
710 805
1) BBF = burn back flap; 2) RV = rotary valve
