Froling Turbomatic TMC 28-55 User Manual

Technology
Components and connections
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 11
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
M1010108_en
2

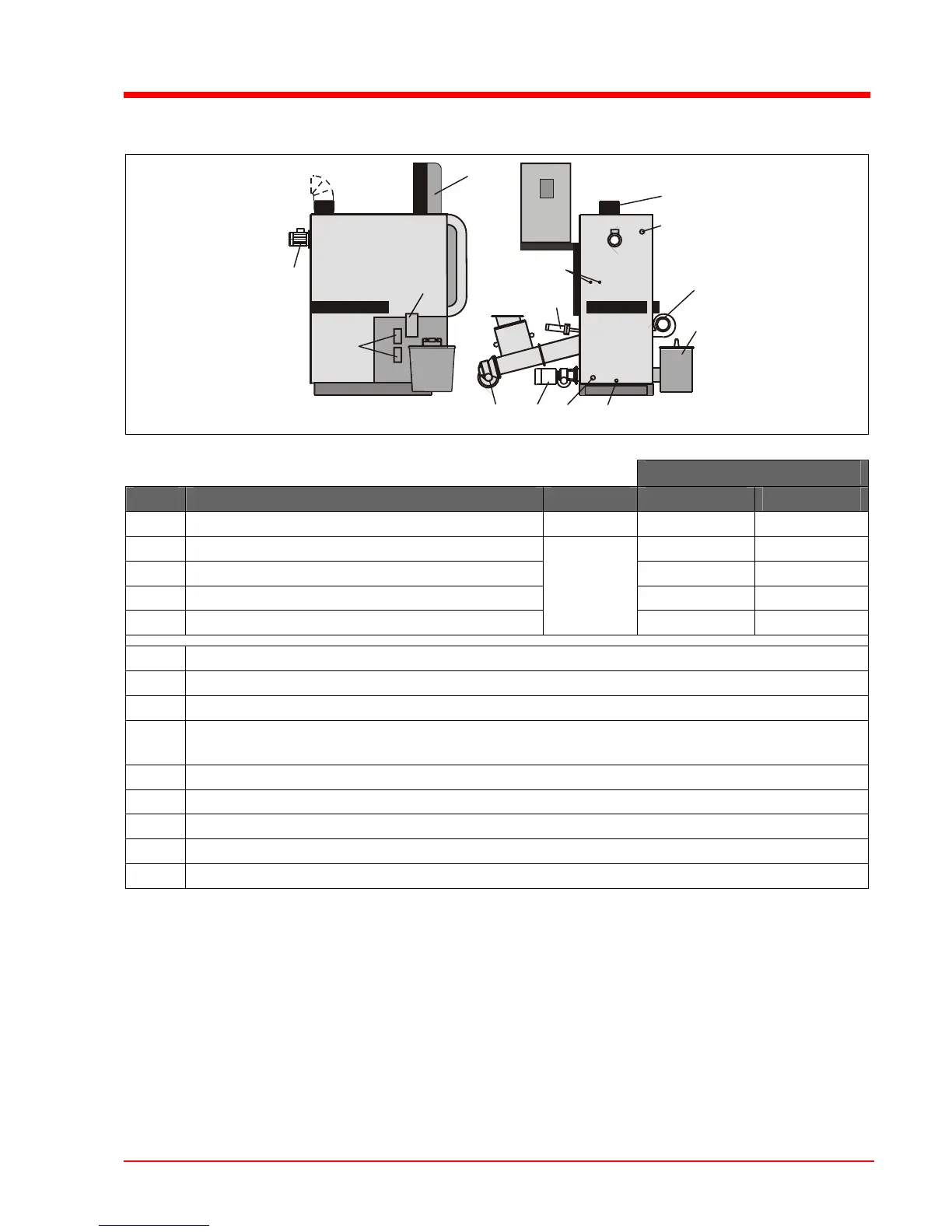

2.2 Components and Connections
7
8
A
B
1
2
C
3
6
4
D
5
E
Turbomatic
Pos. Description Unit 28 / 35 48 / 55
A Flue gas pipe diameter mm 150 150
B Boiler outfeed connection 6/4 6/4
C Connecting the Thermal Discharge Safety Device 1/2 1/2
D Boiler return feed connection 6/4 6/4
E Connection for filling / emptying cock
Inch
1/2 1/2
1 Combustion air blower fan
2 Ash container
3 Automatic ignition
4 Automatic ash removal drive
(optional: automatic heat exchanger ash removal)
5 Stoker drive
6 Switch cabinet with integrated “Lambdatronic H3000” control
7 Induced draught fan
8 Servo-motors for primary and secondary air
9 Tipping grate drive
9
