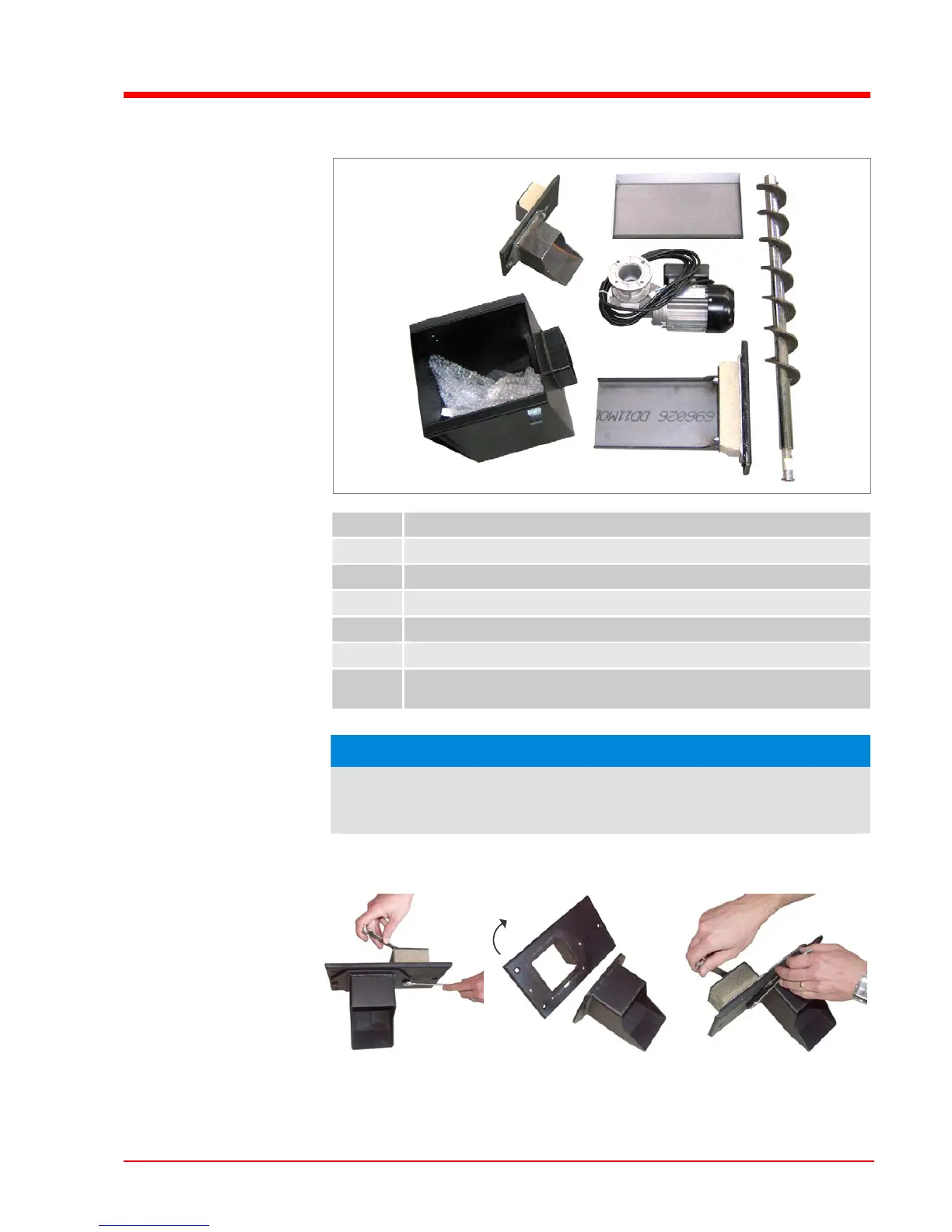

3.3.5 Fitting the automatic heat exchanger ash removal (optional)
A Ash baffle (2x with Turbomatic 48-55)
B Flange with ash plate
C Ash screw
D Ash removal flange for ashcan
E Ashcan
F Geared motor
not
shown
Rubber seal and screw set
NOTICE
The components for assembling the ashcan come delivered on the left hand
side of the boiler. If you want the ashcan on the right hand side the flanges
must be changed round.
Conversion for ashcan on right
U Unscrew 2 hexagonal screws on the ash removal flange
U Turn the flange plate 180°
U Reassemble the ash removal flange
